FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI EIGER 400 2002

RIGHT HAND REAR WHEEL

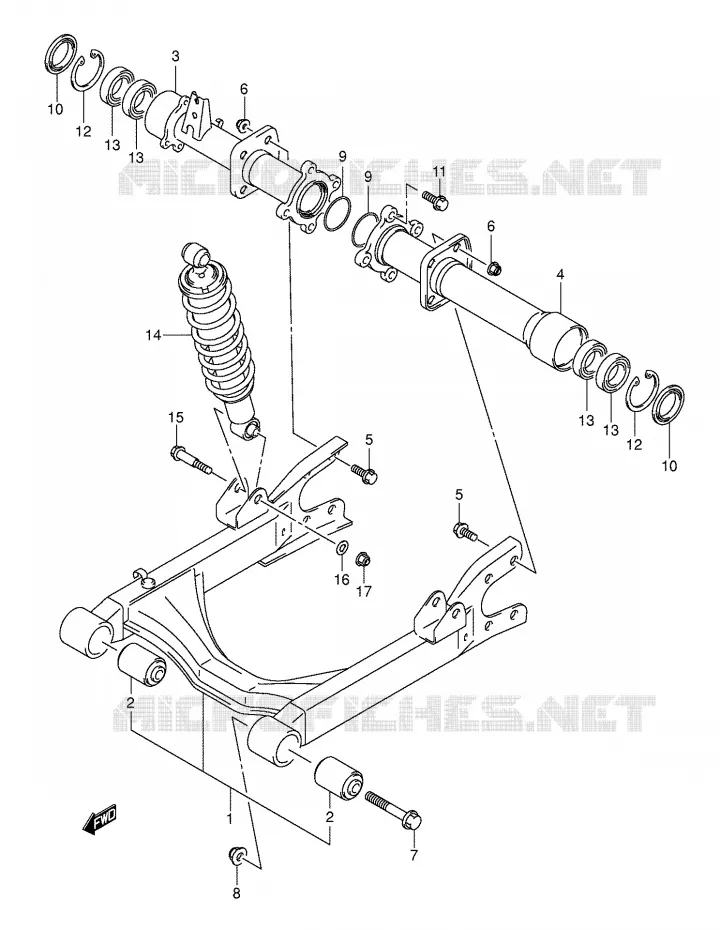

SWINGARM Suzuki QUAD 400 EIGER 2002 LT-A400FK2(E24)
1
SWINGINGARM SET, RR

61100-38870-000  

61100-38871-000
 6110038870000

Unit Price

2
BUSH, RR SWINGINGARM PIVOT

61230-38F10-000  

61230-38F11-000
 6123038F10000

Unit Price

3
HOUSING, RR AXLE, R

61300-38F00-000  

61300-38F10-000
 6130038F00000

Unit Price

4
HOUSING, RR AXLE, L

61400-38F00-000  

61400-38F10-000
 6140038F00000

Unit Price

5
BOLT

01550-10253-000  

01550-1025B-000
 0155010253000

Unit Price

6
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

7
BOLT, RR SWGARM PIVOT
BOLT, PIVOT

09103-12068-000   0910312068000

0910312068000

Unit Price

8
NUT
NUT, PIVOT

09159-12054-000   0915912054000

0915912054000

Unit Price

9
DRIVEN BEVEL P RING
O RING, RR AXLE HOUSING

09280-70005-000   0928070005000

0928070005000

Unit Price

10
SEAL, RR AXLE HSG
SEAL, RR AXLE HOUSING

09283-38022-000   0928338022000

0928338022000

Unit Price

11
BOLT

01550-10303-000  

01550-1030A-000
 0155010303000

Unit Price

12
08331-41559
CIRCLIP

08331-41556-000  

0833141556000
Not available
13
BEARING
BEARING, HUB

08123-60067-000   0812360067000

0812360067000

Unit Price

14
DISCONTINUE
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-38F00-019   6210038F00019

6210038F00019
Not available
15
BOLT 10X48<br />BOLT, UPPER
BOLT 10X48
BOLT, UPPER

09103-10126-000   0910310126000

0910310126000

Unit Price

16
WASHER<br />WASHER, UPPER, OUTER
WASHER
WASHER, UPPER, OUTER

09160-10501-000   0916010501000

0916010501000

Unit Price

17
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki EIGER 400 4WD AUTOMATIC of EIGER. Let us know if you have any questions.

Genuine parts for Suzuki 400 EIGER 2002

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 EIGER 2002

Select your Suzuki 2002 model

400 EIGER 2002 LT-A400FK2(E24)

EIGER 400 4WD AUTOMATIC

Suzuki EIGER

Displacement: 400 cc
Year: 2002
Model code LT-A400FK2(E24)
