DRIVESHAFT

GEAR SHIFTING ASSY FOR SUZUKI EIGER 400 2003

FINAL BEVEL GEAR (FRONT)(MODEL K3 / K4) REFER TO FIG.24A(D-11) FOR MODEL K5/K6 P24

Item numbers

DISCONTINUE
CAM, GEAR SHIFT REVERSE

25321-38F10-000 2532138F10000

Not available

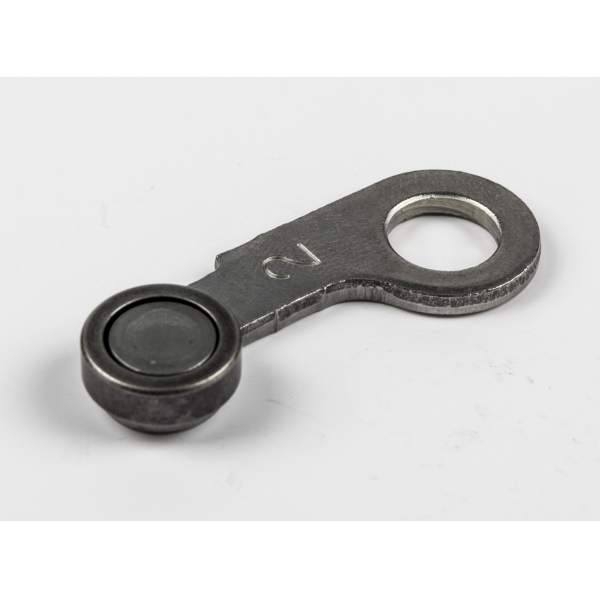

STOPPER, GEAR SHIFT CAM
STOPPER, SHIFT CAM

25350-26D01-000 2535026D01000

$15,97

Unit Price

SPRING, GEAR SHIFT CAM STOPPER
SPRING, GR SHIFT CAM

25355-38F00-000 2535538F00000

$5,97

Unit Price

SUPPORT, CAM STOPPER ARM
SUPPORT, CAM STOPPER

25356-12C00-000 2535612C00000

$16,97

Unit Price

DISCONTINUE
PLATE, GR SHIFT CAM

25381-38F00-000 2538138F00000

Not available

SHAFT, GEAR SHIFT FORK

25411-18900-000 2541118900000

$17,97

Unit Price

DISCONTINUE
SHAFT, SUB T/M GEAR SHIFT

25510-38F00-000 2551038F00000

Not available

FORK, GEAR SHIFT

29510-38F10-000 2951038F10000

$88,97

Unit Price

FORK, GEAR SHIFT
FORK, SHIFT REVERSE

29510-38F10-000 2951038F10000

$88,97

Unit Price

DISCONTINUE
CAM, GEAR SHIFT

29611-38F10-000 2961138F10000

Not available

SHAFT, GEAR SHIFT

29620-38F10-000 2962038F10000

Not available

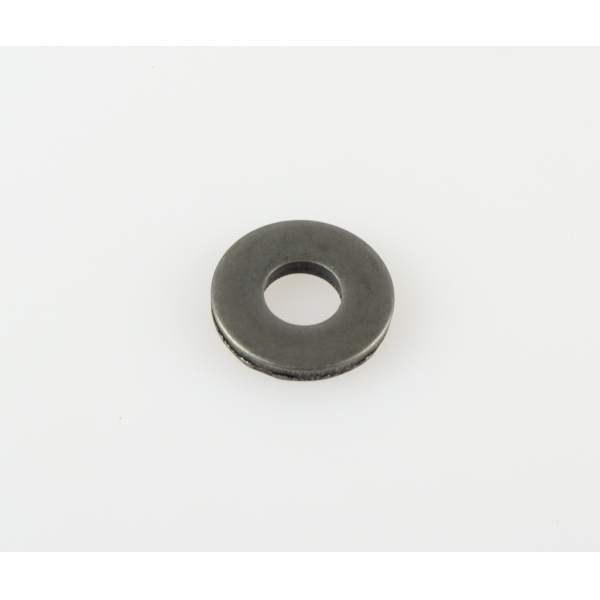

WASHER(6.5X16X2.3)
WASHER, SPRING STOPPER

09160-06022-000 0916006022000

$2,97

Unit Price

WASHER, THRUST
WASHER, GR SHIFT SHAFT

09181-12167-000 0918112167000

$4,97

Unit Price

SHIM(20X28X0.5)
WASHER, SHIFT CAM PLATE

09181-20158-000 0918120158000

$4,97

Unit Price

OIL SEAL
SEAL, T/M GEAR SHIFT OIL

09285-12006-000 0928512006000

$10,97

Unit Price

CIRCLIP
C-RING, T/M CAM STOP

09380-25012-000 0938025012000

$3,97

Unit Price

BOLT

01550-06253-000

01550-0625A-000

$3,97

Unit Price

THRUST WASHER
WASHER, CAM STOPPER

08211-06141-000 0821106141000

$3,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

SPRING, SUB T/M SHIFT CAM

29612-38F00-000 2961238F00000

$4,97

Unit Price

SPRING, SUB T/M SHIFT CAM
SPRING, REVERSE SHIFT CAM

29612-38F00-000 2961238F00000

$4,97

Unit Price

SHIM, 25X32X1
WASHER, SHIFT CAM SPRING

09181-25139-000 0918125139000

$5,97

Unit Price

CIRCLIP

08331-31256-000

08331-31259-000

$3,97

Unit Price

WASHER
WASHER, SHIFT SHAFT

09181-20251-000 0918120251000

$5,97

Unit Price

25A

BEARING(20X35X2)
BEARING, SUB T/M

09263-20014-000 0926320014000

$29,97

Unit Price

WASHER, 5TH DRIVE GEA
WASHER, SHIFT SHAFT

09181-25167-000 0918125167000

$5,97

Unit Price

ARM, SELECT

25360-38F00-000 2536038F00000

$57,97

Unit Price

BOLT
BOLT, SHIFT LEVER

01550-0620A-000 015500620A000

$3,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-38F00-000 3772038F00000

$195,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-05163-000

07120-0516A-000

$4,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki EIGER 400 4WD AUTOMATIC of EIGER. Let us know if you have any questions.
