Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (MODEL K5 P24) REFER TO FIG.31B(F- 7) FOR MODEL K5 P17

HEADLIGHT (MODEL K5 P17) FOR SUZUKI EIGER 400 2004

HEADLIGHT (MODEL K6 / K7)

Item numbers

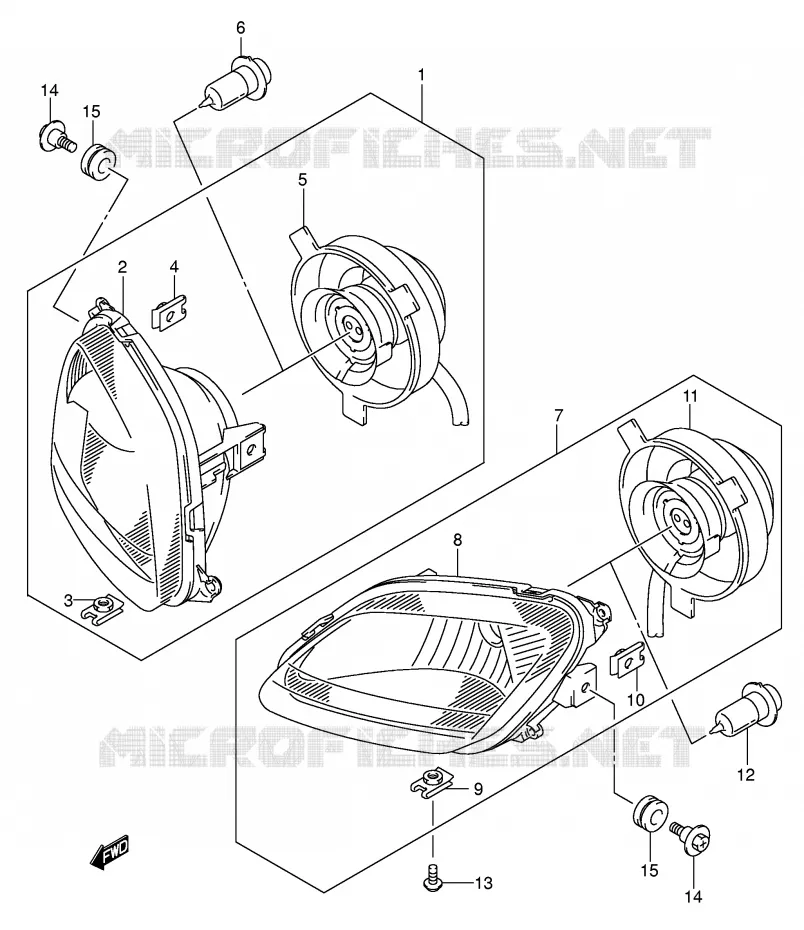

HEADLIGHT (MODEL K5 P17) Suzuki QUAD 400 EIGER 2004 LT-A400FK4(P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
1
DISCONTINUE

35100-05G30-999  

3510005G30999
Not available
2
UNIT, R(BLACK)
UNIT, RH

35121-05G10-000   3512105G10000

3512105G10000

Unit Price

3
NUT (M5)

35157-05G50-000   3515705G50000

3515705G50000

Unit Price

4
NUT (M6)

35157-05G90-000   3515705G90000

3515705G90000

Unit Price

5
CORD ASSY, L
CORD ASSY

35171-05GL0-000   3517105GL0000

3517105GL0000

Unit Price

6
BULB(12V1.7W, WB372, T7)
BULB (14V, 30/30W)

09471-12097-000  

0947112097000
Not available
7
DISCONTINUE
HEADLAMP ASSY, LH

35300-05G10-999   3530005G10999

3530005G10999
Not available
8
UNIT, L(BLACK)
UNIT, LH

35321-05G10-000   3532105G10000

3532105G10000

Unit Price

9
NUT (M5)

35157-05G50-000   3515705G50000

3515705G50000

Unit Price

10
NUT (M6)

35157-05G90-000   3515705G90000

3515705G90000

Unit Price

11
CORD ASSY, L
CORD ASSY

35171-05GL0-000   3517105GL0000

3517105GL0000

Unit Price

12
BULB(12V1.7W, WB372, T7)
BULB (14V, 30/30W)

09471-12097-000  

0947112097000
Not available
13
SCREW(5X16)
SCREW, ADJUST (5X16)

09136-05046-000   0913605046000

0913605046000

Unit Price

14
SCREW
SCREW, HEADLAMP

09139-06118-000   0913906118000

0913906118000

Unit Price

15
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL K5 P17) of your Suzuki EIGER 400 4WD AUTOMATIC of EIGER. Let us know if you have any questions.
