CYLINDER

CASING FOR SUZUKI EIGER 400 2007

CASING

Item numbers

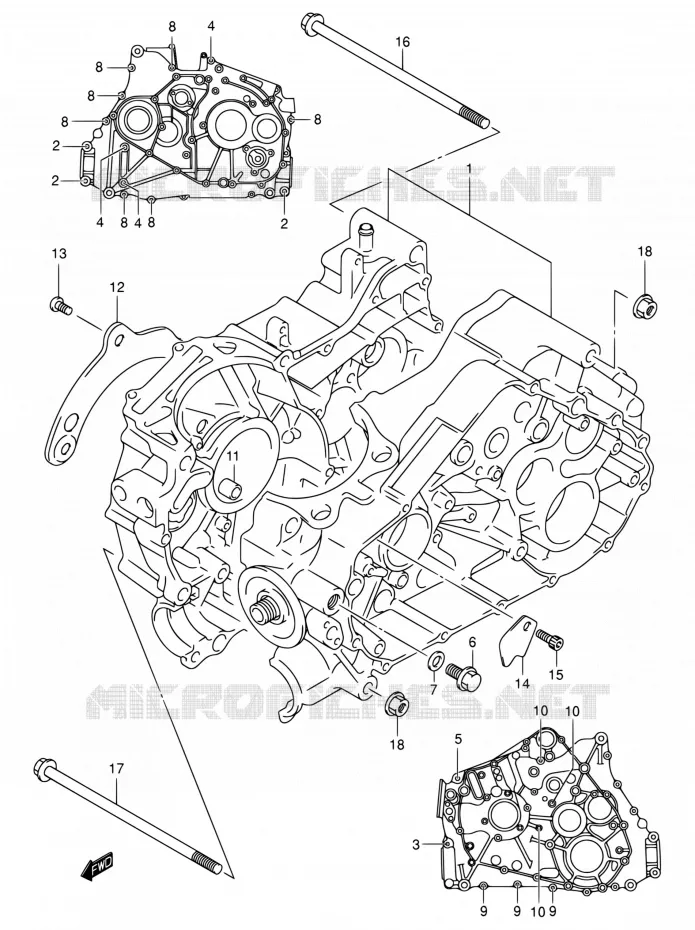

CASING Suzuki QUAD 400 EIGER 2007 LT-A400F K7 (P03,P28,P33)
1
2
2
2
3
4
4
4
5
6
6
7
8
8
8
8
8
8
9
9
9
10
10
10
11
12
13
14
15
16
17
18
18
1
CRANKCASE SET

11302-38811-000   1130238811000

1130238811000
Not available
2
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

3
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

4
.BOLT (8X85)

09103-08300-000   0910308300000

0910308300000

Unit Price

5
.BOLT (8X60)

09103-08345-000   0910308345000

0910308345000
Not available
6
PLUG, PRESSURE SW
.PLUG, OIL PRESSURE

09247-14015-000   0924714015000

0924714015000

Unit Price

7
GASKET,13.8X18.8X0.4<br />.GASKET, OIL PRESSURE PLUG
GASKET, 13.8X18.8X0.4
.GASKET, OIL PRESSURE PLUG

09168-14002-000   0916814002000

0916814002000

Unit Price

8
BOLT

01547-06453-000  

01547-0645B-000
 0154706453000

Unit Price

9
BOLT

01547-06453-000  

01547-0645B-000
 0154706453000

Unit Price

10
BOLT

01547-06703-000  

01547-0670A-000
 0154706703000

Unit Price

11
PIN<br />.PIN, CRANKCASE
PIN
.PIN, CRANKCASE

04211-13189-000   0421113189000

0421113189000

Unit Price

12
DISCONTINUE
PLATE, OIL GUIDE

11317-38F00-000   1131738F00000

1131738F00000
Not available
13
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

14
PLATE, OIL GUIDE, L
PLATE, OIL GUIDE LH

11323-38F00-000   1132338F00000

1132338F00000

Unit Price

15
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

16
BOLT, ENG MTG, L195
BOLT (L:195)

09103-10118-000   0910310118000

0910310118000

Unit Price

17
BOLT 10X180
BOLT (L:180)

09103-10053-000   0910310053000

0910310053000

Unit Price

18
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki EIGER 400 4WD AUTOMATIC of EIGER. Let us know if you have any questions.
