TRANSMISSION (2)

DRIVESHAFT FOR SUZUKI EIGER 400 2007

GEAR SHIFTING ASSY

Item numbers

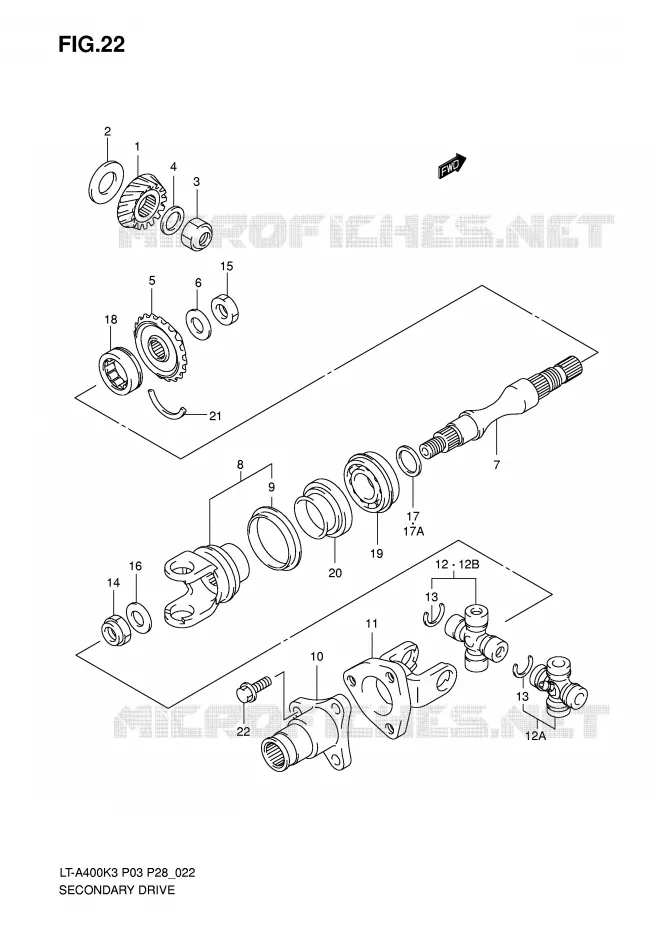

DRIVESHAFT Suzuki QUAD 400 EIGER 2007 LT-A400K7(P3/P28)
1
2
2
3
4
5
6
7
8
9
10
11
11
12
12B
12A
13
13
14
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17A
18
19
20
21
22
1
GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-38F00-000   2491138F00000

2491138F00000

Unit Price

2
SHIM SET, SEC DRIVE BEVEL
SHIM SET, SEC DRIVE BEVEL GR

24935-03811-000   2493503811000

2493503811000

Unit Price

3
NUT 20MM
NUT, SEC DRIVE BEVEL GR

09140-20012-000   0914020012000

0914020012000

Unit Price

4
WASHER<br />WASHER, SEC DRIVE BEVEL GR
WASHER
WASHER, SEC DRIVE BEVEL GR

09181-20223-000   0918120223000

0918120223000

Unit Price

5
GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-38F00-000   2492138F00000

2492138F00000

Unit Price

6
WASHER
WASHER, SEC DRIVEN GEAR

08211-22365-000   0821122365000

0821122365000

Unit Price

7
DISCONTINUE
SHAFT, SEC DRIVEN OUTPUT RR

24971-38F00-000   2497138F00000

2497138F00000
Not available
8
YOKE, RR DRIVE OUTPUT

27130-03G00-000   2713003G00000

2713003G00000

Unit Price

9
PLATE
PLATE, OUTPUT

27592-38F00-000   2759238F00000

2759238F00000

Unit Price

10
SHAFT, PROPELLER RR

27150-38F00-000   2715038F00000

2715038F00000

Unit Price

11
YOKE, PROP SHAFT JOINT
YOKE, PROP SHAFT JOINT RR

27161-38F11-000   2716138F11000

2716138F11000

Unit Price

12
JOINT SET, UNIVERSAL

27200-19810-000  

27200-19811-000
 2720019810000

Unit Price

12A
JOINT SET, UNIVERSAL

27200-38810-000   2720038810000

2720038810000

Unit Price

12B
JOINT SET, UNIVERSAL

27200-19810-000  

27200-19811-000
 2720019810000

Unit Price

13
CIRCLIP
CIRCLIP, UNIVERSAL OUTPUT RR

09380-20016-000   0938020016000

0938020016000

Unit Price

14
NUT
NUT, REAR DRIVE OUTPUT YOKE

09159-16003-000   0915916003000

0915916003000

Unit Price

15
NUT, PRIMARY SHAFT
NUT, SEC DRIVEN GEAR

09159-22005-000   0915922005000

0915922005000

Unit Price

16
WASHER, SEC DRIVE**S1
WASHER, REAR OUTPUT YOKE

09160-16026-000   0916016026000

0916016026000

Unit Price

17
SHIM(25X34X0.6)
SHIM, SEC DRIVEN

09181-25051-000   0918125051000

0918125051000

Unit Price

17
SHIM(25X34X0.65)
SHIM, SEC DRIVEN

09181-25052-000   0918125052000

0918125052000

Unit Price

17
SHIM(0.7)

09181-25053-000  

09181-25160-000
 0918125053000

Unit Price

17
SHIM(25X34X0.75)
SHIM, SEC DRIVEN

09181-25054-000   0918125054000

0918125054000

Unit Price

17
SHIM(0.8)

09181-25055-000  

09181-25162-000
 0918125055000

Unit Price

17
SHIM(25X34X0.85)
SHIM, SEC DRIVEN

09181-25056-000   0918125056000

0918125056000

Unit Price

17
SHIM(0.9)

09181-25057-000  

09181-25164-000
 0918125057000

Unit Price

17
SHIM(25X34X0.95)
SHIM, SEC DRIVEN

09181-25058-000   0918125058000

0918125058000

Unit Price

17
WASHER, 5TH DRIVE GEA

09181-25059-000  

09181-25167-000
 0918125059000

Unit Price

17
SHIM(25X34X1.05)
SHIM, SEC DRIVEN

09181-25060-000   0918125060000

0918125060000

Unit Price

17
SHIM(25X34X1.1)
SHIM, SEC DRIVEN

09181-25061-000   0918125061000

0918125061000

Unit Price

17
SHIM(25X34X1.15)
SHIM, SEC DRIVEN

09181-25062-000   0918125062000

0918125062000

Unit Price

17
SHIM(25X34X1.2)
SHIM, SEC DRIVEN

09181-25063-000   0918125063000

0918125063000

Unit Price

17A
SHIM SET, SEC DRIVEN BEVEL
SHIM, SEC DRIVEN

24945-03811-000   2494503811000

2494503811000

Unit Price

18
BEARING
BRG, SEC DRIVEN GEAR, M

09263-30050-000   0926330050000

0926330050000

Unit Price

19
BEARING, REAR OUTPUT
BRG, SEC DRIVEN OUTPUT SFT RR

09267-25014-000   0926725014000

0926725014000

Unit Price

20
OIL SEAL 34X52X14
OIL SEAL, DRIVEN SFT, RR

09283-34008-000   0928334008000

0928334008000

Unit Price

21
C RING
RING, SEC DRIVEN BRG, M

09390-50002-000   0939050002000

0939050002000

Unit Price

22
BOLT

01550-10203-000  

0155010203000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki EIGER 400 2WD AUTOMATIC of EIGER. Let us know if you have any questions.

Genuine parts for Suzuki 400 EIGER 2007
