HEADLIGHT (MODEL K5 P17) REFER TO FIG.31C(F- 5) FOR MODEL K6/K7

HEADLIGHT (MODEL K6 / K7) FOR SUZUKI EIGER 400 2007

TAIL LIGHT

Item numbers

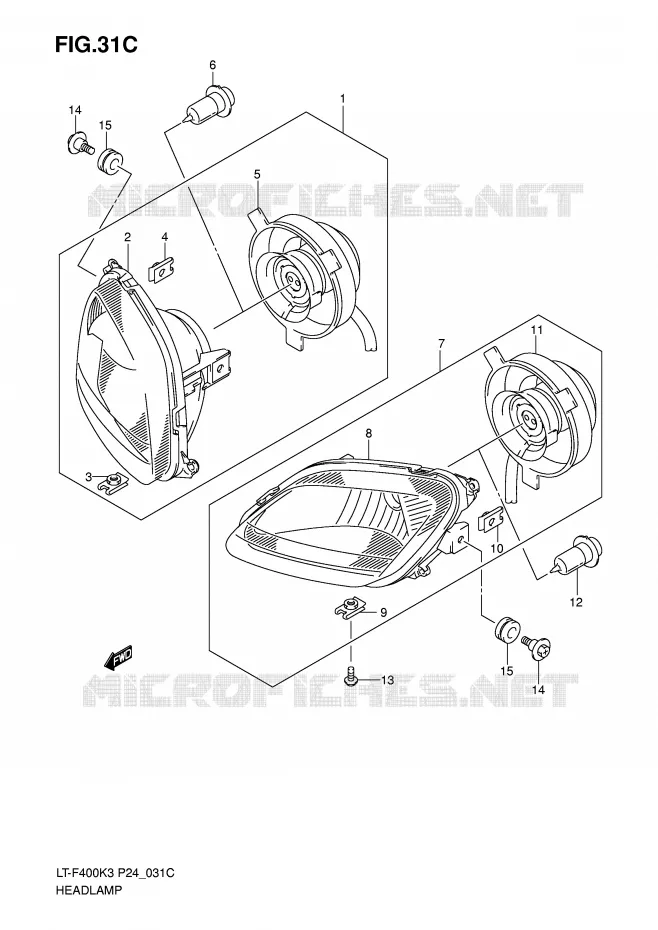

HEADLIGHT (MODEL K6/K7) Suzuki QUAD 400 EIGER 2007 LT-F400K7(P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
1
HEADLAMP ASSY, R
HEADLAMP ASSY, RH

35100-05G60-999   3510005G60999

3510005G60999

Unit Price

2
UNIT, R
UNIT, RH

35121-03G00-000   3512103G00000

3512103G00000

Unit Price

3
NUT (M5)

35157-05G50-000   3515705G50000

3515705G50000

Unit Price

4
NUT (M6)

35157-05G90-000   3515705G90000

3515705G90000

Unit Price

5
CORD ASSY, R
CORD ASSY

35171-05GR0-000   3517105GR0000

3517105GR0000

Unit Price

6
BULB(14V30/30W, BF130-03800A)
BULB (12V, 30/30W)

09471-12093-000  

0947112093000
Not available
7
DISCONTINUE
HEADLAMP ASSY, LH

35300-05G60-999   3530005G60999

3530005G60999
Not available
8
UNIT, L
UNIT, LH

35321-03G00-000   3532103G00000

3532103G00000

Unit Price

9
NUT (M5)

35157-05G50-000   3515705G50000

3515705G50000

Unit Price

10
NUT (M6)

35157-05G90-000   3515705G90000

3515705G90000

Unit Price

11
CORD ASSY, L
CORD ASSY

35171-05GL0-000   3517105GL0000

3517105GL0000

Unit Price

12
BULB(14V30/30W, BF130-03800A)
BULB (12V, 30/30W)

09471-12093-000  

0947112093000
Not available
13
SCREW(5X16)
SCREW, ADJUST (5X16)

09136-05046-000   0913605046000

0913605046000

Unit Price

14
SCREW
SCREW, HEADLAMP

09139-06118-000   0913906118000

0913906118000

Unit Price

15
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL K6/K7) of your Suzuki EIGER 400 2WD of EIGER. Let us know if you have any questions.
