SWINGARM FOR SUZUKI EIGER 400 2012

STEERING LINKAGE - HUB (MODEL K5 / K6 / K7)

Item numbers

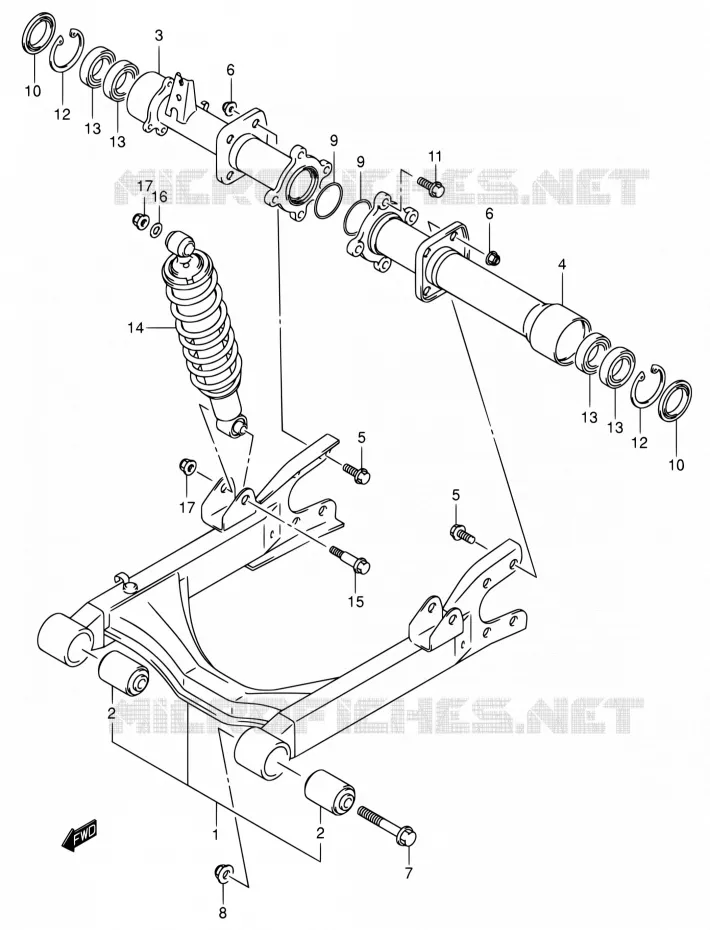

SWINGARM Suzuki QUAD 400 EIGER 2012 LT-A400F K7 (P17,P24)
1
2
2
3
4
5
5
6
6
7
8
9
9
10
10
11
12
12
13
13
13
13
14
15
16
17
17
1
SWINGINGARM SET, RR

61100-38871-000  

61101-27850-000
 6110038871000

Unit Price

2
BUSH, RR SWINGINGARM PIVOT
.BUSH, PIVOT

61230-38F11-000   6123038F11000

6123038F11000

Unit Price

3
HOUSING, RR AXLE, R
HOUSING, RR AXLE RH

61300-38F10-000   6130038F10000

6130038F10000

Unit Price

4
HOUSING, RR AXLE, L
HOUSING, RR AXLE LH

61400-38F10-000   6140038F10000

6140038F10000

Unit Price

5
BOLT 10X20
BOLT, RR SWGARM BRACKET

09103-10216-000   0910310216000

0910310216000

Unit Price

6
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

7
BOLT, RR SWGARM PIVOT
BOLT, PIVOT

09103-12068-000   0910312068000

0910312068000

Unit Price

8
NUT
NUT, PIVOT

09159-12054-000   0915912054000

0915912054000

Unit Price

9
DRIVEN BEVEL P RING
O RING, RR AXLE HOUSING

09280-70005-000   0928070005000

0928070005000

Unit Price

10
SEAL, RR AXLE HSG
SEAL, RR AXLE HOUSING

09283-38022-000   0928338022000

0928338022000

Unit Price

11
09103-10421
BOLT, AXLE HOUSING

09103-10410-000   0910310410000

0910310410000
Not available
12
CIRCLIP

08331-41559-000  

0833141559000
Not available
13
BEARING
BEARING, HUB

08123-60067-000   0812360067000

0812360067000

Unit Price

14
ABSORBER ASSY, R
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-38FA0-019   6210038FA0019

6210038FA0019

Unit Price

15
BOLT 10X48<br />BOLT, UPPER
BOLT 10X48
BOLT, UPPER

09103-10126-000   0910310126000

0910310126000

Unit Price

16
WASHER<br />WASHER, UPPER, OUTER
WASHER
WASHER, UPPER, OUTER

09160-10501-000   0916010501000

0916010501000

Unit Price

17
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of EIGER. Let us know if you have any questions.
