Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (2)

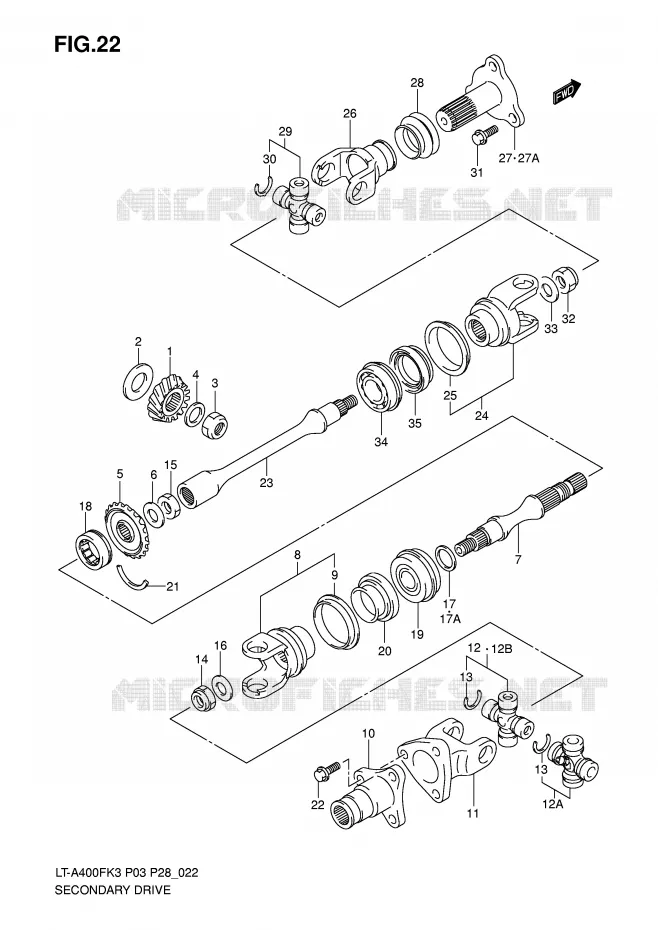

DRIVESHAFT FOR SUZUKI EIGER 400 2012

GEAR SHIFTING ASSY

Item numbers

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-38F00-000 2491138F00000

$177,97

Unit Price

SHIM SET, SEC DRIVE BEVEL
SHIM SET, SEC DRIVE BEVEL GEAR

24935-03811-000 2493503811000

$137,97

Unit Price

NUT 20MM
NUT, SEC DRIVE BEVEL GEAR

09140-20012-000 0914020012000

$5,97

Unit Price

WASHER
WASHER, SEC DRIVE BEVEL GEAR

09181-20223-000 0918120223000

$4,97

Unit Price

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-38F00-000 2492138F00000

$190,97

Unit Price

WASHER
WASHER, SEC DRIVEN GEAR

08211-22365-000 0821122365000

$7,97

Unit Price

DISCONTINUE
SHAFT, SEC DRIVEN OUTPUT REAR

24971-38F00-000 2497138F00000

Not available

YOKE, RR DRIVE OUTPUT
YOKE, REAR DRIVE OUTPUT

27130-03G00-000 2713003G00000

$179,97

Unit Price

PLATE
PLATE, OUTPUT

27592-38F00-000 2759238F00000

$14,97

Unit Price

SHAFT, PROPELLER RR
SHAFT, PROPELLER REAR

27150-38F00-000 2715038F00000

$231,97

Unit Price

YOKE, PROP SHAFT JOINT
YOKE, PROP SHAFT JOINT REAR

27161-38F11-000 2716138F11000

$452,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$82,97

Unit Price

12A

JOINT SET, UNIVERSAL

27200-38810-000 2720038810000

$122,97

Unit Price

12B

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$82,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

NUT
NUT, REAR DRIVE OUTPUT YOKE

09159-16003-000 0915916003000

$5,97

Unit Price

NUT, PRIMARY SHAFT
NUT, SEC DRIVEN GEAR

09159-22005-000 0915922005000

$37,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, REAR OUTPUT YOKE

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM(25X34X0.6)
SHIM, SEC DRIVEN

09181-25051-000 0918125051000

$4,97

Unit Price

SHIM(25X34X0.65)
SHIM, SEC DRIVEN

09181-25052-000 0918125052000

$4,97

Unit Price

SHIM(0.7)

09181-25053-000

09181-25160-000

$4,97

Unit Price

SHIM(25X34X0.75)
SHIM, SEC DRIVEN

09181-25054-000 0918125054000

$4,97

Unit Price

SHIM(0.8)

09181-25055-000

09181-25162-000

$4,97

Unit Price

SHIM(25X34X0.85)
SHIM, SEC DRIVEN

09181-25056-000 0918125056000

$4,97

Unit Price

SHIM(0.9)

09181-25057-000

09181-25164-000

$4,97

Unit Price

SHIM(25X34X0.95)
SHIM, SEC DRIVEN

09181-25058-000 0918125058000

$4,97

Unit Price

WASHER, 5TH DRIVE GEA

09181-25059-000

09181-25167-000

$5,97

Unit Price

SHIM(25X34X1.05)
SHIM, SEC DRIVEN

09181-25060-000 0918125060000

$4,97

Unit Price

SHIM(25X34X1.1)
SHIM, SEC DRIVEN

09181-25061-000 0918125061000

$4,97

Unit Price

SHIM(25X34X1.15)
SHIM, SEC DRIVEN

09181-25062-000 0918125062000

$4,97

Unit Price

SHIM(25X34X1.2)
SHIM, SEC DRIVEN

09181-25063-000 0918125063000

$4,97

Unit Price

17A

SHIM SET, SEC DRIVEN BEVEL
SHIM, SEC DRIVEN

24945-03811-000 2494503811000

$111,97

Unit Price

BEARING
BEARING, SEC DRIVEN GEAR M

09263-30050-000 0926330050000

$71,97

Unit Price

BEARING, REAR OUTPUT
BEARING, SEC DRIVEN OUTPUT SHAFT REAR

09267-25014-000 0926725014000

$127,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, DRIVEN SHAFT REAR

09283-34008-000 0928334008000

$32,97

Unit Price

C RING
RING, SEC DRIVEN BEARING M

09390-50002-000 0939050002000

$4,97

Unit Price

BOLT
BOLT, PROP SHAFT REAR

01550-1020A-000 015501020A000

$4,97

Unit Price

DISCONTINUE
SHAFT, SEC DRIVEN OUTPUT FRONT

24961-38F00-000 2496138F00000

Not available

YOKE, RR DRIVE OUTPUT
YOKE, FRONT DRIVE OUTPUT

27130-03G00-000 2713003G00000

$179,97

Unit Price

PLATE
PLATE, OUTPUT YOKE

27592-38F00-000 2759238F00000

$14,97

Unit Price

YOKE, PROP SHAFT JOINT
YOKE, PROP SHAFT FRONT

27140-03G00-000 2714003G00000

$166,97

Unit Price

DISCONTINUE
SHAFT, PROPELLER

27151-38F50-000 2715138F50000

Not available

27A

DISCONTINUE
SHAFT, PROPELLER

27150-38F60-000 2715038F60000

Not available

BOOT, PROPELLER SHAFT

27153-03G00-000 2715303G00000

$20,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$82,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

BOLT
BOLT (10X20)

09103-10310-000 0910310310000

$5,97

Unit Price

NUT
NUT, FRONT DRIVE YOKE

09159-16003-000 0915916003000

$5,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, FRONT DRIVE YOKE

09160-16026-000 0916016026000

$6,97

Unit Price

BEARING
BEARING, SEC DRIVEN FRONT

09262-25131-000 0926225131000

$63,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, FRONT

09283-34008-000 0928334008000

$32,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of EIGER. Let us know if you have any questions.
