Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ELECTRICAL (MODEL K8 / K9) REFER TO FIG.27A(E- 7) FOR MODEL L0

ELECTRICAL (MODEL L0) FOR SUZUKI KINGQUAD 400 2009

BATTERY (MODEL K8 / K9) REFER TO FIG.28A(E- 9) FOR MODEL L0

Item numbers

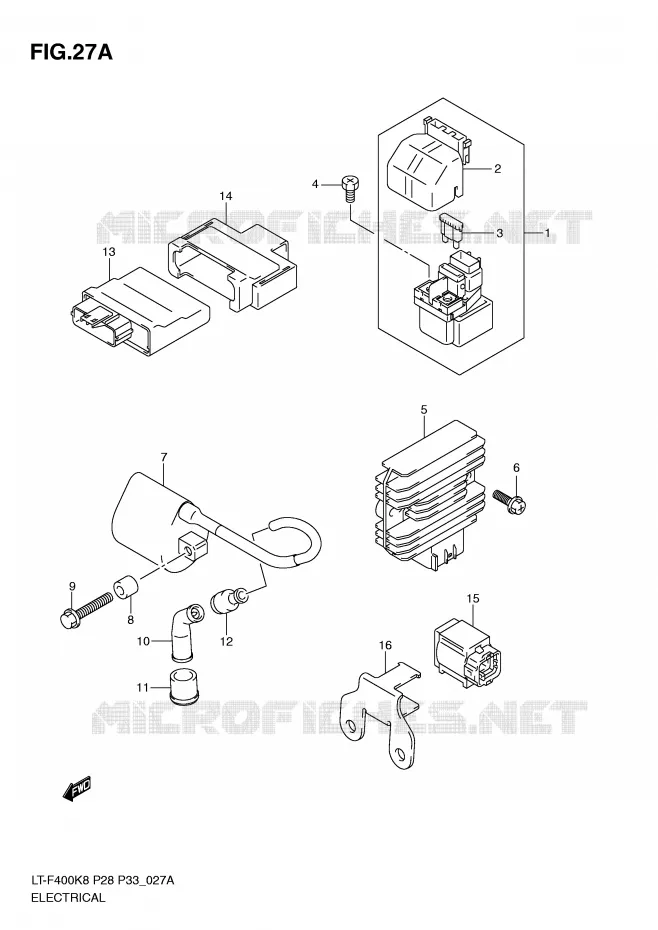

ELECTRICAL (MODEL L0) Suzuki QUAD 400 KINGQUAD 2009 LT-F400K9(P28/P33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
RELAY ASSY, STARTING MOTOR

31800-38G10-000   3180038G10000

3180038G10000

Unit Price

2
COVER

31861-38G00-000   3186138G00000

3186138G00000

Unit Price

3
FUSE, 30A

09481-30501-000  

09481-30504-000
 0948130501000

Unit Price

4
SCREW(6X8)<br />BOLT (6X8)
SCREW(6X8)
BOLT (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-20H00-000   3280020H00000

3280020H00000

Unit Price

6
SCREW
BOLT, RECTIFIER

02162-0625B-000   021620625B000

021620625B000

Unit Price

7
COIL ASSY, IGNITION

33410-26G00-000  

33410-26G01-000
 3341026G00000

Unit Price

8
SPACER(6X12X10)<br />SPACER, IGNITION COIL
SPACER(6X12X10)
SPACER, IGNITION COIL

09180-06095-000   0918006095000

0918006095000

Unit Price

9
BOLT<br />BOLT, IGNITION COIL
BOLT
BOLT, IGNITION COIL

01547-0630B-000   015470630B000

015470630B000

Unit Price

10
CAP, SPARK PLUG
CAP, SPARK PLUG

33510-43010-000   3351043010000

3351043010000

Unit Price

11
SEAL, SPARK PLUG

33541-44D00-000   3354144D00000

3354144D00000

Unit Price

12
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

13
CONTROL UNIT, FI

32920-27H10-000   3292027H10000

3292027H10000
Not available
14
HOLDER, FI CONTROL UNIT

32980-27H10-000   3298027H10000

3298027H10000
Not available
15
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

16
BRACKET, FUEL CUT SENSOR

33961-27H00-000   3396127H00000

3396127H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (MODEL L0) of your Suzuki KINGQUAD 400 2WD of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2009

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2009

Select your Suzuki 2009 model

400 KINGQUAD 2009 LT-F400K9(P28/P33)

KINGQUAD 400 2WD

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2009
Model code LT-F400K9(P28 / P33)
2WD
