Parts diagram

FRONT MASTER CYLINDER

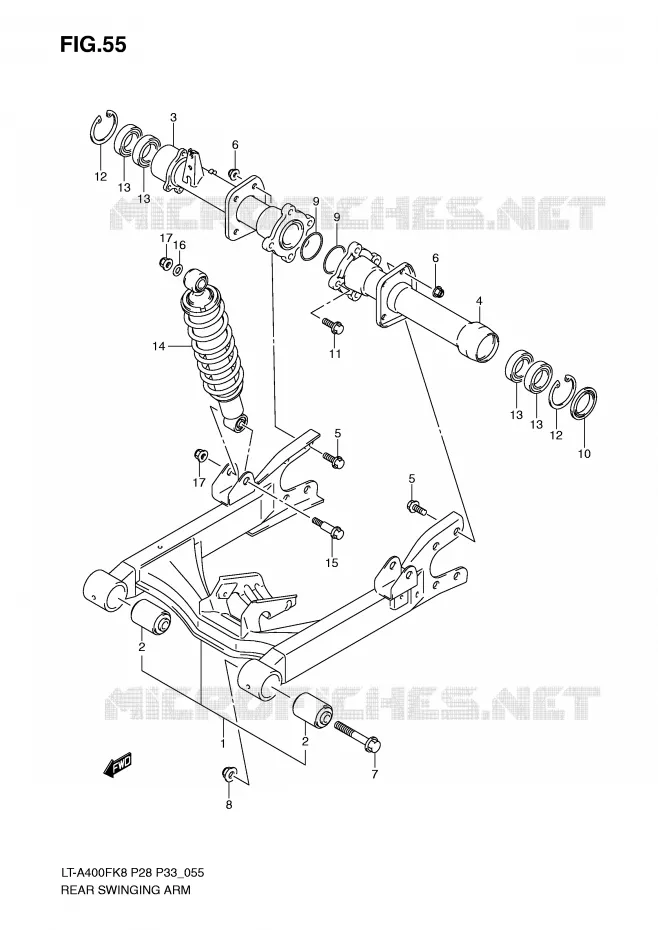

SWINGARM FOR SUZUKI KINGQUAD 400 2010

RIGHT HAND REAR WHEEL

Item numbers

SWINGINGARM SET, RR
SWINGINGARM SET, REAR

61101-27850-000 6110127850000

$685,97

Unit Price

BUSH, RR SWINGINGARM PIVOT
BUSH, PIVOT

61230-27H00-000 6123027H00000

$69,97

Unit Price

61300-27H10
HOUSING, REAR AXLE RH

61300-27H00-000 6130027H00000

Not available

HOUSING, RR AXLE, L
HOUSING, REAR AXLE LH

61400-27H00-000 6140027H00000

$719,97

Unit Price

BOLT 10X20
BOLT, REAR SWGARM BRACKET

09103-10216-000 0910310216000

$5,97

Unit Price

NUT
NUT, REAR SWGARM BRACKET

09159-10115-000 0915910115000

$5,97

Unit Price

BOLT, RR SWGARM PIVOT
BOLT, PIVOT (10X20)

09103-12068-000 0910312068000

$15,97

Unit Price

NUT
NUT, PIVOT

09159-12054-000 0915912054000

$14,97

Unit Price

DRIVEN BEVEL P RING
O RING, REAR AXLE HOUSING (D:3.1, ID:69.4)

09280-70005-000 0928070005000

$12,97

Unit Price

SEAL, RR AXLE HSG
SEAL, REAR AXLE HOUSING

09283-38022-000 0928338022000

$20,97

Unit Price

BOLT(10X30)
BOLT, AXLE HOUSING (10X30)

09103-10421-000 0910310421000

$21,97

Unit Price

08331-41559
CIRCLIP

08331-4155A-000

Not available

BEARING
BEARING, HUB

08123-60067-000 0812360067000

$36,97

Unit Price

ABSORBER ASSY, RR SHO
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-27H00-019 6210027H00019

$274,97

Unit Price

ABSORBER ASSY, RR SHOCK
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-27H10-019 6210027H10019

$294,97

Unit Price

BOLT 10X48
BOLT, LOWER (10X48)

09103-10126-000 0910310126000

$7,97

Unit Price

WASHER
WASHER, UPPER, OUTER

09160-10501-000 0916010501000

$3,97

Unit Price

NUT

08319-3110B-000 083193110B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of KINGQUAD. Let us know if you have any questions.
