ALTERNATOR COVER (LT-F400FL0)

OIL PUMP FOR SUZUKI KINGQUAD 400 2010

OIL COOLER

Item numbers

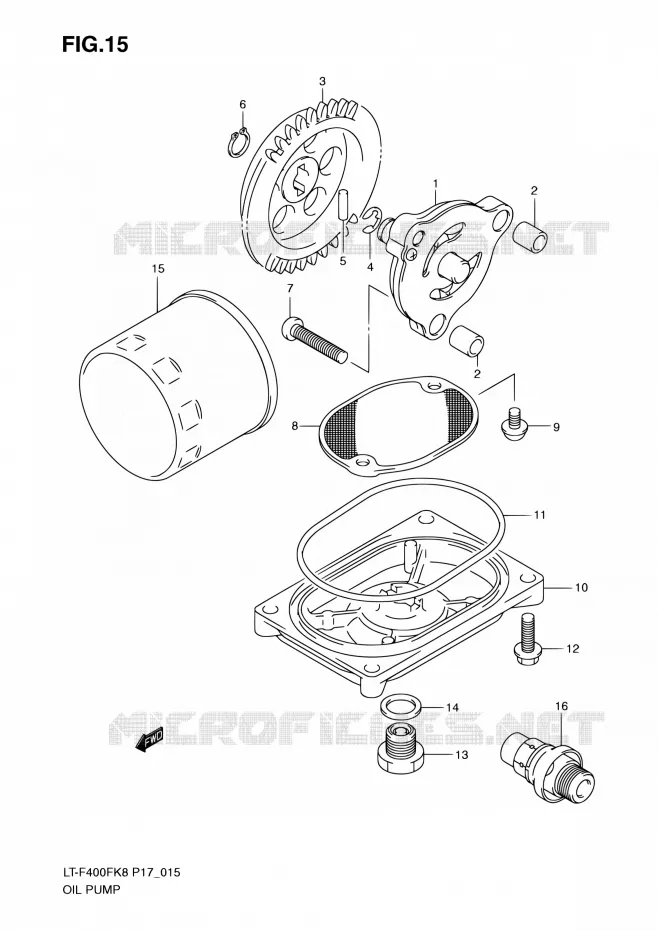

OIL PUMP Suzuki QUAD 400 KINGQUAD 2010 LT-F400F L0 (P17,P24)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
PUMP ASSY, ENGINE OIL
PUMP, ENGINE OIL

16400-27H00-000   1640027H00000

1640027H00000

Unit Price

2
PIN<br />PIN, OIL PUMP
PIN
PIN, OIL PUMP

04211-09109-000   0421109109000

0421109109000

Unit Price

3
GEAR, OIL PUMP DRIVEN(NT:35)
GEAR, DRIVEN (NT:47)

16331-14D02-000   1633114D02000

1633114D02000

Unit Price

4
SHIM,10X18X0.5<br />WASHER, PUMP DRIVEN GEAR
SHIM, 10X18X0.5
WASHER, PUMP DRIVEN GEAR

09181-10158-000   0918110158000

0918110158000

Unit Price

5
GR SHIFT CAM DR PIN<br />PIN
GR SHIFT CAM DR PIN
PIN

09261-04009-000   0926104009000

0926104009000

Unit Price

6
CIRCLIP

08331-3110A-000  

08331-31109-000
 083313110A000

Unit Price

7
SCREW
SCREW

02112-0625B-000   021120625B000

021120625B000

Unit Price

8
STRAINER, ENGINE OIL

16520-27H00-000   1652027H00000

1652027H00000

Unit Price

9
SCREW

02112-7512A-000   021127512A000

021127512A000

Unit Price

10
CAP, OIL STRAINER

16523-24501-000   1652324501000

1652324501000

Unit Price

11
O RING
O RING (D:2.4, ID:82)

16528-24500-000   1652824500000

1652824500000

Unit Price

12
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

13
PLUG<br />PLUG, DRAIN
PLUG
PLUG, DRAIN

09247-14002-000   0924714002000

0924714002000

Unit Price

14
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

15
FILTER ASSY, ENGINE OIL

16510-03G00-X07  

16510-07J10-000
 1651003G00X07

Unit Price

16
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF

16440-27A01-000   1644027A01000

1644027A01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki KINGQUAD 400 4WD of KINGQUAD. Let us know if you have any questions.
