TIMING

THROTTLE BODY FOR SUZUKI KINGQUAD 400 2011

AIR FILTER

Item numbers

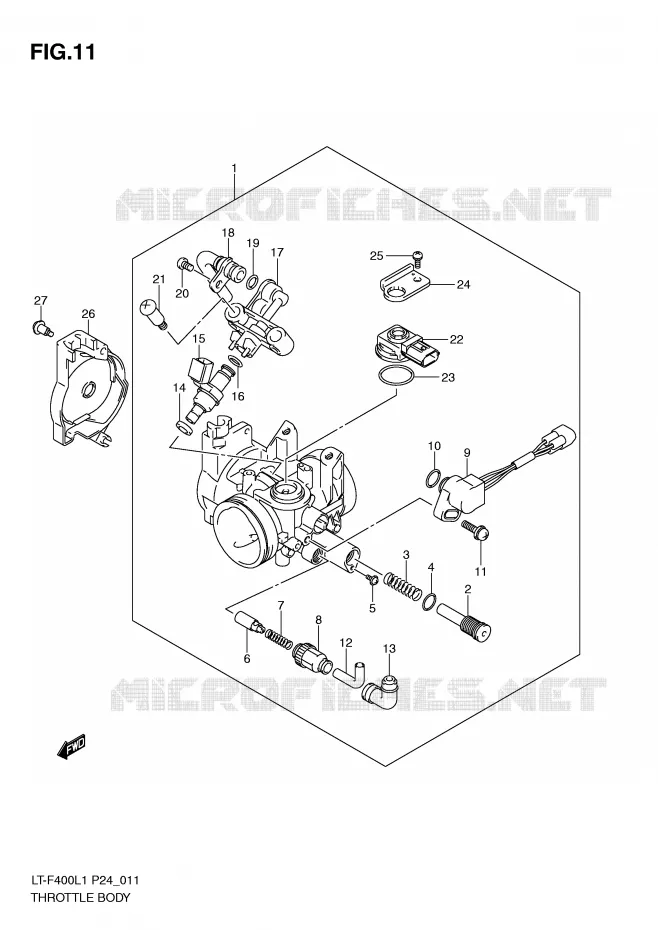

THROTTLE BODY Suzuki QUAD 400 KINGQUAD 2011 LT-F400L1(P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
13400-27H04
BODY ASSY, THROTTLE

13400-27H01-000  

1340027H01000
Not available
2
SCREW

13279-27H00-000   1327927H00000

1327927H00000

Unit Price

3
SPRING

13271-14G00-000   1327114G00000

1327114G00000

Unit Price

4
O RING

13295-14G00-000   1329514G00000

1329514G00000

Unit Price

5
SCREW

13601-14G00-000   1360114G00000

1360114G00000

Unit Price

6
VALVE, STARTER
STARTER VALVE

13411-28H00-000   1341128H00000

1341128H00000

Unit Price

7
SPRING

13271-45G00-000   1327145G00000

1327145G00000

Unit Price

8
HOLDER, CABLE

13581-45G00-000   1358145G00000

1358145G00000

Unit Price

9
13580-27H12

13580-27H10-000  

1358027H10000
Not available
10
O RING
O RING

13575-40F00-000   1357540F00000

1357540F00000

Unit Price

11
SCREW

13605-40F00-000   1360540F00000

1360540F00000

Unit Price

12
GUIDE, CABLE

13579-45G00-000   1357945G00000

1357945G00000

Unit Price

13
CAP

13681-45G00-000   1368145G00000

1368145G00000

Unit Price

14
RING, SEAL

15722-21H00-000   1572221H00000

1572221H00000

Unit Price

15
INJECTOR ASSY

15710-21H00-000   1571021H00000

1571021H00000

Unit Price

16
O RING

15721-21H00-000   1572121H00000

1572121H00000

Unit Price

17
PIPE, FUEL

13471-27H00-000   1347127H00000

1347127H00000

Unit Price

18
JOINT

13685-27H00-000   1368527H00000

1368527H00000

Unit Price

19
O RING

15721-24F00-000   1572124F00000

1572124F00000

Unit Price

20
SCREW

13452-45G00-000   1345245G00000

1345245G00000

Unit Price

21
SCREW

13601-45G00-000   1360145G00000

1360145G00000

Unit Price

22
SENSOR, MAP

15620-05H00-000   1562005H00000

1562005H00000

Unit Price

23
15621-05H01
O RING

15621-05H00-000   1562105H00000

1562105H00000
Not available
24
PLATE, MAP SENSOR
PLATE

15622-33H00-000   1562233H00000

1562233H00000

Unit Price

25
SCREW

02112-14087-000   0211214087000

0211214087000

Unit Price

26
COVER

13484-45G00-000   1348445G00000

1348445G00000

Unit Price

27
SCREW

13601-11F00-000   1360111F00000

1360111F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2011
