Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI KINGQUAD 400 2012

V-BELT COOLING DUCT

Item numbers

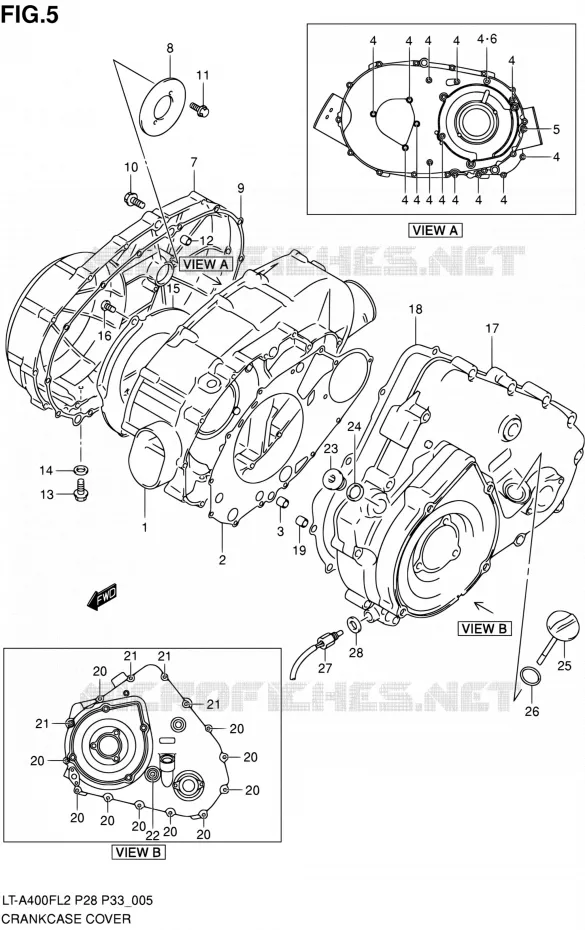

CASING Suzuki QUAD 400 KINGQUAD 2012 LT-A400F L2/LT-A400FZ L2 (P03,P28,P33)
1
2
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
20
20
20
20
20
21
21
21
21
22
23
24
25
26
27
28
1
COVER, CLUTCH

11341-38F00-000   1134138F00000

1134138F00000

Unit Price

2
GASKET, CLUTCH COVER
GASKET, CLUTCH COVER (NA)

11482-38F00-000   1148238F00000

1148238F00000

Unit Price

3
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

4
BOLT
BOLT

01547-0640B-000   015470640B000

015470640B000

Unit Price

5
BOLT
BOLT

01547-0680B-000   015470680B000

015470680B000

Unit Price

6
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
7
COVER, V-BELT

11371-27H00-000   1137127H00000

1137127H00000

Unit Price

8
PLATE, V-BELT COVER

11372-27H00-000   1137227H00000

1137227H00000

Unit Price

9
GASKET, V-BELT COVER
GASKET, V-BELT COVER (NA)

11484-38F00-000   1148438F00000

1148438F00000

Unit Price

10
BOLT
BOLT

01547-0635B-000   015470635B000

015470635B000

Unit Price

11
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

12
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

13
BOLT<br />PLUG
BOLT
PLUG

01550-0812B-000   015500812B000

015500812B000

Unit Price

14
GASKET,HEAD COVER BO<br />GASKET (8.2X16X1)
GASKET, HEAD COVER BO
GASKET (8.2X16X1)

09168-08029-000   0916808029000

0916808029000

Unit Price

15
PLATE, AIR INTAKE

11343-38F00-000   1134338F00000

1134338F00000

Unit Price

16
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

17
COVER, MAGNETO

11351-27H20-000   1135127H20000

1135127H20000
Not available
18
GASKET, MAGNETO COVER
GASKET, MAGNETO COVER (NA)

11483-27H00-000   1148327H00000

1148327H00000

Unit Price

19
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

20
BOLT
BOLT

01547-0640B-000   015470640B000

015470640B000

Unit Price

21
BOLT

01547-0650B-000  

01547-0650A-000
 015470650B000

Unit Price

22
BOLT CRANKCASE *S1
BOLT (8X140)

09103-08040-000   0910308040000

0910308040000

Unit Price

23
PLUG,OIL<br />PLUG
PLUG, OIL
PLUG

09248-16012-000   0924816012000

0924816012000

Unit Price

24
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

25
GAUGE, OIL LEVEL

11971-38F00-000   1197138F00000

1197138F00000

Unit Price

26
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

27
SENSOR, ENGINE TEMP

13640-32G00-000  

13640-32G01-000
 1364032G00000

Unit Price

28
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2012

Select your Suzuki 2012 model

400 KINGQUAD 2012 LT-A400F L2/LT-A400FZ L2 (P03,P28,P33)

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2012
Model code LT-A400F L2 / LT-A400FZ L2 (P03,P28,P33)
