DRIVESHAFT (LT-A400FZL2 P17)

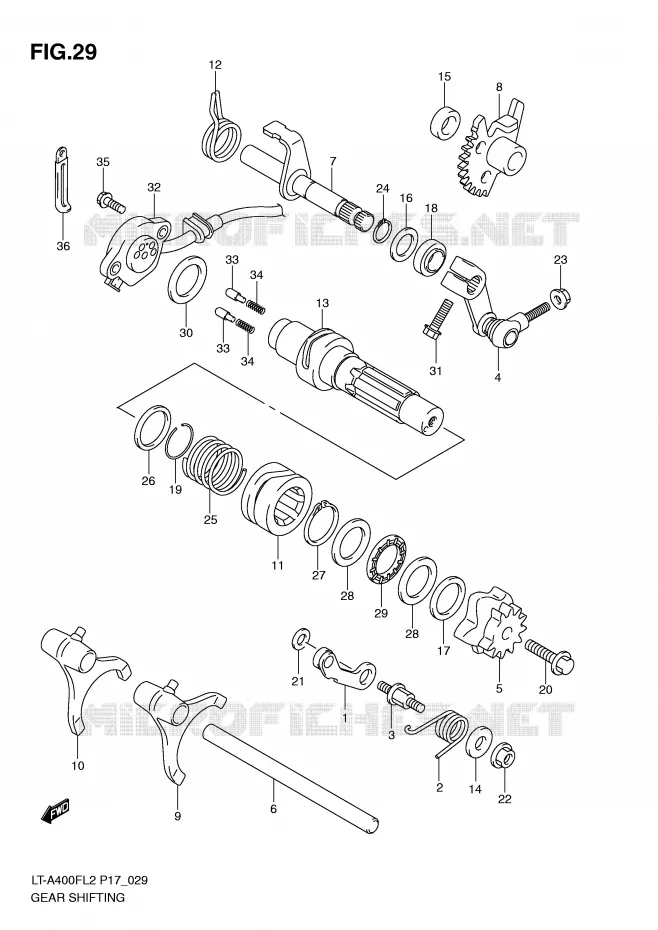

GEAR SHIFTING ASSY FOR SUZUKI KINGQUAD 400 2012

FINAL BEVEL GEAR (FRONT) (LT-A400FL2 P17)

Item numbers

STOPPER, GEAR SHIFT CAM
STOPPER, SHIFT CAM

25350-26D01-000 2535026D01000

$15,97

Unit Price

SPRING, GEAR SHIFT CAM STOPPER
SPRING, SHIFT CAM STOPPER

25355-38F00-000 2535538F00000

$5,97

Unit Price

SUPPORT, CAM STOPPER ARM
SUPPORT, SHIFT CAM STOPPER ARM

25356-12C00-000 2535612C00000

$18,97

Unit Price

ARM, SUB T/M GEAR SHIFTT
ARM, SELECT

25360-11H10-000 2536011H10000

$62,97

Unit Price

PLATE, GEAR SHIFT CAM STOPPER

25381-38F10-000 2538138F10000

$43,97

Unit Price

SHAFT, GEAR SHIFT FORK
SHAFT, SUB T/M GEAR SHIFT FORK

25411-18900-000 2541118900000

$17,97

Unit Price

25510-27H01
SHAFT, SUB T/M GEAR SHIFT

25510-27H00-000 2551027H00000

Not available

GEAR, SUB T/M SHIFT

25540-27H00-000 2554027H00000

$26,97

Unit Price

FORK, SUB T/M GEAR SHIFT

29511-44D00-000 2951144D00000

$71,97

Unit Price

FORK, SUB T/M GEAR SHIFT
FORK, GEAR SHIFT REVERSE

29511-44D00-000 2951144D00000

$71,97

Unit Price

CAM, SUB T/M GEAR SHIFT

29611-27H00-000 2961127H00000

$68,97

Unit Price

SPRING, SHIFT ARM RETURN

29613-31G00-000 2961331G00000

$8,97

Unit Price

SHAFT, SUB T/M GEAR SHIFT

29620-27H01-000 2962027H01000

$132,97

Unit Price

WASHER (6.5X16X2.3)

09160-06022-000 0916006022000

$2,97

Unit Price

SPACER (12X22X8.0)

09180-12100-000 0918012100000

$9,97

Unit Price

WASHER, THRUST
SHIM (12X20X1)

09181-12167-000 0918112167000

$3,97

Unit Price

SHIM (20X28X0.5)

09181-20158-000 0918120158000

$4,97

Unit Price

OIL SEAL
OIL SEAL (12X22X9)

09285-12006-000 0928512006000

$10,97

Unit Price

CIRCLIP

09380-25012-000 0938025012000

$2,97

Unit Price

BOLT

01550-0625B-000 015500625B000

$3,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

NUT

08316-1006B-000 083161006B000

$3,97

Unit Price

NUT

08310-0006A-000

Not available

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

SPRING, SUB T/M SHIFT CAM

29612-38F00-000 2961238F00000

$4,97

Unit Price

SHIM (25X32X1)

09181-25139-000 0918125139000

$4,97

Unit Price

CIRCLIP

08331-3125A-000

08331-31259-000

$3,97

Unit Price

WASHER
SHIM (20X34X1)

09181-20251-000 0918120251000

$4,97

Unit Price

BEARING (20X35X2)

09263-20014-000 0926320014000

$29,97

Unit Price

WASHER, 5TH DRIVE GEA
SHIM (25X34X1)

09181-25167-000 0918125167000

$5,97

Unit Price

BOLT

01550-0620B-000 015500620B000

$4,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-27H00-000 3772027H00000

$118,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of KINGQUAD. Let us know if you have any questions.
