WIRING HARNESS (LT-A400FL2 P33)

WIRING HARNESS (LT-A400FZL2 P28) FOR SUZUKI KINGQUAD 400 2012

WIRING HARNESS (LT-A400FZL2 P33)

Item numbers

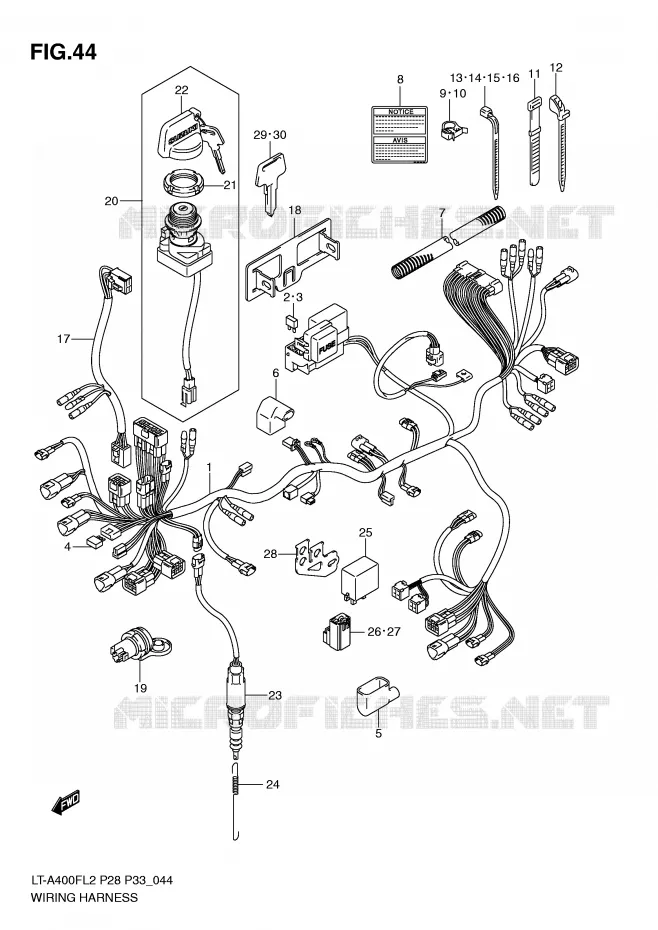

WIRING HARNESS (LT-A400FZL2 P28) Suzuki QUAD 400 KINGQUAD 2012 LT-A400FZL2(P28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
36610-27HE2
HARNESS, WIRING

36610-27HE0-000   3661027HE0000

3661027HE0000
Not available
2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
3
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

4
DIODE
DIODE

36611-38A00-000  

36611-38A10-000
 3661138A00000

Unit Price

5
BOOT, ECU COUPLER
PROTECTOR, WIRING HARNESS

36618-25H00-000   3661825H00000

3661825H00000

Unit Price

6
BOOT, CONNECTOR

36618-27H00-000   3661827H00000

3661827H00000

Unit Price

7
GUIDE, WIRING HARNESS

36619-27H00-000   3661927H00000

3661927H00000

Unit Price

8
LABEL, POWER SOURCE TERMINAL
LABEL, CAUTION MAX AMP

38852-03G20-000  

3885203G20000
Not available
9
CLAMP

09403-20403-000   0940320403000

0940320403000

Unit Price

10
CLAMP

09403-30403-000   0940330403000

0940330403000

Unit Price

11
FUEL HOSE CLAMP<br />CLAMP (L:120)
FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000   0940712402000

0940712402000

Unit Price

12
CLAMP

09407-12407-000   0940712407000

0940712407000

Unit Price

13
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

14
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

15
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

16
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

17
WIRE, FR BRAKE SW LEAD
WIRE, FRONT BRAKE SW LEAD

36855-27H00-000   3685527H00000

3685527H00000

Unit Price

18
BRACKET, FUSE BOX

36744-38F00-000   3674438F00000

3674438F00000

Unit Price

19
TERMINAL, POWER SOURCE

38850-03G10-000   3885003G10000

3885003G10000

Unit Price

20
SWITCH ASSY, IGNITION

37110-38F00-000  

37110-38F01-000
 3711038F00000

Unit Price

21
NUT, IGNITION SWITCH

37112-24500-000   3711224500000

3711224500000

Unit Price

22
MASCOT, KEY

37142-19B00-000  

37142-19B01-000
 3714219B00000

Unit Price

23
SWITCH ASSY, STOP LAMP

37740-38F01-000   3774038F01000

3774038F01000

Unit Price

24
BRAKE SWITCH SPRING
SPRING

09443-06016-000   0944306016000

0944306016000

Unit Price

25
RELAY, NEUTRAL START

38730-09F00-000   3873009F00000

3873009F00000

Unit Price

26
PLEASE ORDER 38740-31G10

38740-31G10-000  

38740-31G11-000
 3874031G10000

Unit Price

27
PLEASE ORDER 38740-31G10

38740-31G10-000  

38740-31G11-000
 3874031G10000

Unit Price

28
BRACKET, RELAY

38741-27H10-000   3874127H10000

3874127H10000
Not available
29
KEY, BLANK (TYPE:C)

37146-19B00-000   3714619B00000

3714619B00000

Unit Price

30
KEY, BLANK (TYPE:D)

37146-19B10-000   3714619B10000

3714619B10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (LT-A400FZL2 P28) of your Suzuki of KINGQUAD. Let us know if you have any questions.
