Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CAMSHAFT - VALVES

TIMING FOR SUZUKI KINGQUAD 400 2012

THROTTLE BODY

Item numbers

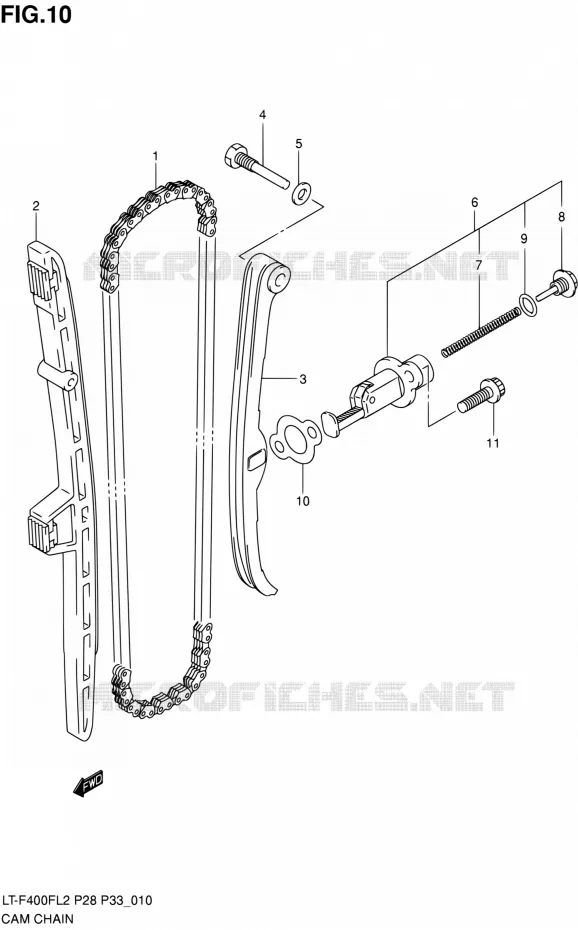

TIMING Suzuki QUAD 400 KINGQUAD 2012 LT-F400F L2/LT-F400FZ L2 (P03,P28,P33)
1
2
3
4
5
6
7
8
9
10
11
1
CHAIN, CAMSHAFT DRIVE
CHAIN, CAM (108LE)

12760-19B71-000   1276019B71000

1276019B71000

Unit Price

2
GUIDE, CAM CHAIN

12771-27H00-000  

12771-27H01-000
 1277127H00000

Unit Price

3
TENSIONER, CAM CHAIN

12811-14D10-000  

12811-14D11-000
 1281114D10000

Unit Price

4
BOLT, CAM CHAIN TENSIONER

12812-32400-000  

12812-32410-000
 1281232400000

Unit Price

5
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

6
ADJUSTER ASSY, TENSIONER

12830-29B11-000   1283029B11000

1283029B11000

Unit Price

7
.SPRING

12833-29B00-000   1283329B00000

1283329B00000

Unit Price

8
.PLUG, ADJUSTER

12834-26B00-000   1283426B00000

1283426B00000

Unit Price

9
.O RING
.O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

10
GASKET, TENSIONER ADJUSTER

12837-14D00-000  

12837-19B10-000
 1283714D00000

Unit Price

11
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2012

Select your Suzuki 2012 model

400 KINGQUAD 2012 LT-F400F L2/LT-F400FZ L2 (P03,P28,P33)

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2012
Model code LT-F400F L2 / LT-F400FZ L2 (P03,P28,P33)
