Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT WHEEL (LT-A400FZL2 P17)

FRONT CALIPER FOR SUZUKI KINGQUAD 400 2012

FRONT BRAKE HOSE

Item numbers

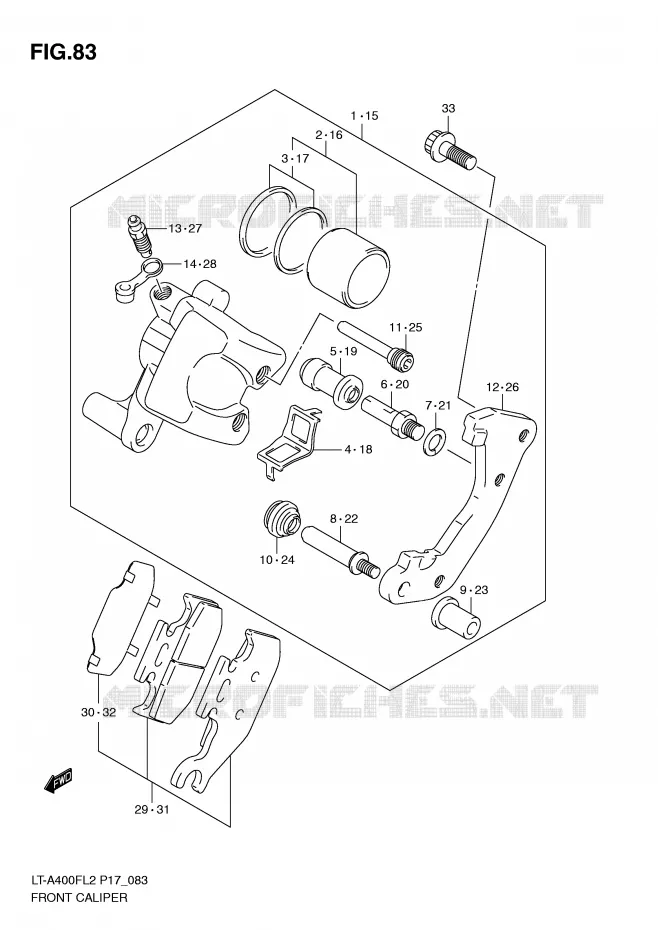

FRONT CALIPER Suzuki QUAD 400 KINGQUAD 2012 LT-F400FZL2(P17)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
CALIPER ASSY, FR, R
CALIPER ASSY, FRONT RH

59100-31G00-999   5910031G00999

5910031G00999

Unit Price

2
PISTON SET, CALIPERS
PISTON SET

59300-13810-000   5930013810000

5930013810000

Unit Price

3
SEAL SET, PISTON
SEAL SET, PISTON

69100-13820-000   6910013820000

6910013820000

Unit Price

4
SPRING
SPRING, PAD

59315-27C00-000   5931527C00000

5931527C00000

Unit Price

5
BOOT
BOOT

59386-13A00-000   5938613A00000

5938613A00000

Unit Price

6
BOLT, PIN
BOLT

59382-13A00-000   5938213A00000

5938213A00000

Unit Price

7
WASHER, WAVE
WASHER

59314-13A00-000   5931413A00000

5931413A00000

Unit Price

8
PIN, SLIDE
PIN

59387-00B20-000   5938700B20000

5938700B20000

Unit Price

9
NUT

59388-00B20-000   5938800B20000

5938800B20000

Unit Price

10
BOOT
BOOT

59303-14500-000   5930314500000

5930314500000
Not available
11
PIN, HANGER

59145-39D00-000   5914539D00000

5914539D00000

Unit Price

12
BRACKET, R
BRACKET, RH

59151-31G00-000   5915131G00000

5915131G00000

Unit Price

13
BLEEDER
BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

14
CAP, BLEEDER
CAP, BLEEDER

59122-01A00-000   5912201A00000

5912201A00000

Unit Price

15
CALIPER ASSY, FR, L
CALIPER ASSY, FRONT LH

59300-31G01-999   5930031G01999

5930031G01999

Unit Price

16
PISTON SET, CALIPERS
PISTON SET

59300-13810-000   5930013810000

5930013810000

Unit Price

17
SEAL SET, PISTON
SEAL SET, PISTON

69100-13820-000   6910013820000

6910013820000

Unit Price

18
SPRING
SPRING, PAD

59315-27C00-000   5931527C00000

5931527C00000

Unit Price

19
BOOT
BOOT

59386-13A00-000   5938613A00000

5938613A00000

Unit Price

20
BOLT, PIN
BOLT

59382-13A00-000   5938213A00000

5938213A00000

Unit Price

21
WASHER, WAVE
WASHER

59314-13A00-000   5931413A00000

5931413A00000

Unit Price

22
PIN, SLIDE
PIN

59387-00B20-000   5938700B20000

5938700B20000

Unit Price

23
NUT

59388-00B20-000   5938800B20000

5938800B20000

Unit Price

24
BOOT
BOOT

59303-14500-000   5930314500000

5930314500000
Not available
25
PIN, HANGER

59145-39D00-000   5914539D00000

5914539D00000

Unit Price

26
BRACKET, L
BRACKET, LH

59351-31G00-000   5935131G00000

5935131G00000

Unit Price

27
BLEEDER
BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

28
CAP, BLEEDER
CAP, BLEEDER

59122-01A00-000   5912201A00000

5912201A00000

Unit Price

29
PAD & SHIM SET, R
PAD & SHIM SET RH

59100-31870-000   5910031870000

5910031870000

Unit Price

30
SHIM

69132-28C00-000   6913228C00000

6913228C00000

Unit Price

31
PAD & SHIM SET, L
PAD & SHIM SET LH

59100-31880-000   5910031880000

5910031880000

Unit Price

32
SHIM

69132-28C00-000   6913228C00000

6913228C00000

Unit Price

33
BOLT
BOLT (8X16)

09106-08174-000   0910608174000

0910608174000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT CALIPER of your Suzuki of KINGQUAD. Let us know if you have any questions.
