TRANSMISSION (2)

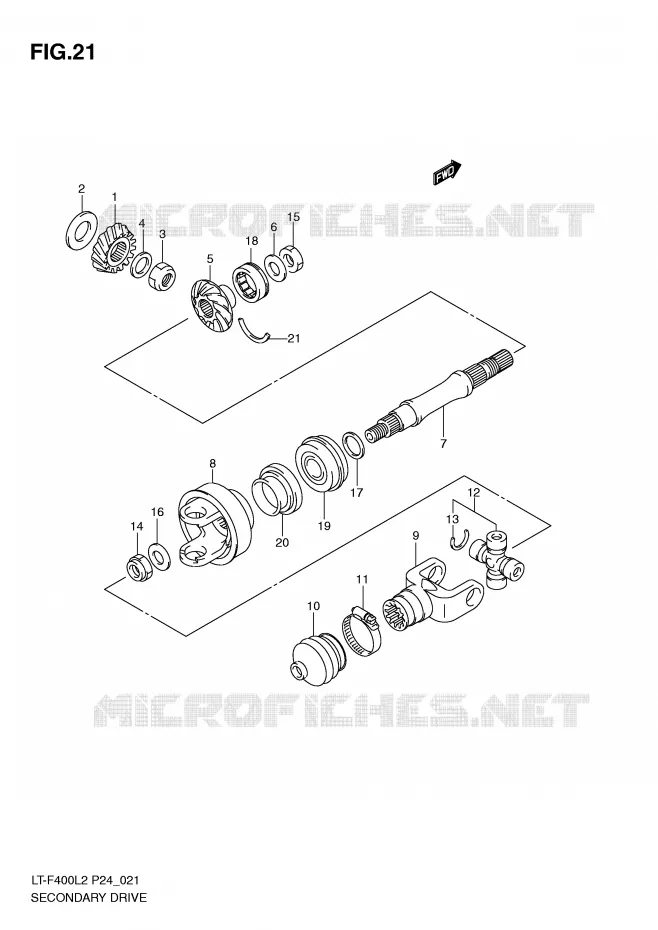

DRIVESHAFT FOR SUZUKI KINGQUAD 400 2012

GEAR SHIFTING ASSY (1)

Item numbers

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-44D11-000 2491144D11000

$162,97

Unit Price

SHIM SET, SEC DRIVE BEVEL
SHIM SET, SEC DRIVE BEVEL GEAR

24935-03811-000 2493503811000

$131,97

Unit Price

NUT 20MM
NUT

09140-20012-000 0914020012000

$6,97

Unit Price

WASHER
SHIM (20X32X1)

09181-20223-000 0918120223000

$5,97

Unit Price

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-44D10-000 2492144D10000

$181,97

Unit Price

WASHER

08211-22362-000 0821122362000

$7,97

Unit Price

SHAFT, SEC DRIVEN OUTPUT RR

24971-38F50-000 2497138F50000

$203,97

Unit Price

YOKE, RR DRIVE OUTPUT

27130-27H20-000 2713027H20000

Not available

YOKE, PROP SHAFT JOINT

27140-27H00-000

27140-27H01-000

$147,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$73,97

Unit Price

BOOT, REAR OUTPUT JOINT

27153-38F10-000 2715338F10000

Not available

CLAMP

09402-00512-000 0940200512000

$23,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

NUT

09159-16003-000 0915916003000

$6,97

Unit Price

NUT, PRIMARY SHAFT
NUT

09159-22005-000 0915922005000

$34,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER (16X30X3)

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM SET, SEC DRIVEN BEVEL
SHIM SET

24945-03811-000 2494503811000

$106,97

Unit Price

BEARING
BEARING (30X50X17)

09263-30050-000 0926330050000

$68,97

Unit Price

BEARING, REAR OUTPUT
BEARING (25X52X20.6)

09267-25014-000 0926725014000

$113,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL (34X52X9)

09283-34008-000 0928334008000

$30,97

Unit Price

C RING
RING

09390-50002-000 0939050002000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
