OIL PUMP FOR SUZUKI KINGQUAD 400 2013

OIL COOLER

Item numbers

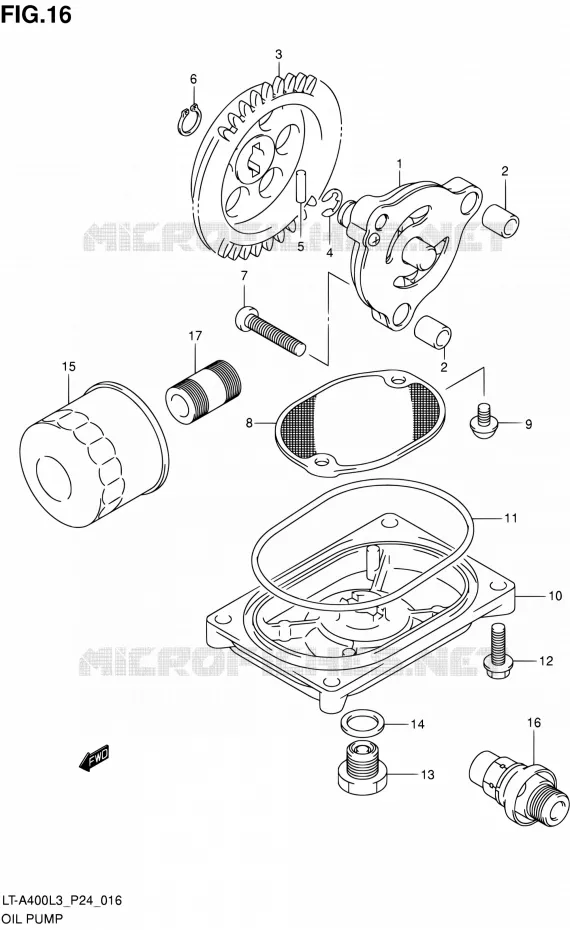

OIL PUMP Suzuki QUAD 400 KINGQUAD 2013 LT-A400 L3 (P24)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
PUMP ASSY, ENGINE OIL
PUMP, ENGINE OIL

16400-27H00-000   1640027H00000

1640027H00000

Unit Price

2
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

3
GEAR, OIL PUMP DRIVEN (NT:35)

16331-14D02-000   1633114D02000

1633114D02000

Unit Price

4
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

6
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

7
SCREW
SCREW

02112-0625A-000   021120625A000

021120625A000

Unit Price

8
STRAINER, ENGINE OIL

16520-27H00-000   1652027H00000

1652027H00000

Unit Price

9
SCREW

02112-7512A-000   021127512A000

021127512A000

Unit Price

10
CAP, OIL STRAINER

16523-24501-000   1652324501000

1652324501000

Unit Price

11
O RING
O RING, OIL STRAINER CAP

16528-24500-000   1652824500000

1652824500000

Unit Price

12
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

13
PLUG<br />PLUG (MAGNET)
PLUG
PLUG (MAGNET)

09247-14002-000   0924714002000

0924714002000

Unit Price

14
GASKET,13.8X18.8X0.4<br />GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

15
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

16
VALVE ASSY,OIL RELIEF<br />VALVE ASSY, OIL RELIEF (6K)
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF (6K)

16440-27A01-000   1644027A01000

1644027A01000

Unit Price

17
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of KINGQUAD. Let us know if you have any questions.
