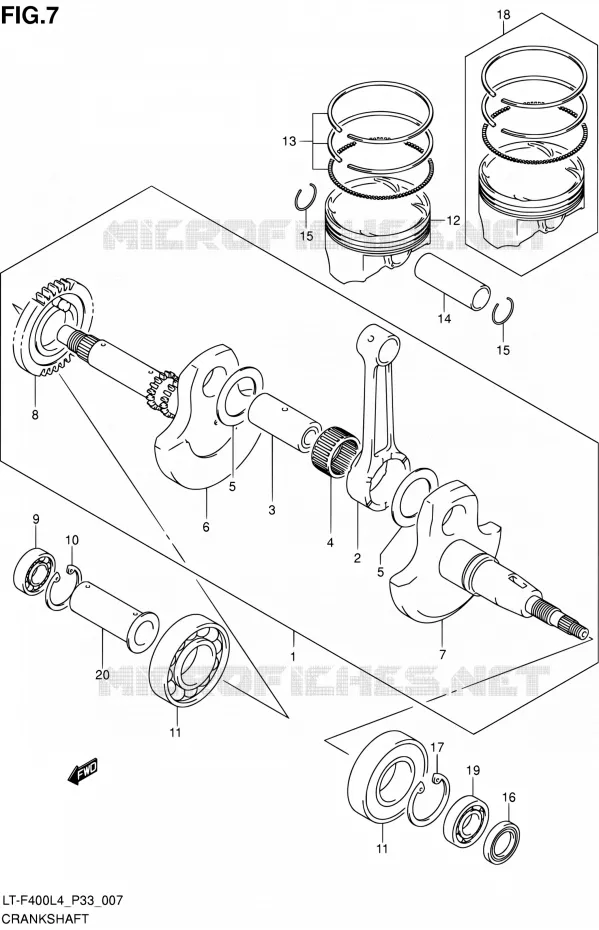

CRANKSHAFT FOR SUZUKI KINGQUAD 400 2014

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT SET

12200-38861-000 1220038861000

$877,97

Unit Price

.ROD, CONNECTING

12161-14D00-000 1216114D00000

$137,97

Unit Price

.PIN, CRANK

12210-14D03-000 1221014D03000

$86,97

Unit Price

BEARING
.BEARING (34X43X22)

09263-34005-000 0926334005000

$89,97

Unit Price

.WASHER (34X52X1)

09160-34003-000 0916034003000

$11,97

Unit Price

CRANKSHAFT, R
.CRANKSHAFT, RH (NT:24)

12220-38F61-000 1222038F61000

$335,97

Unit Price

CRANKSHAFT, L
.CRANKSHAFT, LH

12261-38F60-000 1226138F60000

$282,97

Unit Price

GEAR, CRANK BALANCER DRIVE
.GEAR, CRANK BALANCER DRIVE (NT:37)

12661-38F01-000 1266138F01000

$105,97

Unit Price

BEARING (15X35X11)

09262-15014-000 0926215014000

$30,97

Unit Price

CIRCLIP

08331-41359-000 0833141359000

$3,97

Unit Price

BEARING (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

PISTON

12111-38F21-0F0 1211138F210F0

$119,97

Unit Price

RING SET, PISTON
RING SET, PISTON (STD)

12140-38F10-000 1214038F10000

$86,97

Unit Price

PIN, PISTON

12151-24A00-000 1215124A00000

$25,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

SEAL, OIL(25X42X6)
OIL SEAL (25X42X6)

09283-25095-000 0928325095000

$38,97

Unit Price

CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000 0833141479000

$4,97

Unit Price

PISTON SET (OS:0.5)

12100-38F21-050 1210038F21050

$163,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$37,97

Unit Price

SPACER, CRANKSHAFT, R
SPACER, CRANKSHAFT, RH

12222-38F50-000 1222238F50000

$50,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
