HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI KINGQUAD 400 2014

STEERING LINKAGE - HUB

Item numbers

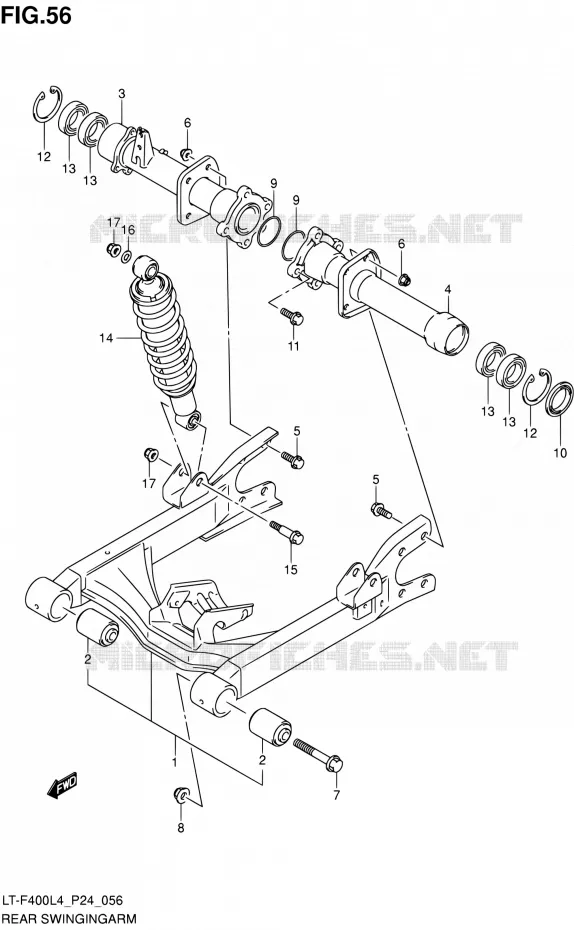

SWINGARM Suzuki QUAD 400 KINGQUAD 2014 LT-F400 L4 (P24)
1
2
2
3
4
5
5
6
6
7
8
9
9
10
11
12
12
13
13
13
13
14
15
16
17
17
1
SWINGINGARM SET, RR
SWINGINGARM SET, REAR

61101-27850-000   6110127850000

6110127850000

Unit Price

2
BUSH, RR SWINGINGARM PIVOT
.BUSH, PIVOT

61230-27H00-000   6123027H00000

6123027H00000

Unit Price

3
HOUSING, COMP, RR AXLE
HOUSING, REAR AXLE RH

61300-27H00-000   6130027H00000

6130027H00000

Unit Price

4
HOUSING, RR AXLE, L
HOUSING, REAR AXLE LH

61400-27H00-000   6140027H00000

6140027H00000

Unit Price

5
BOLT (10X20)

09103-10216-000   0910310216000

0910310216000

Unit Price

6
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

7
BOLT, RR SWGARM PIVOT

09113-12002-000  

09103-12068-000
 0911312002000

Unit Price

8
NUT

09159-12054-000   0915912054000

0915912054000

Unit Price

9
DRIVEN BEVEL P RING
O RING (D:3.1, ID:69.4)

09280-70005-000   0928070005000

0928070005000

Unit Price

10
SEAL, RR AXLE HSG
OIL SEAL (38X55X9)

09283-38022-000   0928338022000

0928338022000

Unit Price

11
BOLT (10X30)

09103-10421-000   0910310421000

0910310421000

Unit Price

12
CIRCLIP

08331-41559-000  

0833141559000
Not available
13
BEARING

08123-60067-000   0812360067000

0812360067000

Unit Price

14
ABSORBER ASSY, R
ABSORBER ASSY, REAR SHOCK (BLACK)

62100-38FA0-019   6210038FA0019

6210038FA0019

Unit Price

15
BOLT (10X48)
BOLT (10X48)

09103-10126-000   0910310126000

0910310126000

Unit Price

16
WASHER<br />WASHER (10.5X30X2.3)
WASHER
WASHER (10.5X30X2.3)

09160-10501-000   0916010501000

0916010501000

Unit Price

17
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2014

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2014

Select your Suzuki 2014 model

400 KINGQUAD 2014 LT-F400 L4 (P24)

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2014
Model code LT-F400 L4 (P24)
