Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CRANKSHAFT FOR SUZUKI KINGQUAD 400 2015

STARTER MOTOR CLUTCH

Item numbers

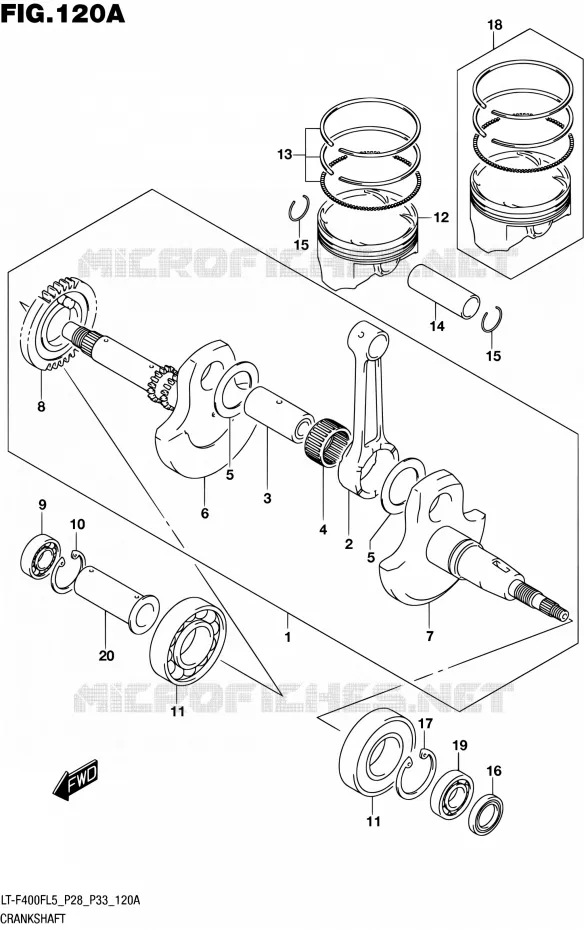

CRANKSHAFT Suzuki QUAD 400 KINGQUAD 2015 LT-F400F L5/LT-F400FZ L5 (P03,P28,P33)
1
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
15
16
17
18
19
20
1
CRANKSHAFT SET

12200-38861-000   1220038861000

1220038861000

Unit Price

2
.ROD, CONNECTING

12161-14D00-000   1216114D00000

1216114D00000

Unit Price

3
.PIN, CRANK

12210-14D03-000   1221014D03000

1221014D03000

Unit Price

4
BEARING
.BEARING (34X43X22)

09263-34005-000   0926334005000

0926334005000

Unit Price

5
.WASHER (34X52X1)

09160-34003-000   0916034003000

0916034003000

Unit Price

6
CRANKSHAFT, R
.CRANKSHAFT, RH (NT:24)

12220-38F61-000   1222038F61000

1222038F61000

Unit Price

7
CRANKSHAFT, L
.CRANKSHAFT, LH

12261-38F60-000   1226138F60000

1226138F60000

Unit Price

8
GEAR, CRANK BALANCER DRIVE
.GEAR, CRANK BALANCER DRIVE (NT:37)

12661-38F01-000   1266138F01000

1266138F01000

Unit Price

9
BEARING (15X35X11)

09262-15014-000   0926215014000

0926215014000

Unit Price

10
CIRCLIP

08331-41359-000   0833141359000

0833141359000

Unit Price

11
BEARING (35X72X17)

09262-35038-000   0926235038000

0926235038000

Unit Price

12
PISTON

12111-38F21-0F0   1211138F210F0

1211138F210F0

Unit Price

13
RING SET, PISTON

12140-38F10-000   1214038F10000

1214038F10000

Unit Price

14
PIN, PISTON

12151-24A00-000   1215124A00000

1215124A00000

Unit Price

15
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

16
SEAL, OIL(25X42X6)
OIL SEAL (25X42X6)

09283-25095-000   0928325095000

0928325095000

Unit Price

17
CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000   0833141479000

0833141479000

Unit Price

18
PISTON SET (OS:0.5)

12100-38F21-050   1210038F21050

1210038F21050

Unit Price

19
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

20
SPACER, CRANKSHAFT, R
SPACER, CRANKSHAFT, RH

12222-38F50-000   1222238F50000

1222238F50000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
