HEADLIGHT (LT-F400FL6 P33)

TAIL LIGHT ASSY (LT-F400FL6 P28) FOR SUZUKI KINGQUAD 400 2016

TAIL LIGHT ASSY (LT-F400FL6 P33)

Item numbers

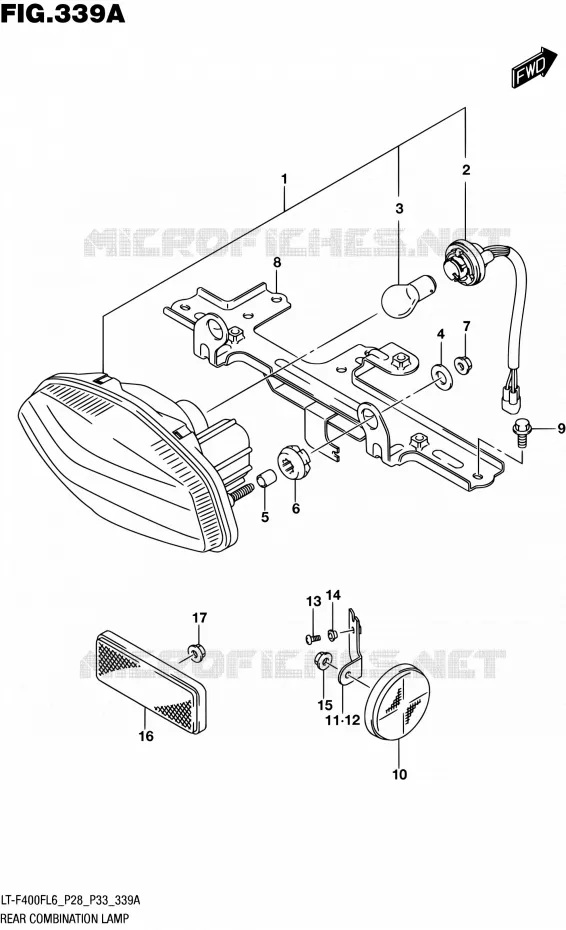

TAIL LIGHT ASSY (LT-F400FL6 P28) Suzuki QUAD 400 KINGQUAD 2016 LT-F400F L6 (P03,P28,P33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-31G00-000   3571031G00000

3571031G00000

Unit Price

2
SOCKET, BULB
.SOCKET & BULB

35718-03G30-000   3571803G30000

3571803G30000

Unit Price

3
BULB(12V1.4W G30)

09471-12128-000  

09471-12083-000
 0947112128000

Unit Price

4
WASHER 6.5X10X1.2<br />WASHER (6.5X20X1.2)
WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000   0916006077000

0916006077000

Unit Price

5
SPACER (6.5X9X10.5)

09180-06264-000   0918006264000

0918006264000

Unit Price

6
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

7
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

8
BRACKET, RR COMBINATION LAMP
BRACKET, REAR COMBINATION LAMP

35720-27H30-000   3572027H30000

3572027H30000

Unit Price

9
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

10
REFLECTOR ASSY, RR SIDE
REFLECTOR ASSY, REAR SIDE

35970-14A20-000   3597014A20000

3597014A20000

Unit Price

11
BRACKET, RR SIDE RR, R
BRACKET, REAR SIDE RR RH

35975-27H00-000   3597527H00000

3597527H00000

Unit Price

12
BRACKET, RR SIDE RR, L
BRACKET, REAR SIDE RR LH

35976-27H00-000   3597627H00000

3597627H00000

Unit Price

13
SCREW (5X8)

09125-05073-000   0912505073000

0912505073000

Unit Price

14
WASHER
WASHER

09169-06071-000   0916906071000

0916906071000

Unit Price

15
NUT
NUT

08316-1005B-000   083161005B000

083161005B000

Unit Price

16
REFLECTOR ASSY,RR<br />REFLECTOR ASSY, REAR
REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

17
NUT
NUT

08316-1005B-000   083161005B000

083161005B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY (LT-F400FL6 P28) of your Suzuki KINGQUAD 400 ASI 4WD of KINGQUAD. Let us know if you have any questions.
