Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER

MUDGUARD FOR SUZUKI KINGQUAD 400 2016

LABEL

Item numbers

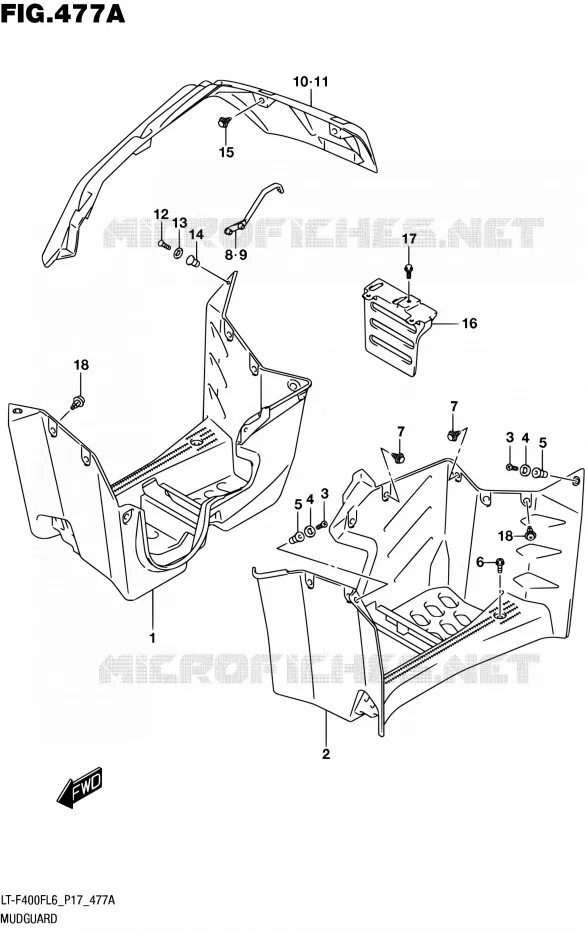

MUDGUARD Suzuki QUAD 400 KINGQUAD 2016 LT-F400F L6 (P17)
1
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
1
63331-27H12-291
MUDGUARD, FOOTREST RH (BLACK)

63331-27H10-291   6333127H10291

6333127H10291
Not available
2
63341-27H01-291
MUDGUARD, FOOTREST LH (BLACK)

63341-27H00-291  

6334127H00291
Not available
3
SCREW
SCREW

02142-0525B-000   021420525B000

021420525B000

Unit Price

4
WASHER (5.5X20X1.4)

09160-05046-000   0916005046000

0916005046000

Unit Price

5
NUT, WINDSCREEN
NUT

09159-05045-000   0915905045000

0915905045000

Unit Price

6
BOLT (6X16.5)

09111-06095-000   0911106095000

0911106095000

Unit Price

7
CLIP, FENDER
CLIP

09409-08335-000   0940908335000

0940908335000

Unit Price

8
BRACKET, EXTENSION RH

63140-27H00-000   6314027H00000

6314027H00000
Not available
9
BRACKET, EXTENSION LH

63150-27H00-000   6315027H00000

6315027H00000
Not available
10
EXTENSION, MUDGUARD, R(BLACK)
EXTENSION, RH (BLACK)

63351-27H11-291   6335127H11291

6335127H11291

Unit Price

11
EXTENSION, MUDGUARD, L(BLACK)
EXTENSION, LH (BLACK)

63361-27H11-291   6336127H11291

6336127H11291

Unit Price

12
SCREW
SCREW

02142-0520B-000   021420520B000

021420520B000

Unit Price

13
WASHER (5.5X20X1.4)

09160-05046-000   0916005046000

0916005046000

Unit Price

14
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

15
CLIP, FENDER
CLIP

09409-08335-000   0940908335000

0940908335000

Unit Price

16
COVER, REAR

63251-27H00-000   6325127H00000

6325127H00000
Not available
17
BOLT
BOLT (6X13.5)

09111-06088-000   0911106088000

0911106088000

Unit Price

18
CLIP
CLIP

09409-10306-000   0940910306000

0940910306000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the MUDGUARD of your Suzuki KINGQUAD 400 ASI 4WD of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 KINGQUAD 2016

Select your Suzuki 2016 model

400 KINGQUAD 2016 LT-F400F L6 (P17)

KINGQUAD 400 ASI 4WD

Suzuki KINGQUAD

Displacement: 400 cc
Year: 2016
Model code LT-F400F L6 (P17)
