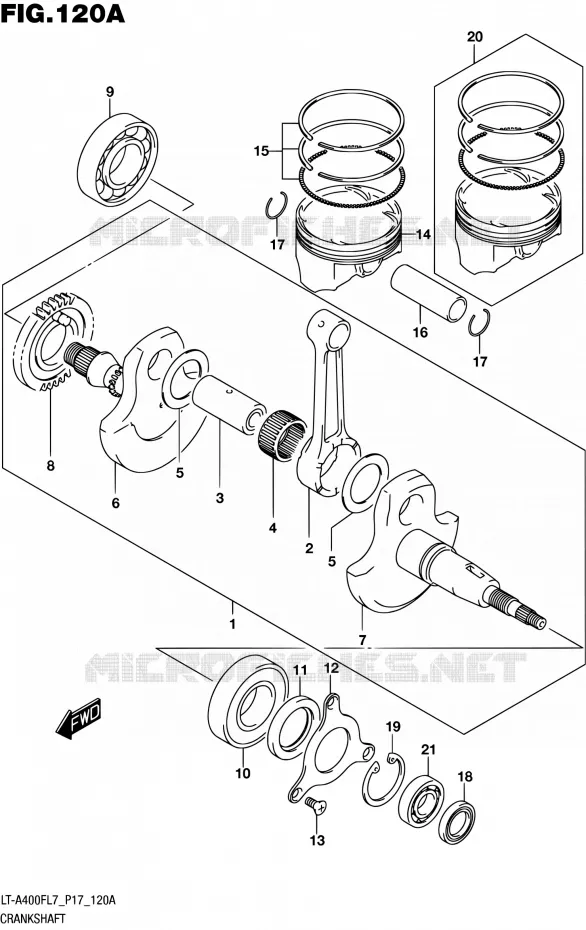

CRANKSHAFT FOR SUZUKI KINGQUAD 400 2017

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT SET
CRANKSHAFT ASSY

12201-38821-000 1220138821000

$1 015,97

Unit Price

ROD, CONNECTING
.CONNROD

12161-14D00-000 1216114D00000

$137,97

Unit Price

.PIN, CRANK

12210-38F00-000 1221038F00000

$58,97

Unit Price

BEARING
.BEARING (34X43X22)

09263-34005-000 0926334005000

$89,97

Unit Price

.WASHER (34X52X1)

09160-34003-000 0916034003000

$11,97

Unit Price

CRANKSHAFT, R
.CRANKSHAFT, RH (NT:24)

12220-38F12-000 1222038F12000

$284,97

Unit Price

CRANKSHAFT, L
.CRANKSHAFT, LH

12260-38F10-000 1226038F10000

$313,97

Unit Price

GEAR, CRANK BALANCER DRIVE
.GEAR, CRANK BALANCER DRIVE (NT:37)

12661-38F01-000 1266138F01000

$105,97

Unit Price

BEARING (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

BEARING
BEARING (35X72X17)

09262-35067-000 0926235067000

$99,97

Unit Price

SEAL, OIL(34X52X6)
OIL SEAL (34X52X6)

09282-34001-000 0928234001000

$50,97

Unit Price

RETAINER, CRANKSHAFT OIL SEAL
RETAINER, CRANKSHAFT OIL SEAL MIDDLE

12541-38F00-000 1254138F00000

$10,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

PISTON

12111-38F21-0F0 1211138F210F0

$119,97

Unit Price

RING SET, PISTON
RING SET, PISTON (STD)

12140-38F10-000 1214038F10000

$86,97

Unit Price

PIN, PISTON

12151-24A00-000 1215124A00000

$25,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

SEAL, OIL(25X42X6)
OIL SEAL (25X42X6)

09283-25095-000 0928325095000

$38,97

Unit Price

CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000 0833141479000

$4,97

Unit Price

PISTON SET (OS:0.5)

12100-38F21-050 1210038F21050

$163,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$37,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki KINGQUAD 400 ASi AUTOMATIC of KINGQUAD. Let us know if you have any questions.
