TRANSMISSION (1)

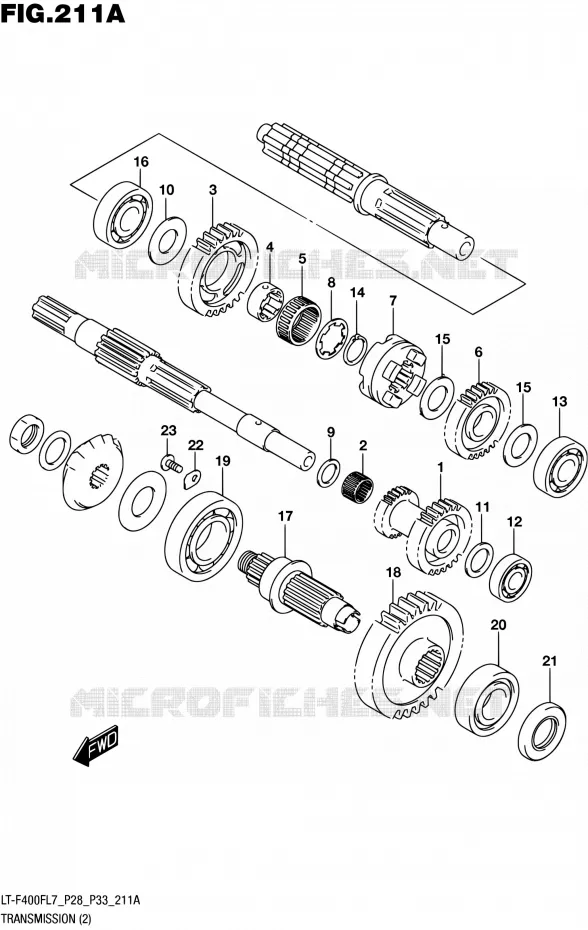

TRANSMISSION (2) FOR SUZUKI KINGQUAD 400 2017

GEAR SHIFTING ASSY (1) (LT-F400FL7 P28)

Item numbers

GEAR, SUB T/M IDLE
GEAR, SUB T/M IDLE (NT:13/19)

29150-27H00-000 2915027H00000

$150,97

Unit Price

BEARING (17X22X15.8)

09263-17045-000 0926317045000

$13,97

Unit Price

GEAR, SUB T/M DRIVE NO.1
GEAR, SUB T/M DRIVE NO.1 (NT:27)

29211-38F80-000 2921138F80000

$135,97

Unit Price

BUSH, SUB T/M DRIVE NO.1 GEAR
BUSH, SUB DRIVE NO.1

29215-38F80-000 2921538F80000

$25,97

Unit Price

BEARING (30X35X16)

09263-30056-000 0926330056000

$46,97

Unit Price

GEAR, SUB T/M DRIVE NO.2
GEAR, SUB T/M DRIVE NO.2 (NT:21)

29220-38F50-000 2922038F50000

$102,97

Unit Price

DOG, SUB T/M SELECT SLIDING
DOG, SUB T/M SLIDING

29231-38F80-000 2923138F80000

$80,97

Unit Price

WASHER
LOCK WASHER

09167-25017-000 0916725017000

$5,97

Unit Price

CLUTCH THRUST WASHER
WASHER

08211-17282-000 0821117282000

$3,97

Unit Price

SHIM, 25X40X1.0
SHIM (25X40X1)

09181-25251-000 0918125251000

$5,97

Unit Price

WASHER
SHIM (15X26X1)

09181-15195-000 0918115195000

$4,97

Unit Price

BALL BEARING 15X42X1

09262-15022-000

09262-15062-000

$30,97

Unit Price

BEARING
BEARING (20X47X14)

09262-20139-000 0926220139000

$56,97

Unit Price

3RD PINION CIRCLIP
CIRCLIP

09380-25003-000 0938025003000

$4,97

Unit Price

SHIM

08211-20301-000

09181-20195-000

$3,97

Unit Price

BEARING
BEARING (25X52X14)

09262-25124-000 0926225124000

$63,97

Unit Price

SHAFT, SUB T/M OUTPUT

29121-38F60-000 2912138F60000

$127,97

Unit Price

GEAR, SUB T/M DRIVEN
GEAR, SUB T/M DRIVEN (NT:35)

29311-38F60-000 2931138F60000

$121,97

Unit Price

BEARING (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

BEARING (25X52X13)

09262-25136-000 0926225136000

$78,97

Unit Price

OIL SEAL
OIL SEAL (25X45X5)

09283-25076-000 0928325076000

$16,97

Unit Price

RETAINER
RETAINER, SEC DRIVE SFT

24741-21A00-000 2474121A00000

$4,97

Unit Price

BOLT, (6X12)
SCREW (6X12)

09125-06122-000 0912506122000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.
