CYLINDER

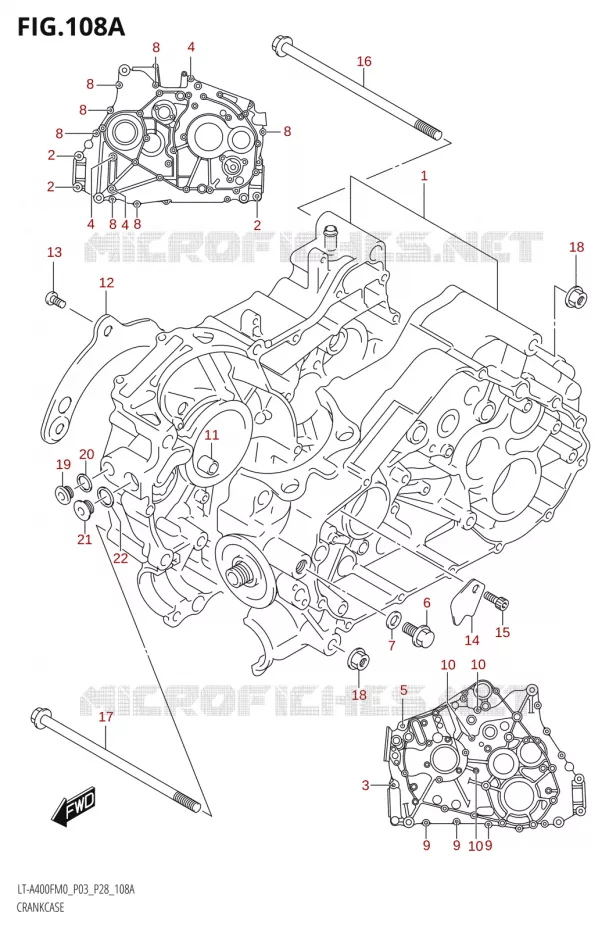

CASING FOR SUZUKI KINGQUAD 400 2020

CASING

CRANKCASE SET

11302-38812-000 1130238812000

$1 760,97

Unit Price

BOLT

09103-08081-000

01550-08507-000

$5,97

Unit Price

BOLT

09103-08081-000

01550-08507-000

$5,97

Unit Price

.BOLT (8X85)

09103-08300-000 0910308300000

$4,97

Unit Price

.BOLT (8X60)

09103-08217-000 0910308217000

$4,97

Unit Price

PLUG, PRESSURE SW
.PLUG (14X12)

09247-14015-000 0924714015000

$6,97

Unit Price

GASKET, 13.8X18.8X0.4
.GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$2,97

Unit Price

.BOLT

01547-0645A-000 015470645A000

$3,97

Unit Price

.BOLT

01547-0645A-000 015470645A000

$3,97

Unit Price

.BOLT

01547-0670A-000 015470670A000

$4,97

Unit Price

.PIN

04211-13189-000 0421113189000

$3,97

Unit Price

PLATE, OIL GUIDE

11317-38F20-000 1131738F20000

$5,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

PLATE, OIL GUIDE, L
PLATE, OIL GUIDE LH

11323-38F00-000 1132338F00000

$3,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000 0910310118000

$17,97

Unit Price

09103-10136
BOLT (10X180)

11611-03G00-000 1161103G00000

Not available

NUT

09159-10115-000 0915910115000

$5,97

Unit Price

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

PLUG, M18
PLUG (18X8)

09248-18011-000 0924818011000

$10,97

Unit Price

GASKET, OIL LAMP SWIT
GASKET (18X24X2)

09168-18009-000 0916818009000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki KINGQUAD 400 ASI 4WD SPECIAL EDITION of KINGQUAD. Let us know if you have any questions.
