WIRING HARNESS (MODEL K4) REFER TO FIG.30B(F-12) FOR MODEL K5/K6/K7

WIRING HARNESS (MODEL K5 / K6 / K7) FOR SUZUKI QUADSPORT 400 2003

* COLOR PICTURE LT-Z400K5 *

Item numbers

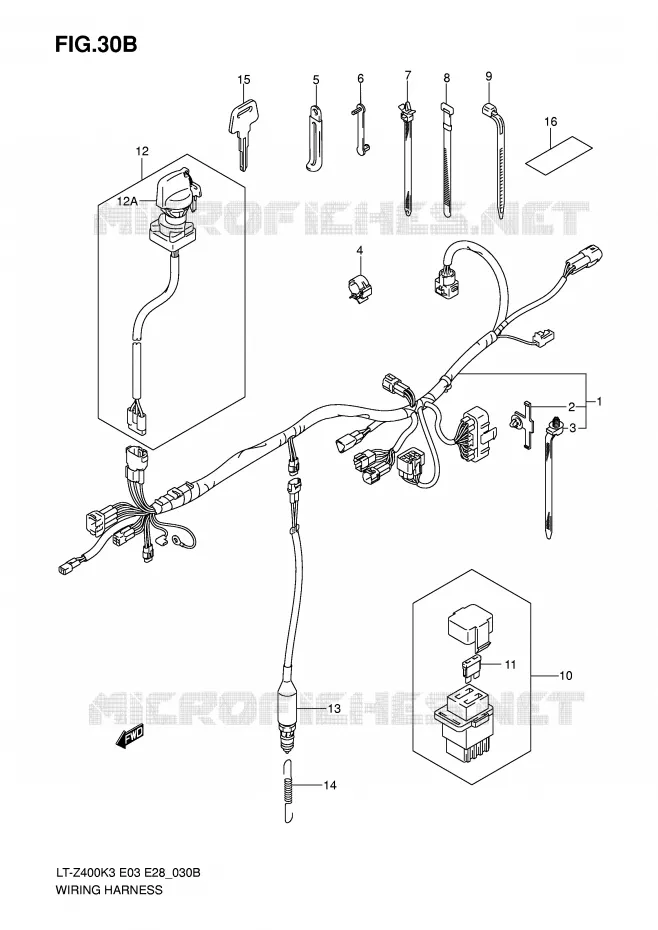

WIRING HARNESS (MODEL K5/K6/K7) Suzuki QUAD 400 QUADSPORT 2003 LT-Z400K3(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
12A
13
14
15
15
15
15
16
1
HARNESS, WIRING

36610-07G30-000   3661007G30000

3661007G30000

Unit Price

2
CLAMP

09407-05411-000   0940705411000

0940705411000
Not available
3
CLAMP

09407-17403-000   0940717403000

0940717403000

Unit Price

4
CLAMP

09403-20403-000   0940320403000

0940320403000

Unit Price

5
CLAMP<br />CLAMP (L:135)
CLAMP
CLAMP (L:135)

09404-06435-000   0940406435000

0940406435000

Unit Price

6
CLAMP<br />CLAMP (L:33)
CLAMP
CLAMP (L:33)

09407-03401-000   0940703401000

0940703401000

Unit Price

7
CLAMP<br />CLAMP (L:90)
CLAMP
CLAMP (L:90)

09407-11402-000   0940711402000

0940711402000

Unit Price

8
FUEL HOSE CLAMP<br />CLAMP (L:120)
FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000   0940712402000

0940712402000

Unit Price

9
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

10
BOX ASSY, COOLFAN FUS
BOX ASSY, COOLING FAN FUSE

36740-19B10-000   3674019B10000

3674019B10000

Unit Price

11
FUSE (10A)
FUSE (10A)

09481-10101-000   0948110101000

0948110101000

Unit Price

12
SWITCH ASSY, IGNITION

37110-07G30-000  

37110-07G31-000
 3711007G30000

Unit Price

12A
MASCOT, KEY

37142-19B00-000  

37142-19B01-000
 3714219B00000

Unit Price

13
SWITCH ASSY, STOP LAMP

37740-07G01-000  

37740-07G02-000
 3774007G01000

Unit Price

14
SPRING, STOP LAMP SWITCH
SPRING

43115-07G00-000   4311507G00000

4311507G00000

Unit Price

15
KEY, BLANK (TYPE:C)

37146-19B00-000   3714619B00000

3714619B00000

Unit Price

15
KEY, BLANK (TYPE:D)

37146-19B10-000   3714619B10000

3714619B10000

Unit Price

15
KEY, BLANK (TYPE:E)

37146-19B20-000   3714619B20000

3714619B20000

Unit Price

15
KEY, BLANK (TYPE:F)

37146-19B30-000   3714619B30000

3714619B30000

Unit Price

16
PROTECTOR, WIRING HARNESS

36920-07G00-000   3692007G00000

3692007G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 QUADSPORT 2003
