WIRING HARNESS (MODEL K4) REFER TO FIG.30B(F-12) FOR MODEL K5/K6/K7

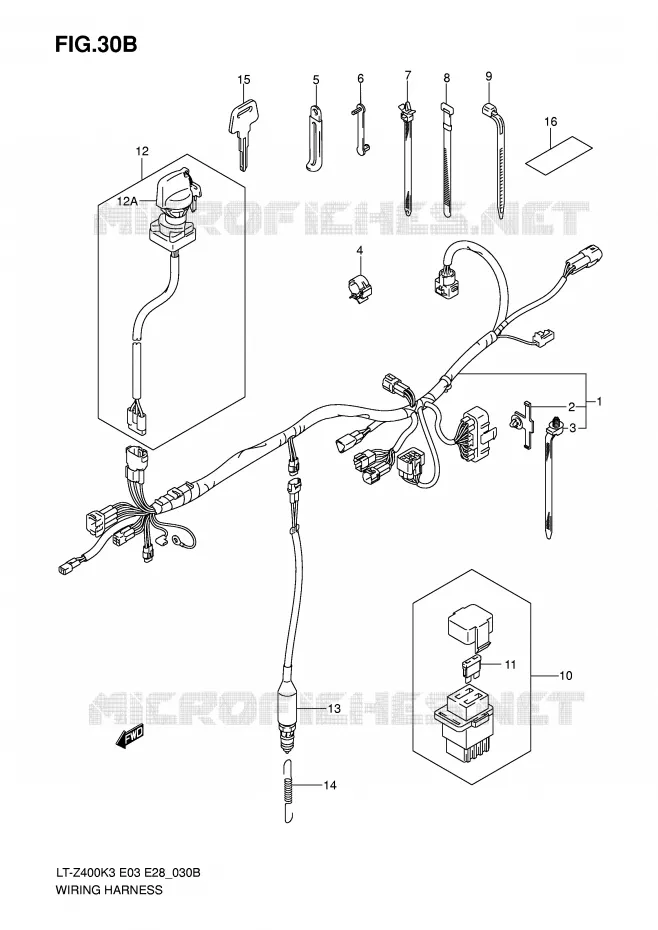

WIRING HARNESS (MODEL K5 / K6 / K7) FOR SUZUKI QUADSPORT 400 2004

* COLOR PICTURE LT-Z400K5 *

Item numbers

HARNESS, WIRING

36610-07G30-000 3661007G30000

$622,97

Unit Price

CLAMP

09407-05411-000 0940705411000

Not available

CLAMP

09407-17403-000 0940717403000

$8,97

Unit Price

CLAMP

09403-20403-000 0940320403000

$5,97

Unit Price

CLAMP
CLAMP (L:135)

09404-06435-000 0940406435000

$5,97

Unit Price

CLAMP
CLAMP (L:33)

09407-03401-000 0940703401000

$5,97

Unit Price

CLAMP
CLAMP (L:90)

09407-11402-000 0940711402000

$3,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

BOX ASSY, COOLFAN FUS
BOX ASSY, COOLING FAN FUSE

36740-19B10-000 3674019B10000

$22,97

Unit Price

FUSE (10A)

09481-10101-000 0948110101000

$2,97

Unit Price

SWITCH ASSY, IGNITION

37110-07G30-000

37110-07G31-000

$162,97

Unit Price

12A

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-07G01-000

37740-07G02-000

$155,97

Unit Price

SPRING, STOP LAMP SWITCH
SPRING

43115-07G00-000 4311507G00000

$17,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK (TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK (TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

PROTECTOR, WIRING HARNESS

36920-07G00-000 3692007G00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
