CYLINDER

CRANKCASE FOR SUZUKI QUADSPORT 400 2005

CRANKCASE COVER

Item numbers

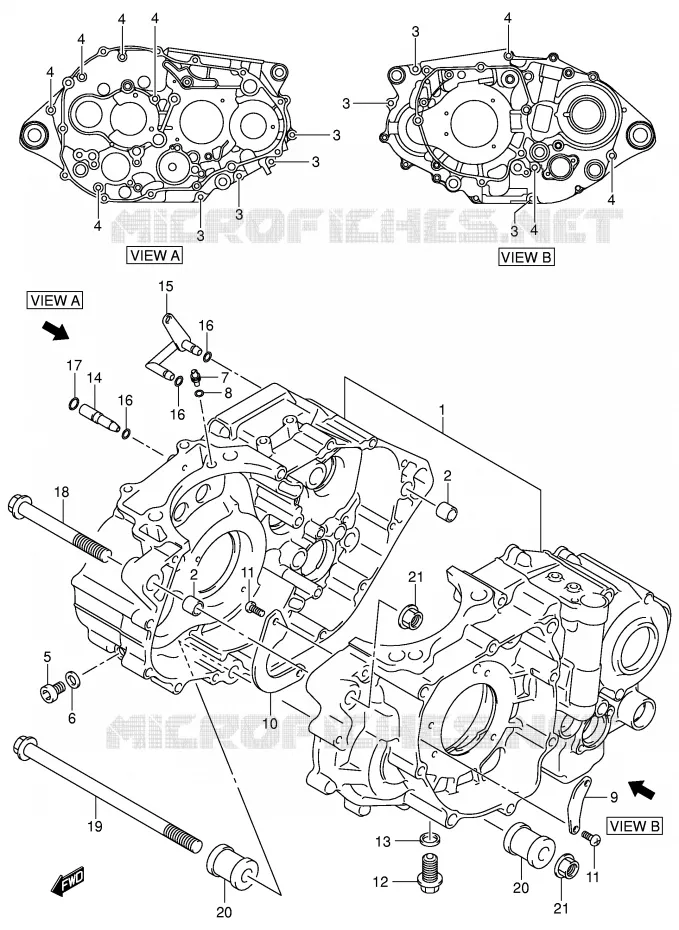

CRANKCASE Suzuki QUAD 400 QUADSPORT 2005 LT-Z400K5(E3/E28)
1
1
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
16
17
18
19
20
20
21
21
1
CRANKCASE SET

11301-07810-000  

11301-07812-000
 1130107810000

Unit Price

2
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

3
BOLT

01547-06403-000  

01547-0640B-000
 0154706403000

Unit Price

4
BOLT

01547-06703-000  

01547-0670A-000
 0154706703000

Unit Price

5
PLUG,OIL GALL<br />PLUG, OIL GALLERY
PLUG, OIL GALL
PLUG, OIL GALLERY

09248-10010-000   0924810010000

0924810010000

Unit Price

6
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

7
JET,OIL<br />JET, OIL GALLERY CYLINDER
JET, OIL
JET, OIL GALLERY CYLINDER

09493-28010-000   0949328010000

0949328010000

Unit Price

8
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

9
SEPARATOR, CRANKCASE OIL NO.1
SEPARATOR, OIL NO.1

11323-29F00-000   1132329F00000

1132329F00000

Unit Price

10
SEPARATOR, CRANKCASE OIL NO.2
SEPARATOR, OIL NO.2

11324-29F00-000   1132429F00000

1132429F00000

Unit Price

11
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

12
PLUG, OIL DRAIN

09247-12011-000   0924712011000

0924712011000

Unit Price

12
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-12106-000   0924712106000

0924712106000

Unit Price

13
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
14
PIPE, OIL INNER NO.1

11451-29F00-000   1145129F00000

1145129F00000

Unit Price

15
PIPE, T/M OIL INNER NO.2

11460-07G00-000   1146007G00000

1146007G00000

Unit Price

16
O-RING<br />O RING (D:1.9,ID:4.8)
O-RING
O RING (D:1.9, ID:4.8)

09280-05004-000   0928005004000

0928005004000

Unit Price

17
O RING (D:1.9, ID:6.8)

09280-07004-000   0928007004000

0928007004000

Unit Price

18
BOLT (10X100)

09103-10110-000   0910310110000

0910310110000

Unit Price

19
BOLT,L:180<br />BOLT (10X180)
BOLT, L:180
BOLT (10X180)

09103-10136-000   0910310136000

0910310136000

Unit Price

20
SPACER, ENG MTG(L:30)
SPACER, ENGINE MOUNTING (L:30)

11611-09F51-000   1161109F51000

1161109F51000

Unit Price

21
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
