CRANK BALANCER

CAM SHAFT / VALVE FOR SUZUKI BURGMAN 400 2002

TIMING

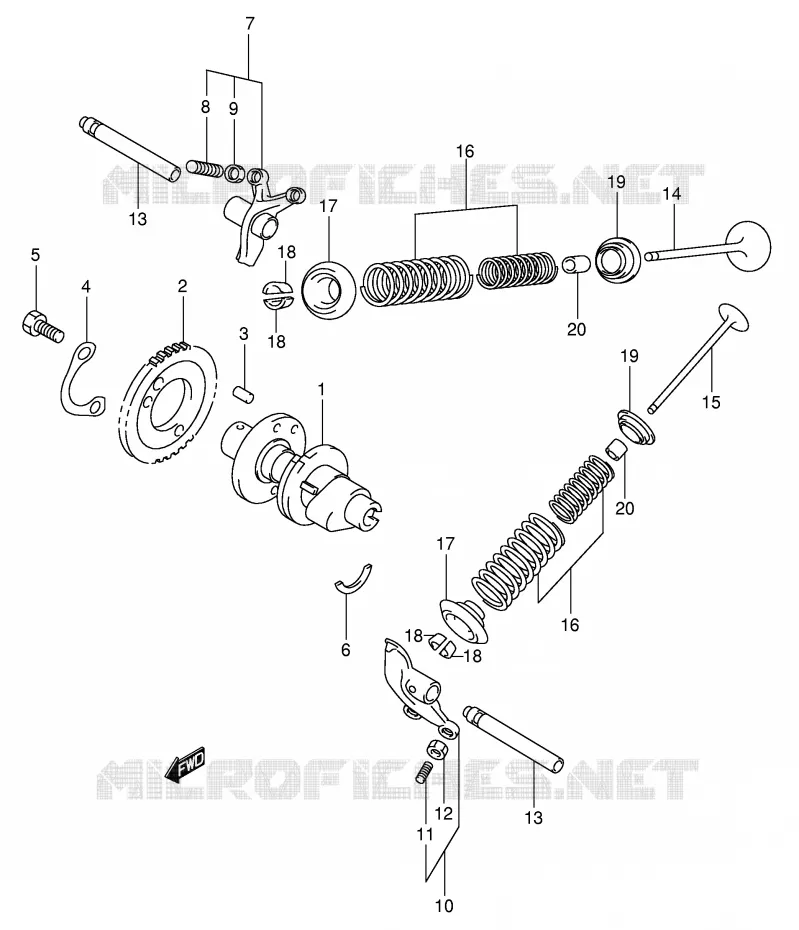

CAM SHAFT/VALVE Suzuki SCOOTER 400 BURGMAN 2002 AN400RK2(E2)
1
SHAFT, CAM

12710-15F01-000   1271015F01000

1271015F01000

Unit Price

2
SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:34)

12741-14D50-000   1274114D50000

1274114D50000

Unit Price

3
KNOCK PIN, SPROCKET
PIN, SPROCKET

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-44B00-000   1274744B00000

1274744B00000

Unit Price

5
BOLT, SPROCKET
BOLT (6X10.5)

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM, VALVE ROCKER INTAKE

12840-15F00-000  

12840-15G00-000
 1284015F00000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW, TAPPET ADJDUSTING

12842-17C50-000   1284217C50000

1284217C50000

Unit Price

9
NUT, TAPPET ADJUSTING
NUT, TAPPET ADJUSTING

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

10
ARM, VALVE ROCKER EXHAUST

12850-15F00-000   1285015F00000

1285015F00000
Not available
11
SCREW, TAPPET ADJUSTING

12842-17C50-000   1284217C50000

1284217C50000

Unit Price

12
NUT, TAPPET ADJUSTING
NUT, TAPPET ADJUSTING

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

13
DISCONTINUE
SHAFT, VALVE ROCKER ARM

12861-14F00-000   1286114F00000

1286114F00000
Not available
14
VALVE, INTAKE

12911-14D01-000  

12911-14D10-000
 1291114D01000

Unit Price

15
VALVE, EXHAUST

12912-14D01-000   1291214D01000

1291214D01000

Unit Price

16
SPRING SET, VALVE
SPRING SET, VALVE

12920-06B00-000   1292006B00000

1292006B00000

Unit Price

17
RETAINER, VALVE SPRING
RETAINER, VALVE SPRING

12931-27A01-000   1293127A01000

1293127A01000

Unit Price

18
COTTER, VALVE
COTTER, VALVE

12932-27A00-000   1293227A00000

1293227A00000

Unit Price

19
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-81400-000   1293381400000

1293381400000

Unit Price

20
OIL SEAL
OIL SEAL

09289-05011-000   0928905011000

0928905011000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT/VALVE of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
