FRAME (MODEL K7 / K8 / K9) FOR SUZUKI BURGMAN 400 2010

FRAME (MODEL L0)

Item numbers

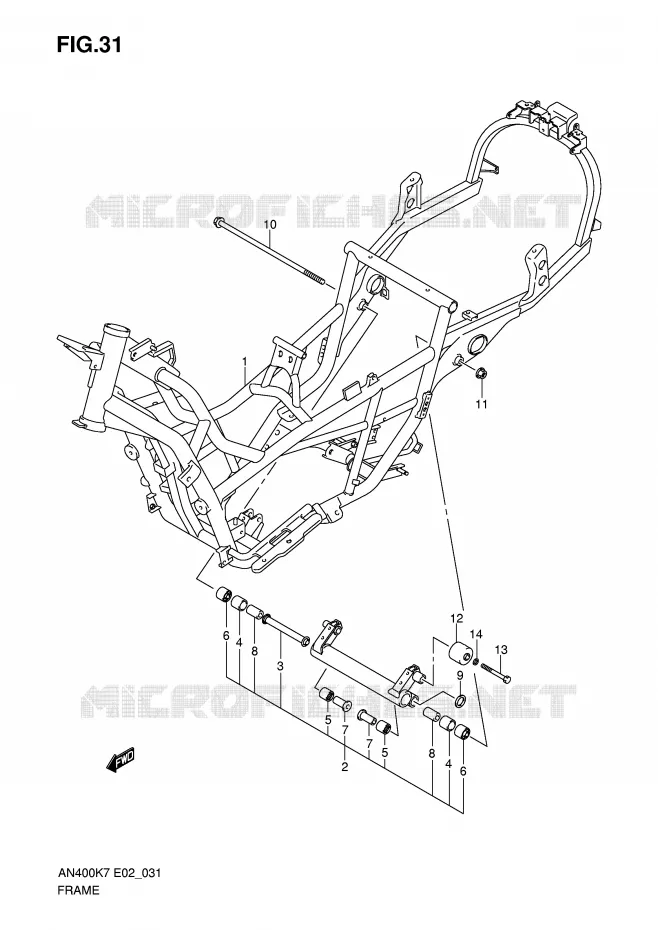

FRAME (MODEL K7/K8/K9) Suzuki SCOOTER 400 BURGMAN 2010 AN400AL0(E2)
1
1
1
1
2
3
4
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
1
FRAME

41100-05H04-000   4110005H04000

4110005H04000
Not available
1
DISCONTINUE
FRAME

41100-05H12-000   4110005H12000

4110005H12000
Not available
1
DISCONTINUE
FRAME

41100-05H20-000  

4110005H20000
Not available
1
FRAME

41100-05H30-000   4110005H30000

4110005H30000
Not available
2
BRACKET SET, CRANKCASE

41180-05860-000   4118005860000

4118005860000
Not available
3
SPACER, CRANKCASE BRKT CTR
SPACER, BRACKET

42610-05H00-000   4261005H00000

4261005H00000

Unit Price

4
BEARING (25X33X30)

09263-25063-000   0926325063000

0926325063000

Unit Price

5
ROLLER BEARING,20X2
ROLLER BEARING, 20X2

09263-20064-000  

09263-20120-000
 0926320064000

Unit Price

6
BUSH

09319-12065-000   0931912065000

0931912065000

Unit Price

7
SPACER, CRANKCASE BRKT ENG
SPACER, ENGINE

41214-14F10-000   4121414F10000

4121414F10000

Unit Price

8
SPACER, CRANKCASE BRKT BRG
SPACER, BRACKET

41213-14F00-000   4121314F00000

4121314F00000

Unit Price

9
WASHER
WASHER (12.5X35X3.2)

09160-12044-000   0916012044000

0916012044000

Unit Price

10
BOLT (12X440)

09103-12086-000   0910312086000

0910312086000

Unit Price

11
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

12
CUSHION, SWING STOP

41185-14F00-000   4118514F00000

4118514F00000

Unit Price

13
BOLT
BOLT (12X62)

09103-12065-000   0910312065000

0910312065000

Unit Price

14
WASHER
WASHER

08322-0112B-000   083220112B000

083220112B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME (MODEL K7/K8/K9) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
