Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

SHOCK ABSORBER LINKAGE FOR SUZUKI BURGMAN 400 2010

REAR WHEEL (AN400K7 / K8 / K9 / L0) REFER TO FIG.59A(J-10) FOR AN400AK9/AL0/ZAL0

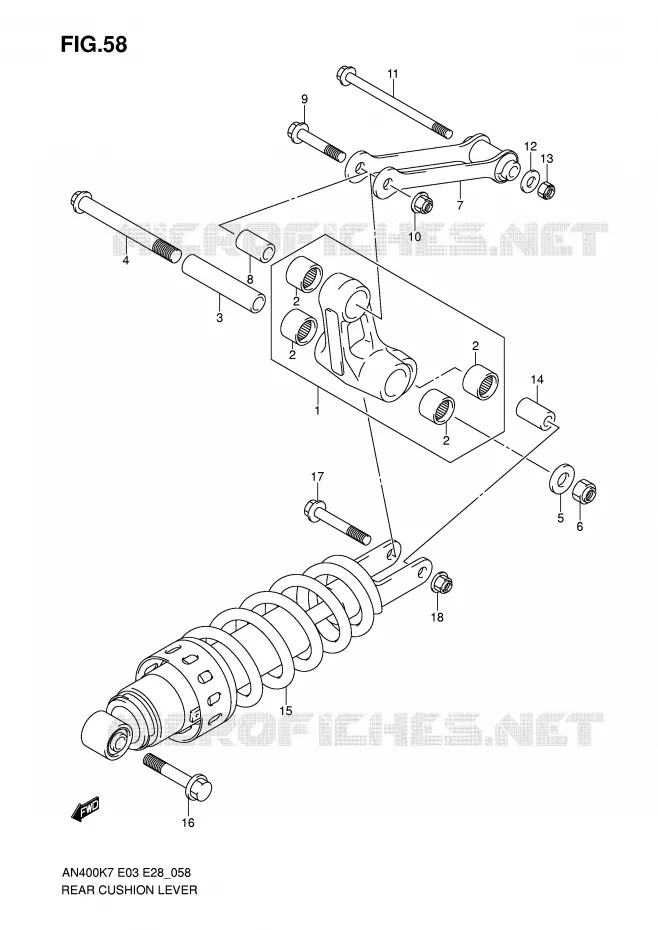

SHOCK ABSORBER LINKAGE Suzuki SCOOTER 400 BURGMAN 2010 AN400L0(E3/E28)
1
DISCONTINUE
LEVER SET, REAR CUSHION

62601-05820-000   6260105820000

6260105820000
Not available
2
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

3
SPACER, RR CUSHION ROD
SPACER, REAR CUSHION LEVER

62646-08G00-000   6264608G00000

6264608G00000

Unit Price

4
BOLT, RR CUSHION ROD
BOLT, REAR CUSHION LEVER

62621-19D00-000   6262119D00000

6262119D00000

Unit Price

5
WASHER
WASHER, REAR CUSHION LEVER

09160-12080-000   0916012080000

0916012080000

Unit Price

6
NUT
NUT, REAR CUSHION LEVER CTR

08319-2112A-000   083192112A000

083192112A000

Unit Price

7
ROD, RR CUSHION LEVER
ROD, REAR CUSHION LEVER

62640-14F30-000   6264014F30000

6264014F30000

Unit Price

8
SPACER,RR CUSHION LEVER<br />SPACER, REAR CUSHION ROD
SPACER, RR CUSHION LEVER
SPACER, REAR CUSHION ROD

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

9
BOLT(10X54)<br />BOLT, REAR CUSHION ROD FR (10X54)
BOLT(10X54)
BOLT, REAR CUSHION ROD FR (10X54)

09103-10101-000   0910310101000

0910310101000

Unit Price

10
NUT<br />NUT, REAR CUSHION ROD FR
NUT
NUT, REAR CUSHION ROD FR

08319-3110A-000   083193110A000

083193110A000

Unit Price

11
BOLT(10X132)
BOLT, REAR CUSHION ROD RR (10X132)

09103-10198-000   0910310198000

0910310198000

Unit Price

12
WASHER<br />WASHER, REAR CUSHION ROD
WASHER
WASHER, REAR CUSHION ROD

09160-10039-000   0916010039000

0916010039000

Unit Price

13
FINAL GEAR CASE NUT<br />NUT, REAR CUSHION ROD RR
FINAL GEAR CASE NUT
NUT, REAR CUSHION ROD RR

09159-10027-000   0915910027000

0915910027000

Unit Price

14
SPACER,RR CUSHION LEVER<br />SPACER, REAR CUSHION LEVER
SPACER, RR CUSHION LEVER
SPACER, REAR CUSHION LEVER

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

15
ABSORBER ASSY, REAR S

62100-05H10-000  

62100-05H11-000
 6210005H10000

Unit Price

15
ABSORBER ASSY, REAR SHOCK

62100-05H20-000   6210005H20000

6210005H20000
Not available
16
BOLT 10X48<br />BOLT, REAR SHOCK ABS FR (10X48)
BOLT 10X48
BOLT, REAR SHOCK ABS FR (10X48)

09103-10126-000   0910310126000

0910310126000

Unit Price

17
BOLT 10 X 55
BOLT, REAR SHOCK ABS RR (10X55)

09103-10143-000   0910310143000

0910310143000

Unit Price

18
NUT<br />NUT, REAR SHOCK ABS RR
NUT
NUT, REAR SHOCK ABS RR

08319-3110A-000   083193110A000

083193110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
