BATTERY (AN400ZAL1 E33)

ELECTRICAL FOR SUZUKI BURGMAN 400 2011

SPEEDOMETER (AN400L1 E3)

Item numbers

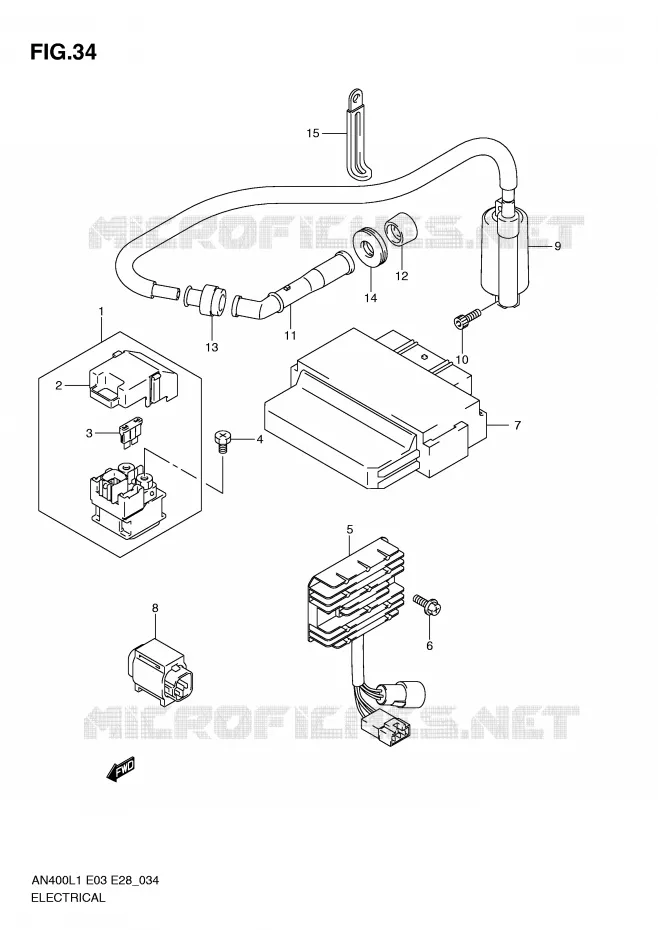

ELECTRICAL Suzuki SCOOTER 400 BURGMAN 2011 AN400AL1(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
RELAY ASSY,STARTING MOTOR
RELAY ASSY, STARTING MOTOR

31800-21E20-000  

31800-21E30-000
 3180021E20000

Unit Price

2
COVER
COVER

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
FUSE (30A)
FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
DISCONTINUE
RECTIFIER ASSY

32800-05H20-000   3280005H20000

3280005H20000
Not available
6
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

7
DISCONTINUE
CONTROL UNIT, FI

32920-05HF0-000   3292005HF0000

3292005HF0000
Not available
8
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

9
COIL ASSY, IGNITION

33410-05H00-000   3341005H00000

3341005H00000

Unit Price

10
BOLT

07130-0525A-000   071300525A000

071300525A000

Unit Price

11
CAP,SPARK PLUG<br />CAP ASSY, SPARK PLUG
CAP, SPARK PLUG
CAP ASSY, SPARK PLUG

33510-48B10-000   3351048B10000

3351048B10000

Unit Price

12
SEAL, SPARK PLUG

33541-23E10-000   3354123E10000

3354123E10000

Unit Price

13
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

14
COVER, SPARK PLUG CAP
COVER, SPARK PLUG CAP

33543-33E01-000   3354333E01000

3354333E01000

Unit Price

15
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 400 BURGMAN 2011
