Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST BRACE

FOOTREST FOR SUZUKI BURGMAN 400 2019

LOWER FAIRING

Item numbers

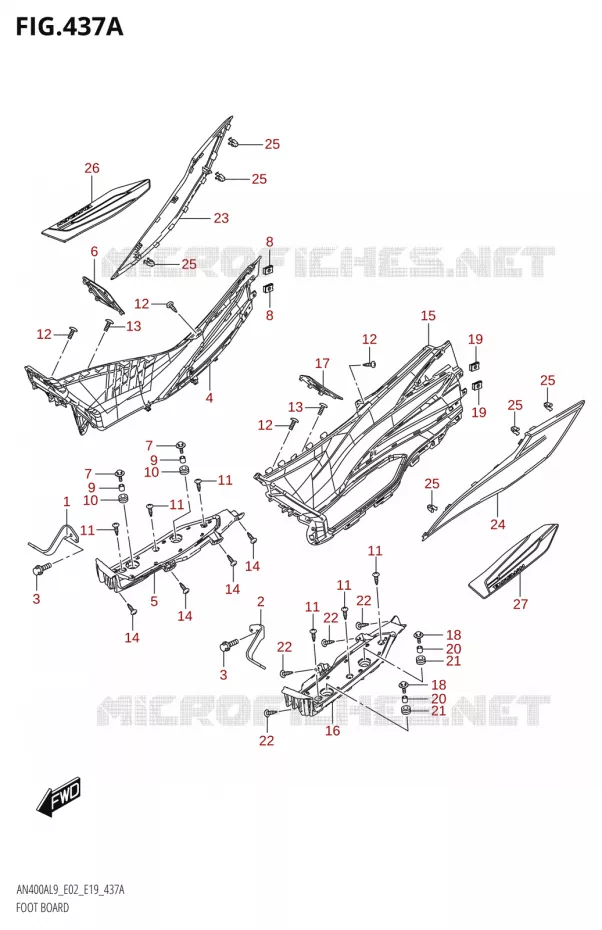

FOOTREST Suzuki SCOOTER 400 BURGMAN 2019 AN400A L9 (E02,E19)
1
2
3
3
4
5
6
7
7
8
8
9
9
10
10
11
11
11
11
11
11
12
12
12
12
13
13
14
14
14
14
15
16
17
18
18
19
19
20
20
21
21
22
22
22
22
23
24
25
25
25
25
25
25
26
27
1
BRACKET COMP, FOOTBOARD, R
BRACKET, FOOTBOARD RH

48190-19K00-000   4819019K00000

4819019K00000

Unit Price

2
BRACKET COMP, FOOTBOARD, L
BRACKET, FOOTBOARD LH

48290-19K00-000   4829019K00000

4829019K00000

Unit Price

3
BOLT
BOLT, FOOTBOARD BRACKET

01550-0816A-000   015500816A000

015500816A000

Unit Price

4
FOOTBOARD, NO.1, R
FOOTBOARD, NO.1 RH

48121-19K00-000   4812119K00000

4812119K00000

Unit Price

5
FOOTBOARD, NO.2, R
FOOTBOARD, NO.2 RH

48133-19K00-000   4813319K00000

4813319K00000

Unit Price

6
FOOTBOARD, NO.3, R
FOOTBOARD, NO.3 RH

48135-19K00-000   4813519K00000

4813519K00000

Unit Price

7
BOLT(6X25)<br />BOLT, FOOTBOARD
BOLT(6X25)
BOLT, FOOTBOARD

09116-06131-000   0911606131000

0911606131000

Unit Price

8
NUT, STEERING<br />NUT, FOOTBOARD
NUT, STEERING
NUT, FOOTBOARD

09148-05038-000   0914805038000

0914805038000

Unit Price

9
SPACER,8.5X12X11<br />SPACER, FOOTBOARD
SPACER, 8.5X12X11
SPACER, FOOTBOARD

09180-08189-000   0918008189000

0918008189000

Unit Price

10
CUSHION(11.5X24X12.2)
CUSHION, FOOTBOARD

09320-11022-000   0932011022000

0932011022000

Unit Price

11
SCREW

03541-0512A-000   035410512A000

035410512A000

Unit Price

12
SCREW

03541-0512A-000   035410512A000

035410512A000

Unit Price

13
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

14
SCREW<br />SCREW, FOOTBOARD NO.1 & NO.2
SCREW
SCREW, FOOTBOARD NO.1 & NO.2

03541-0516A-000   035410516A000

035410516A000

Unit Price

15
FOOTBOARD, NO.1, L
FOOTBOARD, NO.1 LH

48122-19K00-000   4812219K00000

4812219K00000

Unit Price

16
FOOTBOARD, NO.2, L
FOOTBOARD, NO.2 LH

48134-19K00-000   4813419K00000

4813419K00000

Unit Price

17
FOOTBOARD, NO.3, L
FOOTBOARD, NO.3 LH

48136-19K00-000   4813619K00000

4813619K00000

Unit Price

18
BOLT(6X25)<br />BOLT, FOOTBOARD
BOLT(6X25)
BOLT, FOOTBOARD

09116-06131-000   0911606131000

0911606131000

Unit Price

19
NUT, STEERING<br />NUT, FOOTBOARD
NUT, STEERING
NUT, FOOTBOARD

09148-05038-000   0914805038000

0914805038000

Unit Price

20
SPACER,8.5X12X11<br />SPACER, FOOTBOARD
SPACER, 8.5X12X11
SPACER, FOOTBOARD

09180-08189-000   0918008189000

0918008189000

Unit Price

21
CUSHION(11.5X24X12.2)
CUSHION, FOOTBOARD

09320-11022-000   0932011022000

0932011022000

Unit Price

22
SCREW<br />SCREW, FOOTBOARD NO.1 & NO.2
SCREW
SCREW, FOOTBOARD NO.1 & NO.2

03541-0516A-000   035410516A000

035410516A000

Unit Price

23
COVER, LEG CENTER RH

48141-19K00-000   4814119K00000

4814119K00000

Unit Price

24
COVER, LEG CENTER LH

48142-19K00-000   4814219K00000

4814219K00000

Unit Price

25
CLIP

09409-08326-000   0940908326000

0940908326000

Unit Price

26
MAT, FLOOR FRONT, R
MAT, FLOOR FRONT RH

48211-19K00-000   4821119K00000

4821119K00000

Unit Price

27
MAT, FLOOR FRONT, L
MAT, FLOOR FRONT LH

48221-19K00-000   4822119K00000

4822119K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
