FRONT FORK

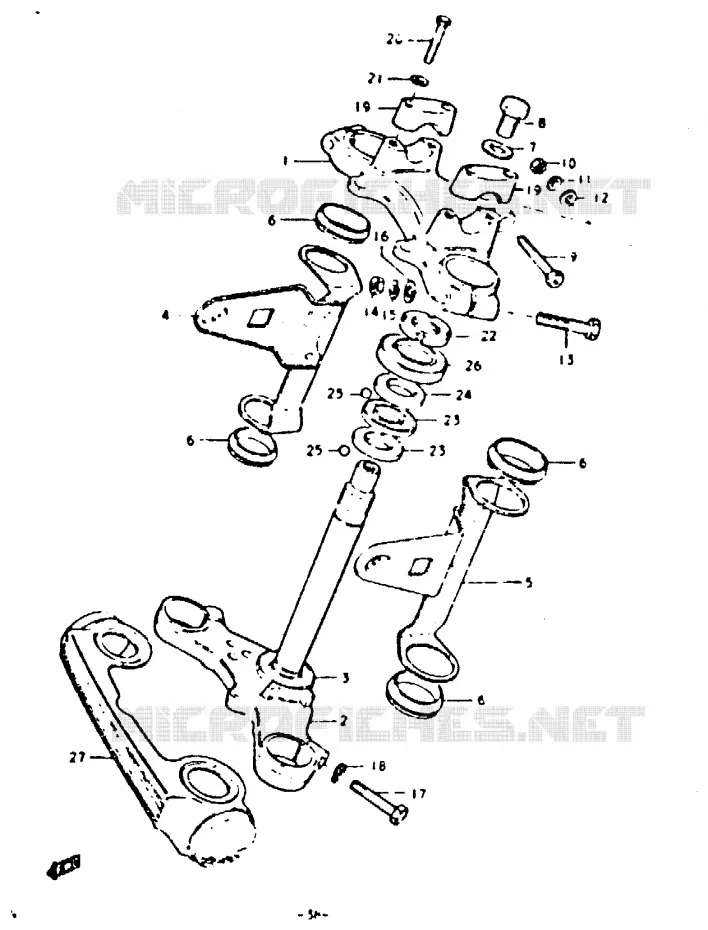

STEERING COLUMN FOR SUZUKI GS 425 1992

FRONT WHEEL (GS425N)

STEERING STEM HEAD

51311-44001-291 5131144001291

Not available

DISCONTINUED

51410-44002-000 5141044002000

Not available

RACE, STEERING OUTER LWR
OUTER RACE

51621-33001-000 5162133001000

$15,97

Unit Price

DISCONTINUED

51530-44001-291 5153044001291

Not available

DISCONTINUED

51540-44001-291 5154044001291

Not available

CUSHION, HEADLAMP BRACKET

51553-44000-000 5155344000000

$11,97

Unit Price

DISCONTINUED

09160-12006-000 0916012006000

Not available

BOLT(12X20)
BOLT

09104-12013-000 0910412013000

$8,97

Unit Price

DISCONTINUED

01527-08507-000 0152708507000

Not available

NUT

08310-12088-000

08310-00087-000

$2,97

Unit Price

.LOCK WASHER

08321-21038-000 0832121038000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

DISCONTINUED

01527-10607-000 0152710607000

Not available

NUT

08310-12108-000

08310-00107-000

$3,97

Unit Price

.LOCK WASHER

08321-21108-000 0832121108000

Not available

WASHER, LOWER LH

08322-11108-000 0832211108000

Not available

BOLT

01107-10408-000

01500-10407-000

$5,97

Unit Price

.LOCK WASHER

08321-21108-000 0832121108000

Not available

HOLDER, HANDLE UPR
CLAMP, HANDLEBAR UPPER

56211-27200-291 5621127200291

$26,97

Unit Price

BOLT, CROWN 8X35
BOLT

01204-08357-000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

NUT, STEERING STEM(25X44X10)
NUT, STEERING STEM

51631-28000-000 5163128000000

$20,97

Unit Price

RACE, STEERING INNER LWR
INNER RACE

51611-33002-000 5161133002000

$15,97

Unit Price

DISCONTINUE
OUTER RACE

51621-30001-000 5162130001000

Not available

STEEL BALL
STEEL BAIL

06111-08003-000 0611108003000

$1,97

Unit Price

DISCONTINUE
DUST SEAL

51643-30000-000 5164330000000

Not available

DISCONTINUE
COVER, FRONT FORK

51870-47000-000 5187047000000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki of GS. Let us know if you have any questions.
