MUFFLER

CLUTCH FOR SUZUKI GS-E 450 1987

TRANSMISSION

GEAR, PRIMARY DRIVEN (NT:76)

21200-44100-000 2120044100000

Not available

WASHER

08211-25381-000 0821125381000

Not available

HUB, SLEEVE

21411-44100-000 2141144100000

Not available

DRIVE SPROCKET NUT

09140-20002-000

09140-20001-000

$5,97

Unit Price

WASHER

09167-20006-000 0916720006000

$3,97

Unit Price

WASHER(20X44X3)
WASHER (20*44*3)

09160-20015-000 0916020015000

$9,97

Unit Price

PLATE, CLUTCH DRIVE

21441-37400-000

21441-37430-000

$36,97

Unit Price

PLATE, CLUTCH DRIVEN(T:1.6)

21451-45000-000

21451-28C31-000

$15,97

Unit Price

*21462-14301
DISK, PRESSURE

21462-16501-000 2146216501000

$67,97

Unit Price

SPRING

09440-19013-000

09440-19027-000

$11,97

Unit Price

BOLT

01107-06167-000

01500-06167-000

$3,97

Unit Price

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

PIECE, CLUTCH PUSH
PIECE, PUSH

23121-44100-000 2312144100000

$31,97

Unit Price

BEARING(15X28X2)
BEARING (15*28*2)

09263-15003-000 0926315003000

$12,97

Unit Price

WASHER

09160-15015-000

09160-15045-000

$6,97

Unit Price

GEAR, OIL PUMP DRIVE (NT:38)

16321-44001-000 1632144001000

Not available

OIL PUMP DRIVEN PIN
PIN

09261-06002-000 0926106002000

$2,97

Unit Price

CIRCLIP

08331-31389-000 0833131389000

Not available

ROD, PUSH RH
ROD, RH PUSH

23110-44111-000 2311044111000

$19,97

Unit Price

ROD, CLUTCH PUSH

23111-44111-000

23111-05A01-000

$20,97

Unit Price

OIL SEAL

09285-06011-000 0928506011000

$15,97

Unit Price

RETAINER, PUSH ROD OIL SEAL

23117-44101-000

23117-44102-000

$11,97

Unit Price

BOLT

01107-06127-000

01500-06127-000

$3,97

Unit Price

DISCONTINUE
SCREW ASSY, RELEASE

23200-44101-000 2320044101000

Not available

SCREW

09134-06010-000 0913406010000

$5,97

Unit Price

NUT

08310-22067-000

08310-00067-000

$3,97

Unit Price

SCREW

03111-06168-000 0311106168000

Not available

WASHER

08322-21067-000

08322-0106A-000

$3,97

Unit Price

CL REL ARM SPRING
SPRING

09443-08001-000 0944308001000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

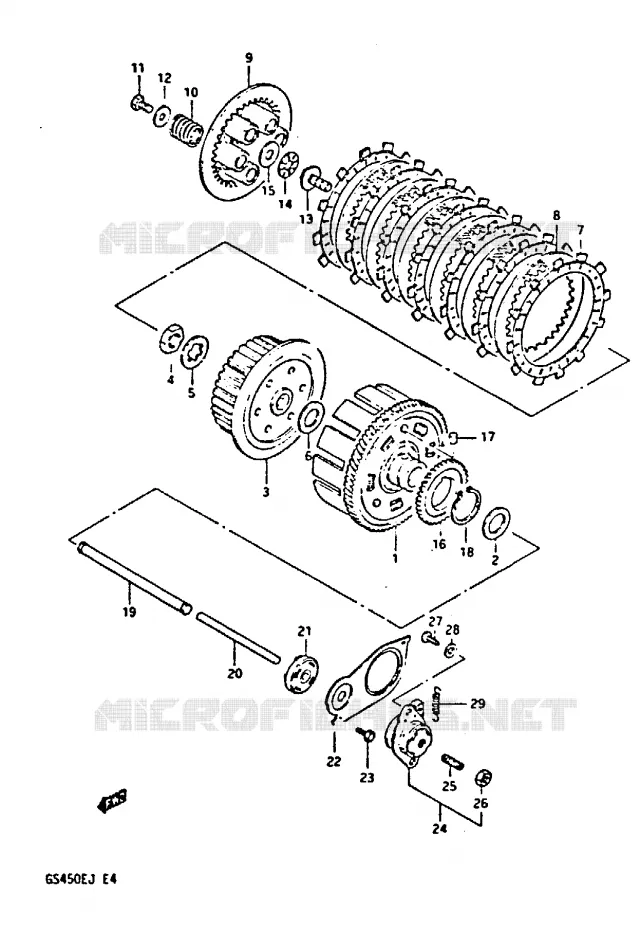

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki GSE-450 of GS-E. Let us know if you have any questions.
