CYLINDER HEAD COVER (MODEL D)

CYLINDER HEAD FOR SUZUKI GS 450 1982

CYLINDER

CYLINDER HEAD SET

11100-44110-000 1110044110000

Not available

CYLINDER HEAD SET

11100-44120-000 1110044120000

Not available

GUIDE, INTAKE VALVE

11115-45740-000 1111545740000

$51,97

Unit Price

DISCONTINUE
GUIDE, EXHAUST VALVE

11116-45740-000 1111645740000

Not available

RING, SNAP
RING, VALVE GUIDE

09381-10003-000 0938110003000

$6,97

Unit Price

CAM SFT HOUSING BOLT
BOLT

09103-06026-000 0910306026000

$2,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01517-06128-000

01550-06207-000

$3,97

Unit Price

GASKET

09168-06015-000

09168-06023-000

$2,97

Unit Price

DISCONTINUE

11141-44110-000

Not available

BOLT

01517-06305-000

01550-06303-000

$3,97

Unit Price

BOLT

01517-06308-000 0151706308000

Not available

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

GASKET

09168-10017-000 0916810017000

$4,97

Unit Price

SCREW, INTAKE PORT

02112-05088-000 0211205088000

Not available

GASKET(5.3X9.3X1.2)
GASKET

09168-05010-000 0916805010000

$2,97

Unit Price

CYLINDER HEAD PLUG
PLUG, CYLINDER HEAD SIDE

09241-23002-000 0924123002000

$13,97

Unit Price

PAD, CYLINDER
RUBBER PAD (ND)

11251-46150-000 1125146150000

$11,97

Unit Price

PLUG, SPARK(BR8ES)

09482-00121-000

09482-00348-000

$5,45

Unit Price

09482-00121
SPARK PLUG (NGK, B8ES)

09482-00091-000 0948200091000

Not available

SPARK PLUG (ND, W24ES-U)

09482-00196-000 0948200196000

Not available

GEAR, TACHO. DRIVEN (NT:10)

26431-45001-000 2643145001000

Not available

SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000 2644149000000

$30,97

Unit Price

BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000 2645145000000

$7,97

Unit Price

TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000 0928905002000

$16,97

Unit Price

LOCK PLATE SCREW
SCREW

09128-05101-000 0912805101000

$1,97

Unit Price

DISCONTINUE
PIPE, INTAKE

13110-44100-000 1311044100000

Not available

O RING

09280-40003-000

09280-40020-000

$7,97

Unit Price

SCREW

02112-06205-000

02112-0620A-000

$2,97

Unit Price

SCREW

02112-06208-000

02112-06207-000

$3,97

Unit Price

LOCK WASHER

08321-21065-000 0832121065000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

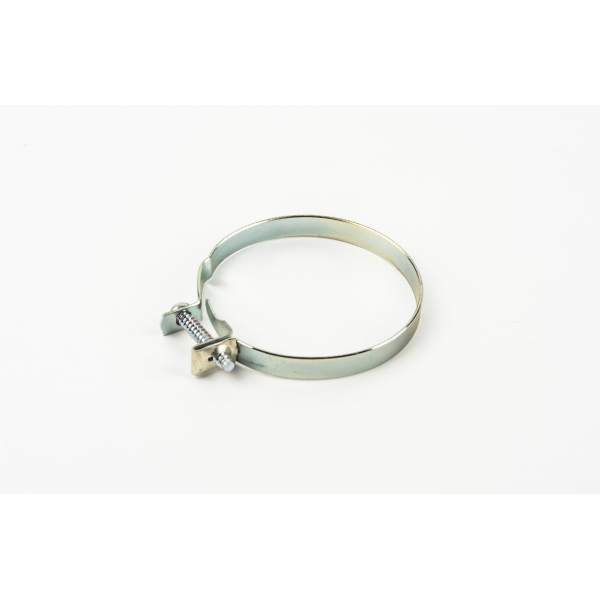

CLAMP

09402-54303-000 0940254303000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of GS. Let us know if you have any questions.
