FRONT FORK FOR SUZUKI RM-Z 450 2009

STEERING COLUMN (RM-Z450K8 / K9 / L0)

Item numbers

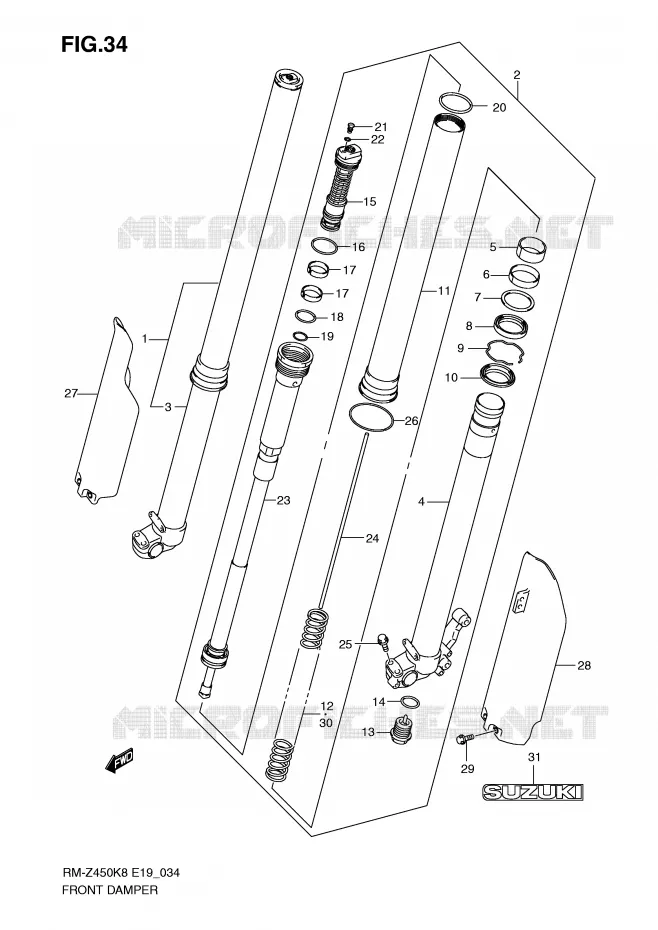

FRONT FORK Suzuki MOTO 450 RM-Z 2009 RM-Z450K9(E19)
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
12
13
14
15
15
16
17
17
17
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
30
30
30
31
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-28H10-000   5110328H10000

5110328H10000

Unit Price

1
DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-28H00-000   5110328H00000

5110328H00000
Not available
2
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-28H10-000   5110428H10000

5110428H10000

Unit Price

2
DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-28H00-000   5110428H00000

5110428H00000
Not available
3
TUBE, INNER, R
TUBE, INNER RH

51110-28H10-000   5111028H10000

5111028H10000

Unit Price

3
TUBE, INNER, R
TUBE, INNER RH

51110-35G30-000   5111035G30000

5111035G30000

Unit Price

4
TUBE, INNER, L
TUBE, INNER LH

51120-28H10-000   5112028H10000

5112028H10000

Unit Price

4
TUBE, INNER, L
TUBE, INNER LH

51120-35G30-000   5112035G30000

5112035G30000

Unit Price

5
BUSH
BUSH, GUIDE

51121-28H10-000   5112128H10000

5112128H10000

Unit Price

5
BUSH, SLIDE
BUSH, GUIDE

51121-36F00-000   5112136F00000

5112136F00000

Unit Price

6
BUSH, GUIDE

51167-28H10-000   5116728H10000

5116728H10000

Unit Price

6
BUSH, GUIDE

51167-36F00-000   5116736F00000

5116736F00000

Unit Price

7
SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

8
SEAL, OIL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

9
RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

10
SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

11
DISCONTINUE
TUBE, OUTER

51130-28H01-000   5113028H01000

5113028H01000
Not available
12
SPRING, FR(K=0.47)
SPRING, FRONT (K=0.46)

51171-28H00-000   5117128H00000

5117128H00000

Unit Price

12
SPRING, FR(K=0.5)
SPRING, FRONT (K=0.50)

51171-28H40-000   5117128H40000

5117128H40000

Unit Price

13
BOLT, CTR
BOLT, CENTER

51170-37FC0-000   5117037FC0000

5117037FC0000

Unit Price

14
O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

15
BOLT
BOLT, FORK

51351-28H00-000   5135128H00000

5135128H00000

Unit Price

15
BOLT, FORK

51351-28H10-000   5135128H10000

5135128H10000

Unit Price

16
O RING

51117-37F80-000   5111737F80000

5111737F80000

Unit Price

17
BUSH
BUSH, FORK BOLT SLIDE

51123-28H10-000   5112328H10000

5112328H10000

Unit Price

17
DISCONTINUE
BUSH, FORK BOLT SLIDE

51123-10H10-000   5112310H10000

5112310H10000
Not available
18
O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

19
O RING

51175-37F80-000   5117537F80000

5117537F80000

Unit Price

20
O RING

51118-37F80-000   5111837F80000

5111837F80000

Unit Price

21
BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

22
O RING, PLUG
O RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

23
DISCONTINUE
ROD, DAMPER

51190-28H00-000   5119028H00000

5119028H00000
Not available
23
ROD, DAMPER

51190-28H10-000   5119028H10000

5119028H10000
Not available
24
ROD, PUSH

51191-10H10-000   5119110H10000

5119110H10000

Unit Price

25
BOLT

51328-37F80-000   5132837F80000

5132837F80000

Unit Price

26
STOPPER, RING
RING STOPPER

51211-37FC0-000   5121137FC0000

5121137FC0000

Unit Price

27
PROTECTOR, FR FORK, R
PROTECTOR, RH

51501-28H00-000   5150128H00000

5150128H00000

Unit Price

28
PROTECTOR, FR FORK, L
PROTECTOR, LH

51511-28H00-000   5151128H00000

5151128H00000

Unit Price

29
BOLT (6X10)

09111-06098-000   0911106098000

0911106098000

Unit Price

30
SPRING, FR(K=0.46)
SPRING, FRONT (K=4.51N/MM)

51171-10H30-000   5117110H30000

5117110H30000

Unit Price

30
SPRING, FR(K=0.45)
SPRING, FRONT (K=4.41N/MM)

51171-28H10-000   5117128H10000

5117128H10000

Unit Price

30
SPRING, FR(K=0.49)
SPRING, FRONT (K=4.81N/MM)

51171-28H20-000   5117128H20000

5117128H20000

Unit Price

30
SPRING, FRONT (K=4.71N/MM)

51171-28H30-000   5117128H30000

5117128H30000
Not available
31
68661-29F01-DPZ
EMBLEM, \SUZUKI\

68661-29F00-DPZ   6866129F00DPZ

6866129F00DPZ
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of RM-Z. Let us know if you have any questions.
