IGNITION (RM-Z450L0 / L1)

ELECTRICAL (RM-Z450K8 / K9) FOR SUZUKI RM-Z 450 2009

ELECTRICAL (RM-Z450L0)

Item numbers

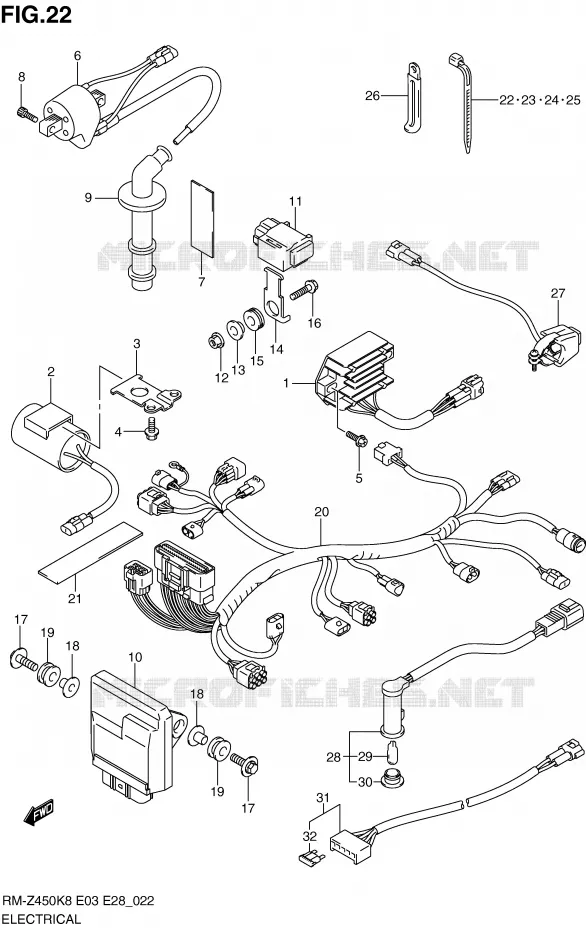

ELECTRICAL (RM-Z450K8/K9) Suzuki MOTO 450 RM-Z 2009 RM-Z450K9(E3/E28)
1
1
1
2
3
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
1
RECTIFIER ASSY

32800-28H00-000   3280028H00000

3280028H00000

Unit Price

1
RECTIFIER ASSY

32800-87K10-000   3280087K10000

3280087K10000

Unit Price

2
CONDENSER ASSY

33640-28H00-000   3364028H00000

3364028H00000

Unit Price

3
BRACKET, CONDENSER

33641-28H00-000   3364128H00000

3364128H00000

Unit Price

4
BOLT (6X10)

09103-06188-000   0910306188000

0910306188000

Unit Price

5
SCREW<br />BOLT
SCREW
BOLT

02162-0620C-000   021620620C000

021620620C000

Unit Price

5
SCREW
BOLT

02162-0625A-000   021620625A000

021620625A000

Unit Price

6
COIL ASSY, IGNITION

33410-35G10-000   3341035G10000

3341035G10000

Unit Price

7
PROTECTOR(30X80X1)
PROTECTOR, IGNITION COIL

33652-29F00-000   3365229F00000

3365229F00000

Unit Price

8
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

9
CAP ASSY, SPARK PLUG

33510-28H00-000   3351028H00000

3351028H00000

Unit Price

10
CONTROL UNIT, FI

32920-28H01-000   3292028H01000

3292028H01000

Unit Price

10
DISCONTINUE
CONTROL UNIT, FI

32920-28H20-000   3292028H20000

3292028H20000
Not available
11
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

12
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

13
SPACER (6.2X8.4X10.9)

09180-06331-000   0918006331000

0918006331000

Unit Price

14
DISCONTINUE
BRACKET, FUEL CUT

33961-28H00-000  

3396128H00000
Not available
15
CUSHION
CUSHION

09320-08501-000   0932008501000

0932008501000

Unit Price

16
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

17
BOLT (6X20)

09116-06182-000   0911606182000

0911606182000

Unit Price

18
SPACER (6.2X8.4X10.9)

09180-06331-000   0918006331000

0918006331000

Unit Price

19
GROMMET, GUIDE AIR, 8X

09320-08076-000  

09320-08517-000
 0932008076000

Unit Price

20
HARNESS, WIRING

36610-28H20-000   3661028H20000

3661028H20000

Unit Price

20
DISCONTINUE
HARNESS, WIRING

36610-28H00-000   3661028H00000

3661028H00000
Not available
21
PROTECTOR(20X90)X1.0<br />PROTECTOR, HARNESS
PROTECTOR(20X90)X1.0
PROTECTOR, HARNESS

33652-26E00-000   3365226E00000

3365226E00000

Unit Price

22
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

23
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

24
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

25
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

26
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

27
SWITCH ASSY, ENGINE STOP

37820-36E00-000   3782036E00000

3782036E00000

Unit Price

28
LAMP ASSY, FI INDICATOR

36380-28H00-000   3638028H00000

3638028H00000

Unit Price

29
BULB(12V21W)
BULB (12V 3.4W, T10)

09471-12028-000  

0947112028000
Not available
30
LENS (RED)

36321-28H00-000   3632128H00000

3632128H00000

Unit Price

31
WIRE, BATTERY

36890-28H00-000   3689028H00000

3689028H00000

Unit Price

32
FUSE (10A)
FUSE (10A)

09481-10101-000   0948110101000

0948110101000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (RM-Z450K8/K9) of your Suzuki of RM-Z. Let us know if you have any questions.
