Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST (RM-Z450L1)

FUEL TANK (RM-Z450K8 / K9 / L0) FOR SUZUKI RM-Z 450 2011

FUEL TANK (RM-Z450L1)

Item numbers

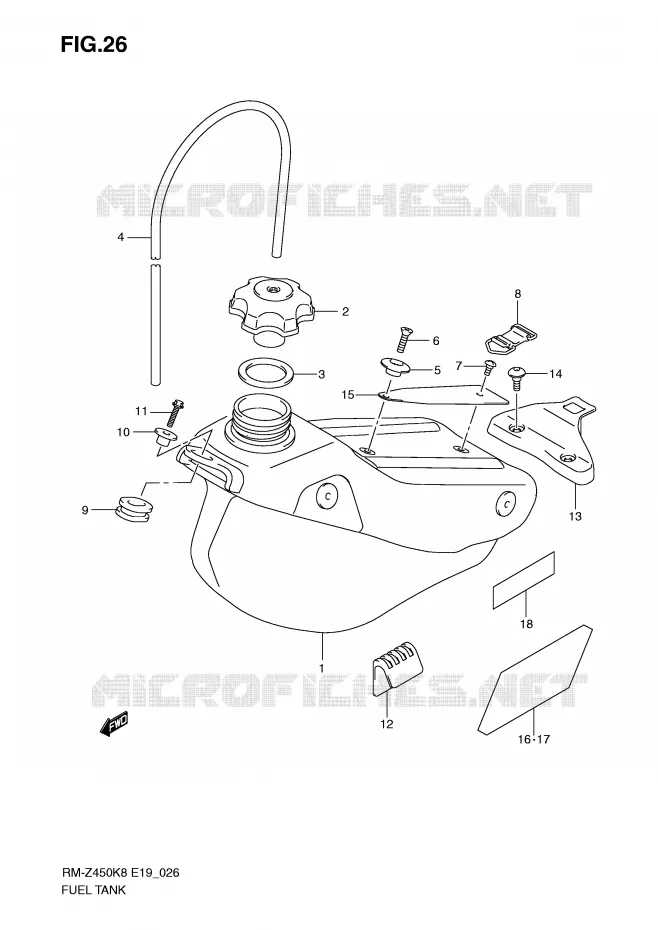

FUEL TANK (RM-Z450K8/K9/L0) Suzuki MOTO 450 RM-Z 2011 RM-Z450L1(E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
1
TANK, FUEL

44110-28H01-000   4411028H01000

4411028H01000

Unit Price

2
CAP, FUEL TANK FILLER
CAP, FUEL TANK

44210-37F00-000   4421037F00000

4421037F00000

Unit Price

3
GASKET, FUEL TANK FILLER CAP

44248-27C00-000  

44248-27C01-000
 4424827C00000

Unit Price

4
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

5
HOOK, SEAT FR
HOOK, SEAT FRONT

44132-37F10-000   4413237F10000

4413237F10000

Unit Price

6
SCREW
SCREW

02122-0620B-000   021220620B000

021220620B000

Unit Price

7
SCREW, FUEL TANK BAND
SCREW (6X13.5)

09139-06134-000   0913906134000

0913906134000

Unit Price

8
BAND, FUEL TANK RR
BAND, FUEL TANK

44560-27C00-000   4456027C00000

4456027C00000

Unit Price

9
CUSHION, FUEL TANK FR

44541-28H00-000  

44541-28H01-000
 4454128H00000

Unit Price

10
SPACER

44134-35G02-000   4413435G02000

4413435G02000

Unit Price

11
BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000   0910306213000

0910306213000

Unit Price

12
44543-49H01
CUSHION, TANK SIDE

44543-35G00-000   4454335G00000

4454335G00000
Not available
13
CUSHION, FUEL TANK RR

44542-28H10-000  

44542-28H11-000
 4454228H10000

Unit Price

13
DISCONTINUE
CUSHION, REAR

44542-28H00-000   4454228H00000

4454228H00000
Not available
14
BOLT
SCREW (5X13)

09139-05074-000   0913905074000

0913905074000

Unit Price

15
PROTECTOR, FUEL TANK

44280-28H00-000   4428028H00000

4428028H00000

Unit Price

16
PROTECTOR, RADIATOR, R
PROTECTOR, RH

17795-28H00-000   1779528H00000

1779528H00000

Unit Price

17
PROTECTOR, RADIATOR, L
PROTECTOR, LH

17796-28H00-000   1779628H00000

1779628H00000

Unit Price

18
PROTECTOR, RADIATOR
PROTECTOR, RADIAOTR

17797-28H00-000   1779728H00000

1779728H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (RM-Z450K8/K9/L0) of your Suzuki of RM-Z. Let us know if you have any questions.
