REAR DAMPER (RM-Z4501L2 E03)

REAR DAMPER (RM-Z4501L2 E28) FOR SUZUKI RM-Z 450 2012

SHOCK ABSORBER LINKAGE

Item numbers

DISCONTINUE
ABSORBER ASSY, RR SHOCK (RED)

62100-28H40-YKS 6210028H40YKS

Not available

DISCONTINUE
.SPRING (K=5.8)

62211-28H00-000 6221128H00000

Not available

.BEARING (16X22X12)

09263-16033-000 0926316033000

$26,97

Unit Price

SPACER, UPPER BRG RH
.SPACER, BEARING RH

62684-36F00-000 6268436F00000

$21,97

Unit Price

SPACER, UPPER BRG LH
.SPACER, BEARING LH

62685-36F00-000 6268536F00000

$18,97

Unit Price

OIL SEAL, 16X22X2.5
.SEAL (16X22X2.5)

09284-16005-000 0928416005000

$10,97

Unit Price

DISCONTINUE
.ROD, PISTON

62120-28H30-000 6212028H30000

Not available

.O RING SET

62150-28H30-000 6215028H30000

$131,97

Unit Price

.RING, STOPPER

62279-36E80-000 6227936E80000

$9,97

Unit Price

.ADJUSTER SET

62190-36F00-000 6219036F00000

$115,97

Unit Price

.SPRING SEAT SET

62220-36F00-000 6222036F00000

$83,97

Unit Price

.RING, STOPPER

62278-36E00-000 6227836E00000

$11,97

Unit Price

CAP, AIR VALVE
.CAP

52194-46686-000 5219446686000

$5,97

Unit Price

.BLADDER

62273-36F00-000 6227336F00000

$87,97

Unit Price

.CAP, CHAMBER

62275-28H30-000 6227528H30000

$63,97

Unit Price

.BOLT, PLUG

62130-28H30-000 6213028H30000

$151,97

Unit Price

.O RING

62131-28E00-000 6213128E00000

$8,97

Unit Price

.O RING

51174-36EB0-000 5117436EB0000

$8,97

Unit Price

BOLT, RR SHOCK ABSORBER UPR
BOLT, RR SHOCK ABS UPPER

62311-28H00-000 6231128H00000

$11,97

Unit Price

NUT

09159-10122-000 0915910122000

$10,97

Unit Price

BOLT, RR SHOCK ABSORBER LWR
BOLT, RR SHOCK ABS LOWER

62221-37F30-000 6222137F30000

$9,97

Unit Price

NUT

09159-10067-000 0915910067000

$9,97

Unit Price

SPRING, RR(K=5.4)
SPRING (SOFT K=5.4)

62211-10H00-000 6221110H00000

$481,97

Unit Price

SPRING(K:5.2)
SPRING (SOFT K=5.2)

62211-10H10-000 6221110H10000

$362,97

Unit Price

SPRING(K:5.9)
SPRING (HARD K=5.9)

62211-35G40-000 6221135G40000

$477,97

Unit Price

SPRING, RR(K=5.6)
SPRING (SOFT K=5.6)

62211-37FM0-000 6221137FM0000

$529,97

Unit Price

SPRING (HARD K=6.0)

62211-28H30-000 6221128H30000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

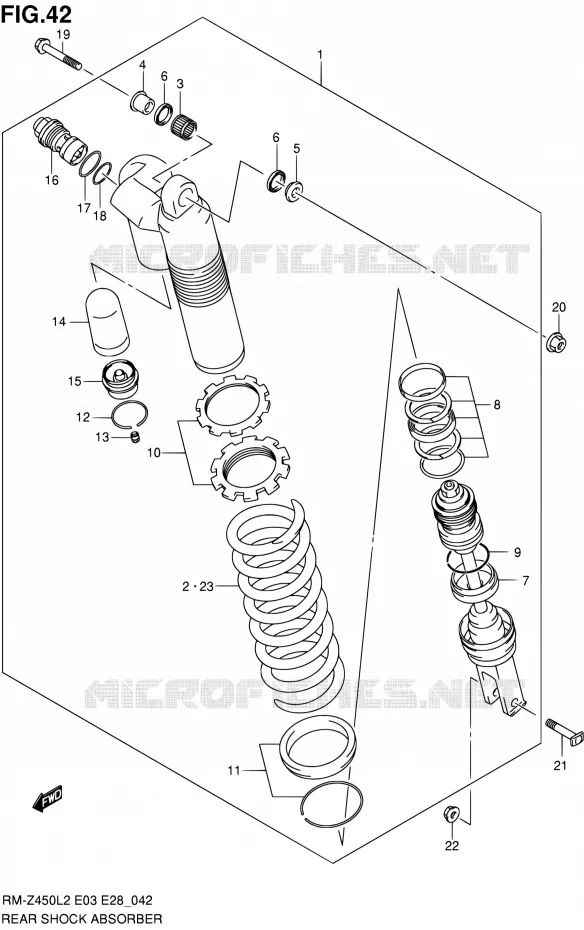

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR DAMPER (RM-Z4501L2 E28) of your Suzuki of RM-Z. Let us know if you have any questions.
