STEERING COLUMN

SWINGARM FOR SUZUKI RM-Z 450 2012

FRONT FORK

Item numbers

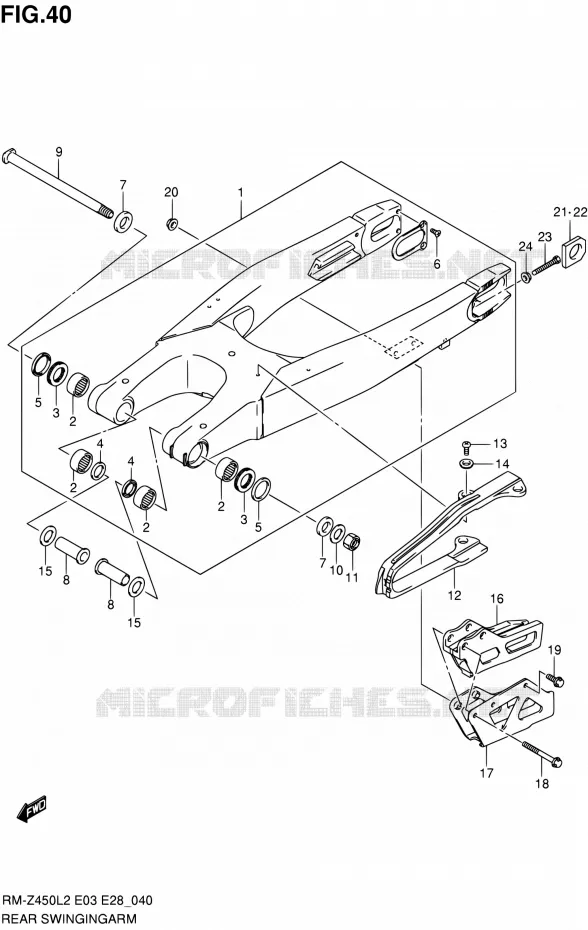

SWINGARM Suzuki MOTO 450 RM-Z 2012 RM-Z450 L2 (E03,E28,E33)
1
2
2
2
2
3
3
4
4
5
5
6
7
7
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
SWINGINGARM ASSY, RR

61000-28H10-000  

61000-28H20-000
 6100028H10000

Unit Price

2
.BEARING (22X29X15)

09263-22070-000   0926322070000

0926322070000

Unit Price

3
BEARING
.BEARING (22X35X2)

09263-22064-000   0926322064000

0926322064000

Unit Price

4
SEAL, OIL

09285-22001-000  

09285-22006-000
 0928522001000

Unit Price

5
SEAL, RR SWGARM PIVOT OUTER
.SEAL, OUTER (29.2X37X4)

61262-36E00-000   6126236E00000

6126236E00000

Unit Price

6
.SCREW

02122-0410B-000   021220410B000

021220410B000

Unit Price

7
SPACER, RR SWGARM PIVOT OUTER
SPACER, PIVOT OUTER

61251-36E01-000   6125136E01000

6125136E01000

Unit Price

8
SPACER, SWGARM PIVOT INNER
SPACER, PIVOT INNER

61252-37F01-000   6125237F01000

6125237F01000

Unit Price

9
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-35G00-000   6121135G00000

6121135G00000

Unit Price

10
WASHER

08322-0116B-000   083220116B000

083220116B000

Unit Price

11
09159-16007

09159-16007-000  

0915916007000
Not available
12
BUFFER, CHAIN TOUCH DEFENSE

61273-35G10-000   6127335G10000

6127335G10000

Unit Price

13
SCREW

02112-0508B-000   021120508B000

021120508B000

Unit Price

14
WASHER

09169-05022-000   0916905022000

0916905022000

Unit Price

15
WASHER

08211-22365-000   0821122365000

0821122365000

Unit Price

16
GUIDE, CHAIN

61341-35G10-000   6134135G10000

6134135G10000

Unit Price

17
PLATE, CHAIN GUIDE
PLATE, GUIDE OUTER

61342-37F00-000   6134237F00000

6134237F00000

Unit Price

18
BOLT, CRANKCASE
BOLT (6X45)

09103-06242-000   0910306242000

0910306242000

Unit Price

19
BOLT
BOLT (6X12)

09103-06233-000   0910306233000

0910306233000

Unit Price

20
NUT
NUT

08316-1006B-000   083161006B000

083161006B000

Unit Price

21
WASHER, CHAIN ADJUSTER RH

61445-28H11-000   6144528H11000

6144528H11000

Unit Price

22
WASHER, CHAIN ADJUSTER LH

61446-35G01-000   6144635G01000

6144635G01000

Unit Price

23
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

24
NUT

09159-08034-000   0915908034000

0915908034000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of RM-Z. Let us know if you have any questions.
