RADIATOR (RM-Z450K8 / K9)

RADIATOR (RM-Z450L0) FOR SUZUKI RM-Z 450 2012

RADIATOR (RM-Z450L1)

Item numbers

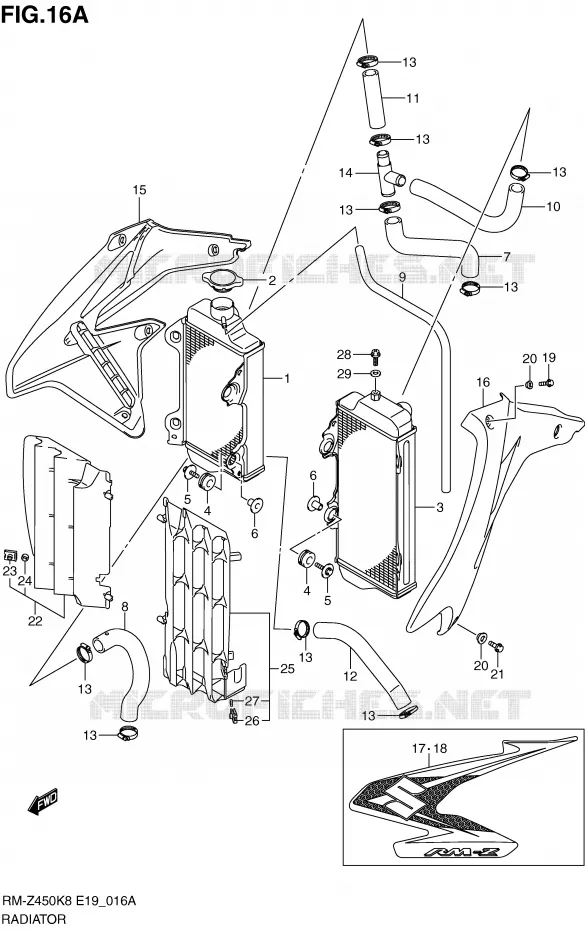

RADIATOR (RM-Z450L0) Suzuki MOTO 450 RM-Z 2012 RM-Z450L1(E19)
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
1
RADIATOR, WATER, R

17710-28H20-000  

17710-28H21-000
 1771028H20000

Unit Price

2
CAP, RADIATOR

17730-12C20-000  

17730-08J00-000
 1773012C20000

Unit Price

3
RADIATOR, WATER, L
RADIATOR, LH

17720-28H20-000   1772028H20000

1772028H20000

Unit Price

4
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

5
BOLT, MUFFLER MTG
BOLT (6X25)

09116-06186-000   0911606186000

0911606186000

Unit Price

6
SPACER
SPACER (6.5X10.5X14.1)

09180-06243-000   0918006243000

0918006243000

Unit Price

7
HOSE, RADIATOR INLET
HOSE, INLET

17851-28H00-000   1785128H00000

1785128H00000

Unit Price

8
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-28H00-000   1785228H00000

1785228H00000

Unit Price

9
HOSE, 5X8X2000

09351-50803-00A  

09351-50803-00B
 093515080300A

Unit Price

10
HOSE, RADIATOR JOINT UPR NO.1
HOSE, JOINT UPPER NO.1

17853-28H00-000   1785328H00000

1785328H00000

Unit Price

11
HOSE, RADIATOR JOINT UPR NO.2
HOSE, JOINT UPPER NO.2

17854-28H00-000   1785428H00000

1785428H00000

Unit Price

12
HOSE, RADIATOR JOINT LWR
HOSE, JOINT LOWER

17855-28H00-000   1785528H00000

1785528H00000

Unit Price

13
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

14
JOINT, RADIATOR HOSE

17857-35G10-000   1785735G10000

1785735G10000

Unit Price

15
COVER, RADIATOR, R
COVER, RADIATOR, RH (YELLOW/BLACK)

17761-28H02-GY8   1776128H02GY8

1776128H02GY8

Unit Price

16
COVER, RADIATOR, L
COVER, RADIATOR, LH (YELLOW/BLACK)

17762-28H02-GY8   1776228H02GY8

1776228H02GY8

Unit Price

17
DISCONTINUE
TAPE, RADIATOR COVER, RH

68660-28H20-HBP   6866028H20HBP

6866028H20HBP
Not available
18
DISCONTINUE
TAPE, RADIATOR COVER, LH

68670-28H20-HBP   6867028H20HBP

6867028H20HBP
Not available
19
BOLT
BOLT (6X12)

09103-06233-000   0910306233000

0910306233000

Unit Price

20
47191-28H00
WASHER, RADIATOR COVER

47191-10H01-000  

4719110H01000
Not available
21
BOLT (6X16)

09103-06234-000   0910306234000

0910306234000

Unit Price

22
LOUVER, RADIATOR, R
LOUVER, RADIATOR RH

17801-28H10-000   1780128H10000

1780128H10000

Unit Price

23
NUT

09148-06017-000   0914806017000

0914806017000

Unit Price

24
SPACER (6.2X10X2.2)

09180-06129-000   0918006129000

0918006129000
Not available
25
LOUVER, RADIATOR, L
LOUVER, RADIATOR LH

17802-28H10-000   1780228H10000

1780228H10000

Unit Price

26
NUT

09148-06017-000   0914806017000

0914806017000

Unit Price

27
SPACER (6.2X10X2.2)

09180-06129-000   0918006129000

0918006129000
Not available
28
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

29
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR (RM-Z450L0) of your Suzuki of RM-Z. Let us know if you have any questions.
