LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI RM-Z 450 2012

STEERING COLUMN

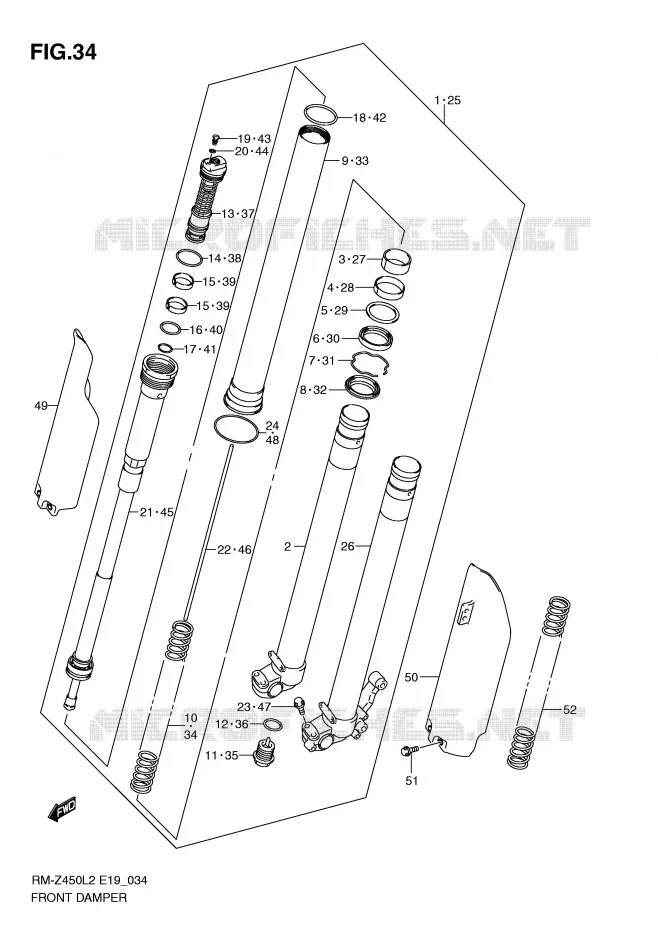

FRONT FORK Suzuki MOTO 450 RM-Z 2012 RM-Z450L2(E19)
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-28H10-000   5110328H10000

5110328H10000

Unit Price

2
TUBE, INNER, R
TUBE, INNER RH

51110-28H10-000   5111028H10000

5111028H10000

Unit Price

3
BUSH
BUSH, GUIDE

51121-28H10-000   5112128H10000

5112128H10000

Unit Price

4
BUSH, GUIDE

51167-28H10-000   5116728H10000

5116728H10000

Unit Price

5
SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

6
SEAL, OIL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

7
RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

8
SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

9
TUBE, OUTER

51130-28H01-000   5113028H01000

5113028H01000

Unit Price

10
SPRING, FRONT (K=0.48)

51171-28H30-000   5117128H30000

5117128H30000
Not available
11
BOLT, CTR
BOLT, CENTER

51170-37FC0-000   5117037FC0000

5117037FC0000

Unit Price

12
O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

13
BOLT, FORK

51351-28H10-000   5135128H10000

5135128H10000

Unit Price

14
O RING

51117-37F80-000   5111737F80000

5111737F80000

Unit Price

15
BUSH
BUSH, FORK BOLT SLIDE

51123-28H10-000   5112328H10000

5112328H10000

Unit Price

16
O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

17
O RING

51175-37F80-000   5117537F80000

5117537F80000

Unit Price

18
O RING

51118-37F80-000   5111837F80000

5111837F80000

Unit Price

19
BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

20
O RING, PLUG
O RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

21
DAMPER

51190-28H10-000   5119028H10000

5119028H10000
Not available
22
ROD, PUSH

51191-10H10-000   5119110H10000

5119110H10000

Unit Price

23
BOLT

51328-37F80-000   5132837F80000

5132837F80000

Unit Price

24
STOPPER, RING
RING STOPPER

51211-37FC0-000   5121137FC0000

5121137FC0000

Unit Price

25
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-28H10-000   5110428H10000

5110428H10000

Unit Price

26
TUBE, INNER, L
TUBE, INNER LH

51120-28H10-000   5112028H10000

5112028H10000

Unit Price

27
BUSH
BUSH, GUIDE

51121-28H10-000   5112128H10000

5112128H10000

Unit Price

28
BUSH, GUIDE

51167-28H10-000   5116728H10000

5116728H10000

Unit Price

29
SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

30
SEAL, OIL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

31
RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

32
SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

33
TUBE, OUTER

51130-28H01-000   5113028H01000

5113028H01000

Unit Price

34
SPRING, FRONT (K=0.48)

51171-28H30-000   5117128H30000

5117128H30000
Not available
35
BOLT, CTR
BOLT, CENTER

51170-37FC0-000   5117037FC0000

5117037FC0000

Unit Price

36
O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

37
BOLT, FORK

51351-28H10-000   5135128H10000

5135128H10000

Unit Price

38
O RING

51117-37F80-000   5111737F80000

5111737F80000

Unit Price

39
BUSH
BUSH, FORK BOLT SLIDE

51123-28H10-000   5112328H10000

5112328H10000

Unit Price

40
O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

41
O RING

51175-37F80-000   5117537F80000

5117537F80000

Unit Price

42
O RING

51118-37F80-000   5111837F80000

5111837F80000

Unit Price

43
BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

44
O RING, PLUG
O RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

45
DAMPER

51190-28H10-000   5119028H10000

5119028H10000
Not available
46
ROD, PUSH

51191-10H10-000   5119110H10000

5119110H10000

Unit Price

47
BOLT

51328-37F80-000   5132837F80000

5132837F80000

Unit Price

48
STOPPER, RING
RING STOPPER

51211-37FC0-000   5121137FC0000

5121137FC0000

Unit Price

49
PROTECTOR, FR FORK, R

51501-28H20-000  

51501-28H21-000
 5150128H20000

Unit Price

50
PROTECTOR, FR FORK, L

51511-28H20-000  

51510-28H30-000
 5151128H20000

Unit Price

51
BOLT (6X10)

09111-06098-000   0911106098000

0911106098000

Unit Price

52
SPRING, FR(K=0.46)
SPRING, FRONT (SOFT K=0.46)

51171-10H30-000   5117110H30000

5117110H30000

Unit Price

52
SPRING, FR(K=0.5)
SPRING, FRONT (HARD K=0.50)

51171-28H40-000   5117128H40000

5117128H40000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 450 RM-Z 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 450 RM-Z 2012

Select your Suzuki 2012 model

450 RM-Z 2012 RM-Z450L2(E19)

Suzuki RM-Z

Displacement: 450 cc
Year: 2012
Model code RM-Z450L2(E19)
