MUFFLER

OIL PUMP FOR SUZUKI RM-Z 450 2016

FUEL PUMP

Item numbers

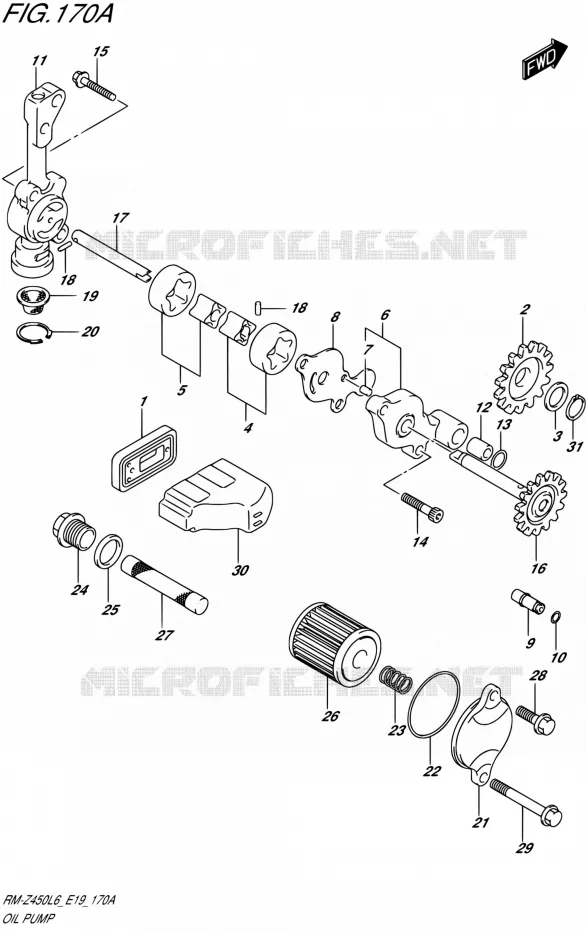

OIL PUMP Suzuki MOTO 450 RM-Z 2016 RM-Z450 L6 (E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
VALVE ASSY, OIL REED

13150-28H10-000   1315028H10000

1315028H10000

Unit Price

2
GEAR, OIL PUMP IDLE
GEAR, OIL PUMP IDLE (NT:15)

16321-28H00-000   1632128H00000

1632128H00000

Unit Price

3
SHIM, 12X18X1.0

09181-12130-000  

09181-12139-000
 0918112130000

Unit Price

4
ROTOR SET, OIL PUMP NO.1

16410-35G00-000   1641035G00000

1641035G00000

Unit Price

5
ROTOR SET, OIL PUMP
ROTOR SET, OIL PUMP NO.2

16410-45G00-000   1641045G00000

1641045G00000

Unit Price

6
COVER, OIL PUMP NO.1

16430-28H00-000   1643028H00000

1643028H00000

Unit Price

7
.PIN
.PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

8
PLATE, OIL PUMP NO.1

16432-35G10-000   1643235G10000

1643235G10000

Unit Price

9
VALVE ASSY, OIL RELIEF

16440-28H00-000   1644028H00000

1644028H00000

Unit Price

10
O RING (D:1.2,ID:4.7)
O RING (D:1.2, ID:4.7)

09280-05007-000   0928005007000

0928005007000

Unit Price

11
COVER, OIL PUMP NO.2

16450-28H10-000   1645028H10000

1645028H10000

Unit Price

12
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

13
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

14
BOLT
BOLT

07130-0520B-000   071300520B000

071300520B000

Unit Price

15
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

16
SHAFT, OIL PUMP DRIVEN GEAR

16440-35G10-000   1644035G10000

1644035G10000

Unit Price

17
SHAFT, OIL PUMP NO.2

16443-28H00-000   1644328H00000

1644328H00000

Unit Price

18
ROTOR DRIVEN PIN**S1
PIN (2.5X11.8)

09261-02008-000   0926102008000

0926102008000

Unit Price

19
STRAINER, OIL PUMP NO.2

16530-28H00-000   1653028H00000

1653028H00000

Unit Price

20
CIRCLIP

09381-19003-000   0938119003000

0938119003000

Unit Price

21
CAP, ENG OIL FILTER OUTER
CAP, ENGINE OIL FILTER OUTER

16315-35G30-000   1631535G30000

1631535G30000

Unit Price

22
O RING

09280-39001-000  

09280-39002-000
 0928039001000

Unit Price

23
SPRING, CLUTCH
SPRING

09440-10038-000   0944010038000

0944010038000

Unit Price

24
CAP, ENG OIL STRAINER
CAP, ENGINE OIL STRAINER

16316-10H01-000   1631610H01000

1631610H01000

Unit Price

25
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

26
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-35G00-000   1651035G00000

1651035G00000

Unit Price

27
STRAINER, ENGINE OIL

16520-10H10-000   1652010H10000

1652010H10000

Unit Price

28
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

29
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

30
GUIDE, OIL REED VALVE

13158-28H00-000   1315828H00000

1315828H00000

Unit Price

31
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 450 RM-Z 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 450 RM-Z 2016

Select your Suzuki 2016 model

450 RM-Z 2016 RM-Z450 L6 (E19)

Suzuki RM-Z

Displacement: 450 cc
Year: 2016
Model code RM-Z450 L6 (E19)
