Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

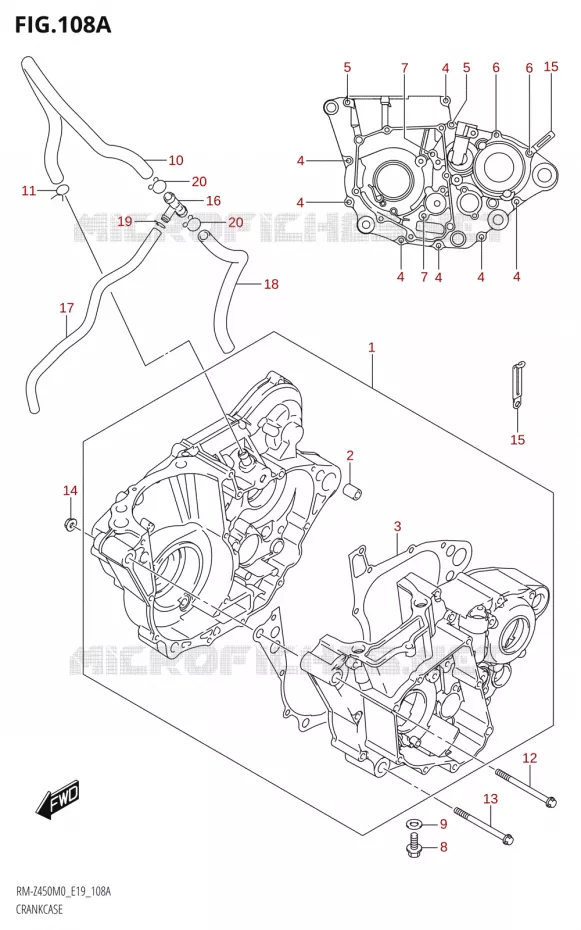

CASING FOR SUZUKI RM-Z 450 2020

CASING

Item numbers
CASING Suzuki MOTO 450 RM-Z 2020 RM-Z450 M0 (E19)
1
2
3
4
4
4
4
4
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
20
1
CRANKCASE SET

11301-28890-000   1130128890000

1130128890000

Unit Price

2
.PIN
.PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

3
GASKET, CRANKCASE

11481-28H00-000   1148128H00000

1148128H00000

Unit Price

4
BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

5
BOLT

01547-0665A-000   015470665A000

015470665A000

Unit Price

6
BOLT

01547-0675A-000   015470675A000

015470675A000

Unit Price

7
BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

8
BOLT
BOLT (8X20)

09103-08393-000   0910308393000

0910308393000

Unit Price

9
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

10
HOSE, BREATHER NO.1

11332-49H41-000   1133249H41000

1133249H41000

Unit Price

11
CLAMP<br />CLIP
CLAMP
CLIP

09401-13301-000   0940113301000

0940113301000

Unit Price

12
BOLT (10X130)

09103-10464-000   0910310464000

0910310464000

Unit Price

13
BOLT(10X125)
BOLT, ENG MTG LOWER (10X125)

09103-10446-000   0910310446000

0910310446000

Unit Price

14
NUT

09159-10122-000   0915910122000

0915910122000

Unit Price

15
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

16
JOINT, BREATHER HOSE

11331-28H00-000   1133128H00000

1133128H00000

Unit Price

17
HOSE, BREATHER NO.3

11334-49H01-000   1133449H01000

1133449H01000

Unit Price

18
HOSE, BREATHER NO.2

09352-90134-260   0935290134260

0935290134260

Unit Price

19
CLIP

09401-10410-000   0940110410000

0940110410000

Unit Price

20
DISCONTINUE

09401-13102-000  

0940113102000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki RM-Z 450 of RM-Z. Let us know if you have any questions.
