TAIL LIGHT (RMX450ZL1 E33)

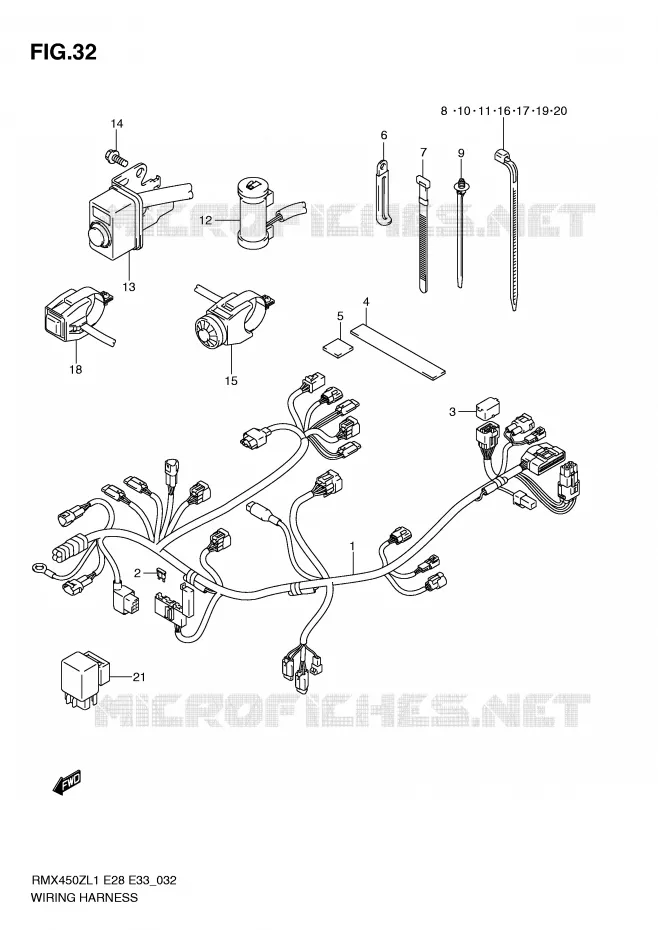

WIRING HARNESS FOR SUZUKI RMX-Z 450 2011

* CATALOG PREFACE *

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-02J00-000

Not available

FUSE (15A)

09481-15101-000 0948115101000

$2,97

Unit Price

CAP, TS

36654-06J00-000

36654-06J01-000

$14,97

Unit Price

PROTECTOR, WIRING HARNESS
PROTECTOR (15X100X0.13)

36611-02J00-000 3661102J00000

$4,97

Unit Price

PROTECTOR (20X20X1)

36920-23H10-000 3692023H10000

Not available

CLAMP
CLAMP (L:135)

09404-06435-000 0940406435000

$5,97

Unit Price

BAND, WIRING HARNESS

09407-10403-000

09407-11401-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$4,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$7,97

Unit Price

DISCONTINUE
LAMP ASSY, FUEL

36380-02J00-000

Not available

SWITCH ASSY, IGNITION

37110-02J00-000 3711002J00000

$138,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

SWITCH ASSY, STARTER MOTOR

37310-02J00-000 3731002J00000

$82,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

SWITCH ASSY, ENGINE STOP

37820-36E00-000 3782036E00000

$59,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

38740-39G10
RELAY ASSY, HEADLAMP

38740-39G00-000 3874039G00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of RMX-Z. Let us know if you have any questions.
