Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI RMX 450 2016

CLUTCH

Item numbers

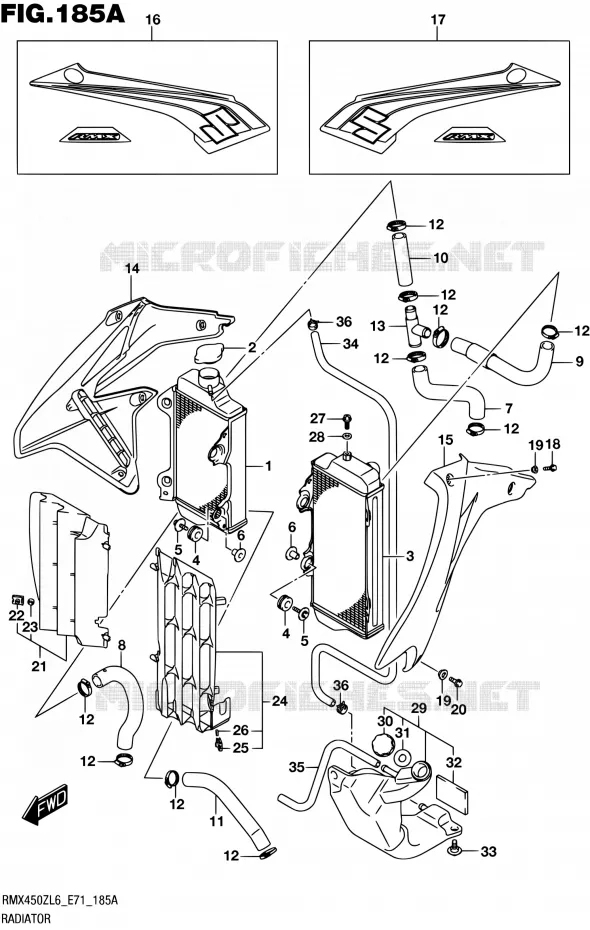

RADIATOR Suzuki MOTO 450 RMX 2016 RMX450Z L6 (E71)
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
1
RADIATOR, WATER, R
RADIATOR, RH

17710-28H21-000   1771028H21000

1771028H21000

Unit Price

2
CAP,RADIATOR<br />CAP, RADIATOR (1.1)
CAP, RADIATOR
CAP, RADIATOR (1.1)

17730-08J00-000   1773008J00000

1773008J00000

Unit Price

3
RADIATOR, WATER, L
RADIATOR, LH

17720-28H20-000   1772028H20000

1772028H20000

Unit Price

4
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

5
BOLT, MUFFLER MTG
BOLT (6X25)

09116-06186-000   0911606186000

0911606186000

Unit Price

6
SPACER
SPACER (6.5X10.5X14.1)

09180-06243-000   0918006243000

0918006243000

Unit Price

7
HOSE, RADIATOR INLET
HOSE, INLET

17851-28H00-000   1785128H00000

1785128H00000

Unit Price

8
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-28H00-000   1785228H00000

1785228H00000

Unit Price

9
HOSE, RADIATOR JOINT UPR NO.1
HOSE, JOINT UPPER NO.1

17853-28H10-000   1785328H10000

1785328H10000

Unit Price

10
HOSE, RADIATOR JOINT UPR NO.2
HOSE, JOINT UPPER NO.2

17854-28H00-000   1785428H00000

1785428H00000

Unit Price

11
HOSE, RADIATOR JOINT LWR
HOSE, JOINT LOWER

17855-28H00-000   1785528H00000

1785528H00000

Unit Price

12
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

13
JOINT, RADIATOR HOSE

17860-02J00-000   1786002J00000

1786002J00000
Not available
14
COVER, RADIATOR, R
COVER, RADIATOR, RH (YELLOW/BLACK)

17761-28H02-GY8   1776128H02GY8

1776128H02GY8

Unit Price

15
COVER, RADIATOR, L
COVER, RADIATOR, LH (YELLOW/BLACK)

17762-28H02-GY8   1776228H02GY8

1776228H02GY8

Unit Price

16
TAPE, RADIATOR COVER, RH

68110-02J20-A72   6811002J20A72

6811002J20A72
Not available
17
TAPE, RADIATOR COVER, LH

68120-02J20-A72   6812002J20A72

6812002J20A72
Not available
18
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

19
WASHER, FUEL TANK COVER
WASHER, RADIATOR COVER

47191-02J00-000   4719102J00000

4719102J00000

Unit Price

20
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

21
LOUVER, RADIATOR, R
LOUVER, RADIATOR, RH

17801-28H10-000   1780128H10000

1780128H10000

Unit Price

22
.NUT

09148-06017-000   0914806017000

0914806017000

Unit Price

23
.SPACER (6.2X10X2.2)

09180-06129-000   0918006129000

0918006129000
Not available
24
LOUVER, RADIATOR, L
LOUVER, RADIATOR, LH

17802-28H10-000   1780228H10000

1780228H10000

Unit Price

25
.NUT

09148-06017-000   0914806017000

0914806017000

Unit Price

26
.SPACER (6.2X10X2.2)

09180-06129-000   0918006129000

0918006129000
Not available
27
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

28
GASKET(6.4X11.5X0.84)<br />GASKET (6.4X11.5X0.8)
GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000   0916806026000

0916806026000

Unit Price

29
TANK ASSY, RESERVOIR

17910-02J00-000   1791002J00000

1791002J00000

Unit Price

30
CAP, WATER RESERVOIR TANK
.CAP

17931-02J00-000   1793102J00000

1793102J00000

Unit Price

31
GASKET, RSVR TANK CAP
.GASKET

17932-02J00-000   1793202J00000

1793202J00000

Unit Price

32
.CUSHION

17912-02J00-000   1791202J00000

1791202J00000

Unit Price

33
BOLT

17913-02J00-000   1791302J00000

1791302J00000
Not available
34
HOSE, RESERVOIR TANK INLET
HOSE, TANK INLET

17981-02J00-000   1798102J00000

1798102J00000

Unit Price

35
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

36
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
