HEADLIGHT

TAIL LIGHT FOR SUZUKI KINGQUAD 450 2008

WIRING HARNESS

Item numbers

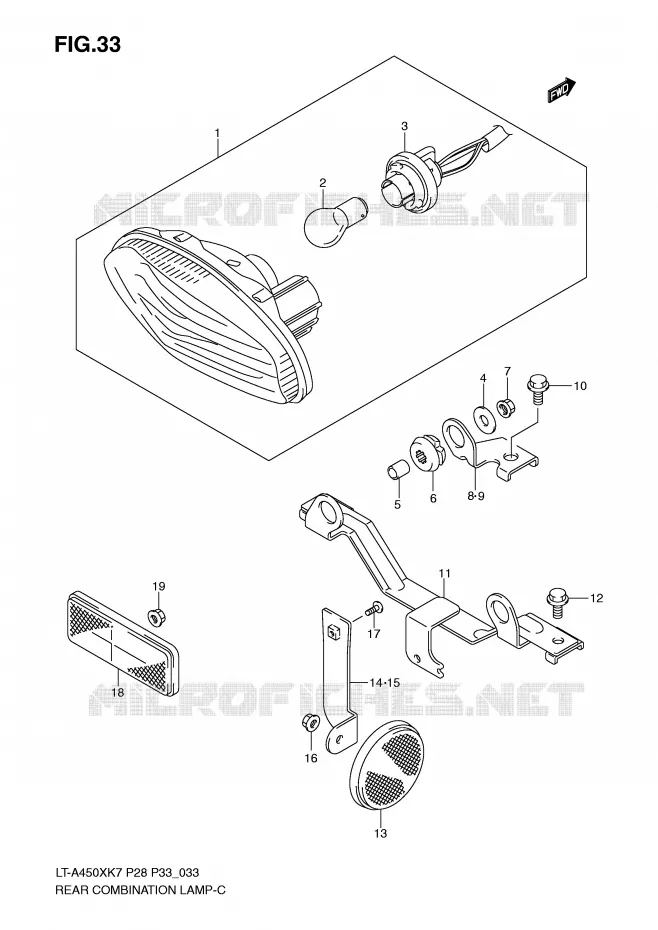

TAIL LIGHT Suzuki QUAD 450 KINGQUAD 2008 LT-A450XZK8(P28/P33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-31G00-000   3571031G00000

3571031G00000

Unit Price

2
BULB(12V1.4W G30)

09471-12128-000  

09471-12083-000
 0947112128000

Unit Price

3
SOCKET, BULB
SOCKET & CORD

35718-03G30-000   3571803G30000

3571803G30000

Unit Price

4
WASHER 6.5X10X1.2<br />WASHER, REAR COMB LAMP
WASHER 6.5X10X1.2
WASHER, REAR COMB LAMP

09160-06077-000   0916006077000

0916006077000

Unit Price

5
SPACER, 6.5X9X10.5
SPACER, REAR COMB

09180-06264-000   0918006264000

0918006264000

Unit Price

6
CUSHION
CUSHION, REAR COMB

09320-09018-000   0932009018000

0932009018000

Unit Price

7
NUT<br />NUT, REAR COMB
NUT
NUT, REAR COMB

08316-1006B-000   083161006B000

083161006B000

Unit Price

8
BRACKET, RR LAMP, R
BRACKET, REAR COMB LAMP, R

35726-31G40-000   3572631G40000

3572631G40000

Unit Price

9
BRACKET, RR LAMP, L
BRACKET, REAR COMB LAMP, L

35726-31G50-000   3572631G50000

3572631G50000

Unit Price

10
BOLT
BOLT, REAR COMB BRACKET

01550-0612A-000   015500612A000

015500612A000

Unit Price

11
BRACKET, RR COMBINATION LAMP
BRACKET, REAR COMB

35726-31G10-000   3572631G10000

3572631G10000

Unit Price

12
BOLT
BOLT, REAR COMB BRACKET

01550-0612A-000   015500612A000

015500612A000

Unit Price

13
REFLECTOR ASSY, RR SIDE
REFLECTOR ASSY, REAR SIDE

35970-14A20-000   3597014A20000

3597014A20000

Unit Price

14
BRACKET, RR SIDE RR, R
BRACKET, REAR SIDE RR, R

35975-31G00-000   3597531G00000

3597531G00000

Unit Price

15
BRACKET, RR SIDE RR, L
BRACKET, REAR SIDE RR, L

35976-31G00-000   3597631G00000

3597631G00000

Unit Price

16
NUT<br />NUT, RR SIDE RR BKT
NUT
NUT, RR SIDE RR BKT

08316-1005B-000   083161005B000

083161005B000

Unit Price

17
SCREW 5X8
SCREW, RR SIDE RR BKT (5X8)

09125-05073-000   0912505073000

0912505073000

Unit Price

18
REFLECTOR ASSY,RR<br />REFLECTOR ASSY, REAR
REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

19
NUT<br />NUT, REAR RR
NUT
NUT, REAR RR

08316-1005B-000   083161005B000

083161005B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 450 KINGQUAD 2008

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 450 KINGQUAD 2008

Select your Suzuki 2008 model

450 KINGQUAD 2008 LT-A450XZK8(P28/P33)

Suzuki KINGQUAD

Displacement: 450 cc
Year: 2008
Model code LT-A450XZK8(P28 / P33)
